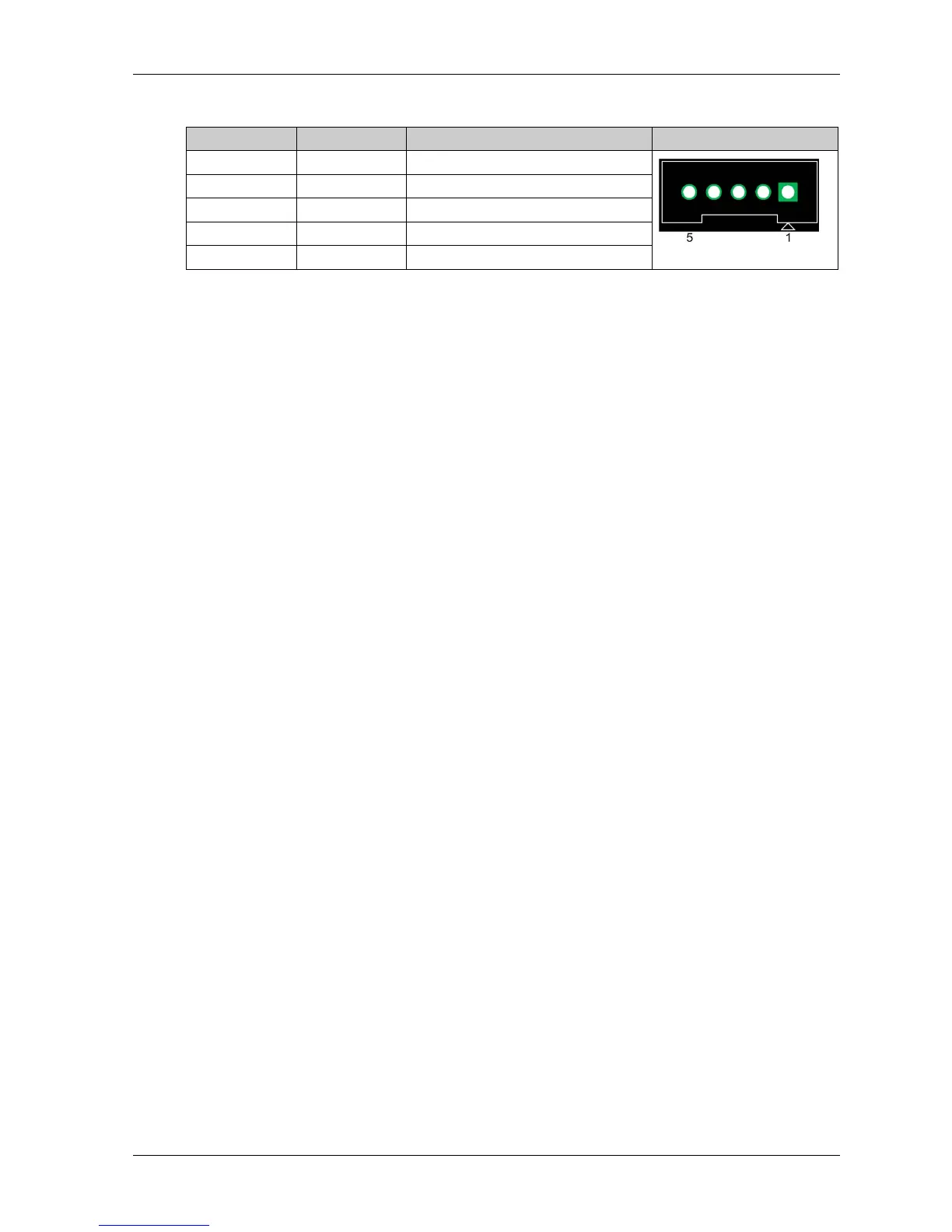

The table describes the SATA power connector:
Pin Signal Description CN13
1 +V3.3 SATA SATA power output 3.3 V/1 A
2 +V5 SATA SATA power output 5 V/1 A
3 +V12 SATA SATA power output 12 V/0.5 A
4GNDGND
5GNDGND
