Ethernet IEEE Interface Module Description
Introduction
The PFXZPBMPRE2 is categorized as industrial communication with IEEE protocol module. It is
compatible with the mini PCIe card.

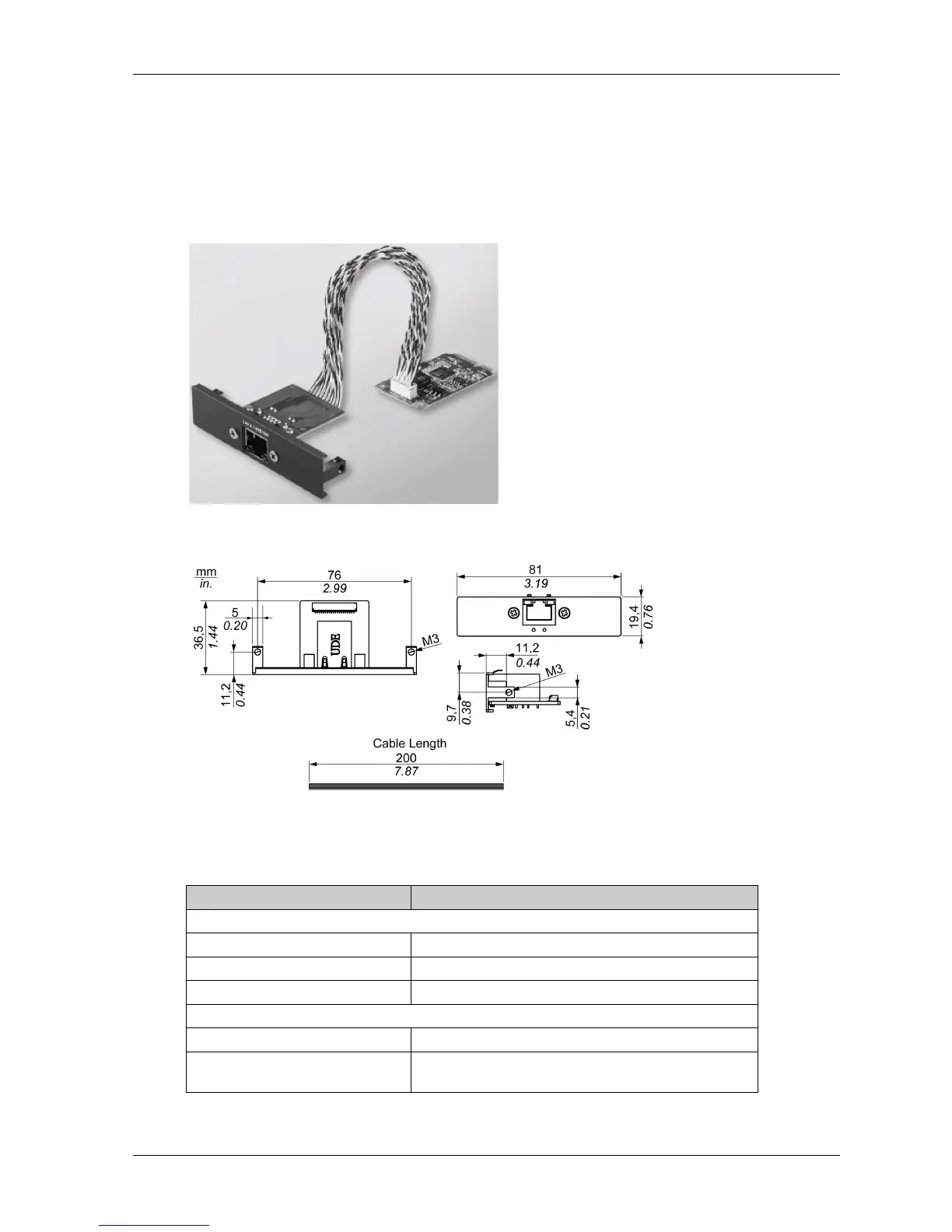

The figure shows the Ethernet interface module:
The figure shows the dimensions of the Ethernet interface module:
Ethernet Interface Module Description
The table shows technical data for the Ethernet interface module:
Any excessive weight or stress on communication cables may disconnect the equipment.
Features Values
General
Bus type Mini PCIe card revision 1.2
Connectors 1 x RJ45 GbE half-/full-duplex
Power consumption Max. 9 W at 3.3 V
Communication
Speed 10/100/1000 base-TX, auto-negotiation
Support 9 K jumbo frames, hardware-based support for precise
time synchronization over Ethernet, wake-on-LAN
