Profibus DP Interface Module Description
Introduction
The PFXZPBMPPBM2 is categorized as industrial communication with fieldbus protocol modules
(Profibus DP master or slave). It is compatible with the mini PCIe card.
NOTE: Download the firmware and configuration. Use the corresponding master or slave DTM in
the configuration software SYCON.net (HILSCHER CIFX 90E-DP\ET\F\MR\ADVA/+ML).

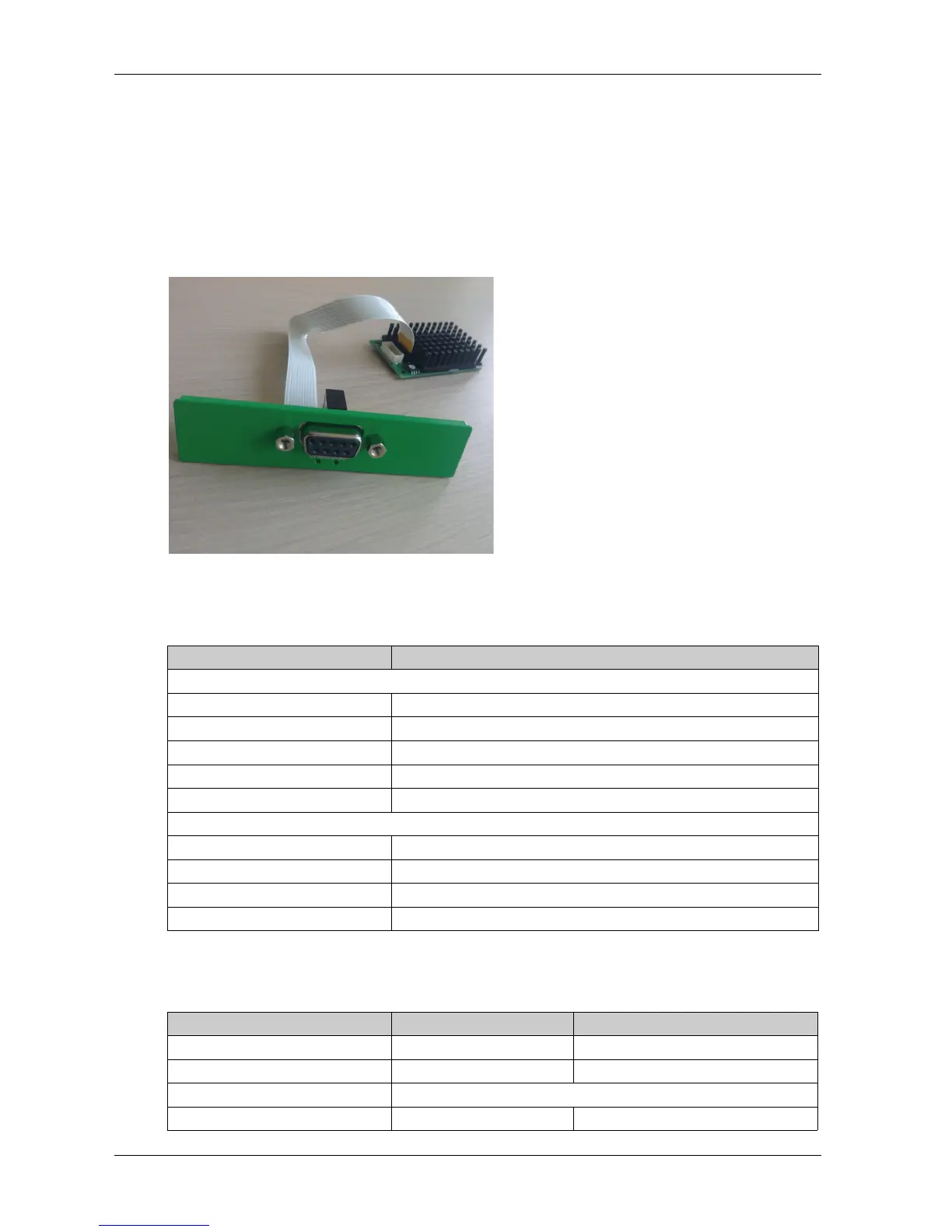

The figure shows the Profibus DP interface module:
Profibus DP Interface Module Description
The table shows technical data for the Profibus DP interface module:
Profibus DP Specification
The table shows the Profibus DP specification:
Features Values
General
Bus type mini PCIe card revision 1.2
Connector 1 x socket D-Sub 9-pin
Memory 8 Mb SDRAM / 4 Mb serial flash EPROM
Size of the dual-port memory 64 Kbyte
Power consumption 600 mA at 3.3 Vdc
Communication
Protocol Profibus DP V1
Signal support RxD/TxD-P, RxD/TxD-N
Transmission rate 33 MHz
Dimensions 60 x 45 x 9.5 mm
Features Profibus DP slave Profibus DP master
Slave max. – 125
Cyclic data max. 244 bytes 244 bytes/slave
Acyclic read/write 6,240 bytes
Maximum number of modules 24 –
