PS5000 Series (Slim Panel Type Atom Model) User Manual
79

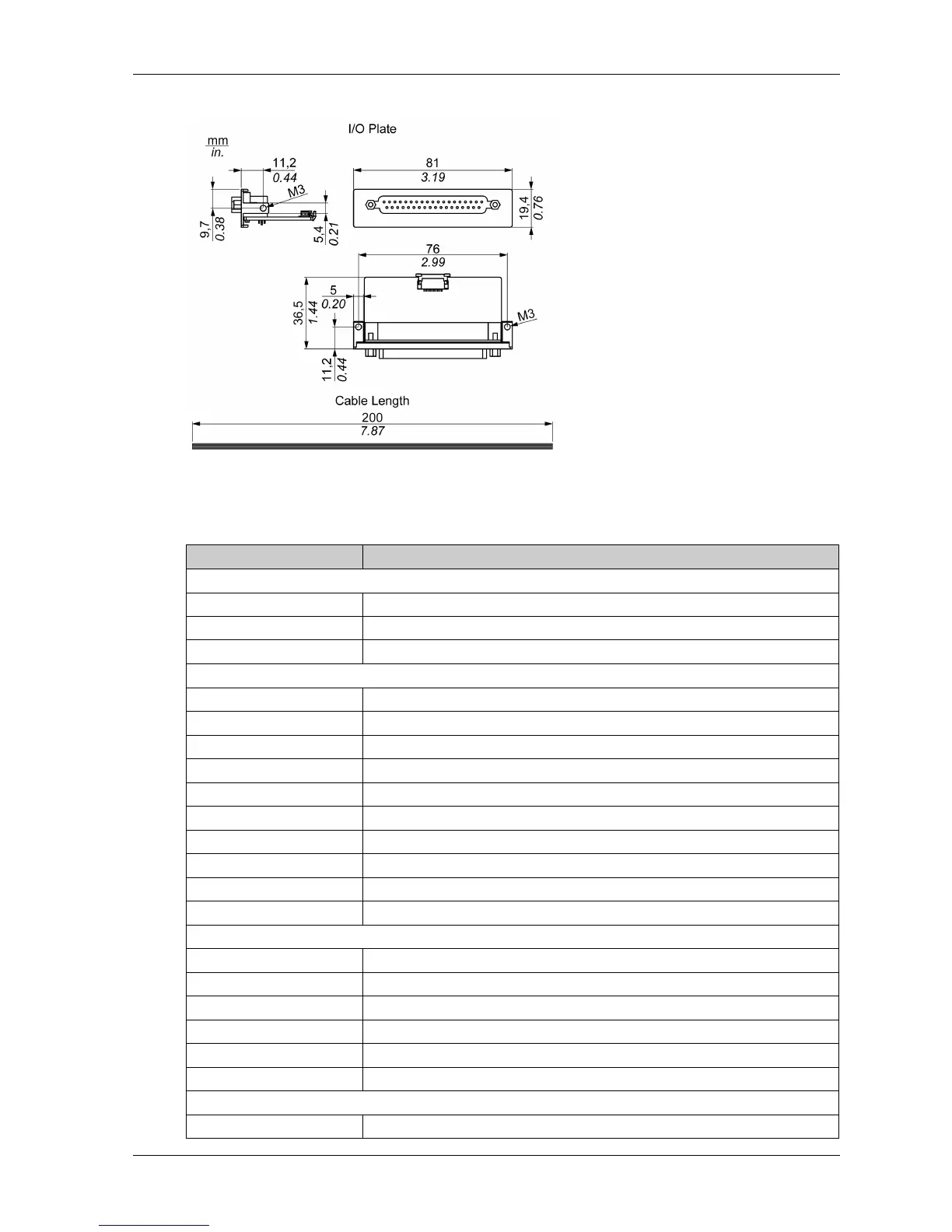

The figure shows the dimensions of the 16DI/8DO interface module:
16DI/8DO Interface Module
The table shows technical data for the 16DI/8DO interface module:
Element Characteristics
General
Bus type mini PCIe card revision 1.2
Connectors 1 x socket D-Sub 37-pin
Power consumption Typical: 400 mA at 3.3 Vdc, maximum: 520 mA at 3.3Vdc
Isolated digital input
Input channels 16
Input voltage (wet contact) Logic 0: 0...3 Vdc, logic 1: 10...30 Vdc
Input voltage (dry contact) Logic 0: open, logic 1: shorted to GND
Input current 10 Vdc at 2.97 mA, 20 Vdc at 6.35 mA, 30 Vdc at 9.73 mA
Input resistance 5 KΩ
Interrupt capable channels 2, IDI0 and IDI8
Isolation protection 2,500 Vdc
Over voltage protection 70 Vdc
ESD protection 4 kV (contact) 8 kV (air)
Opto-isolator response 50 μs
Isolated digital output
Output channels 8
Output type MOSFET
Output voltage 5...30 Vdc
Sink current Maximum 100 mA/channel
Isolation protection 2,500 Vdc
Opto-isolator response 50 μs
Counter
Channels 2
