8

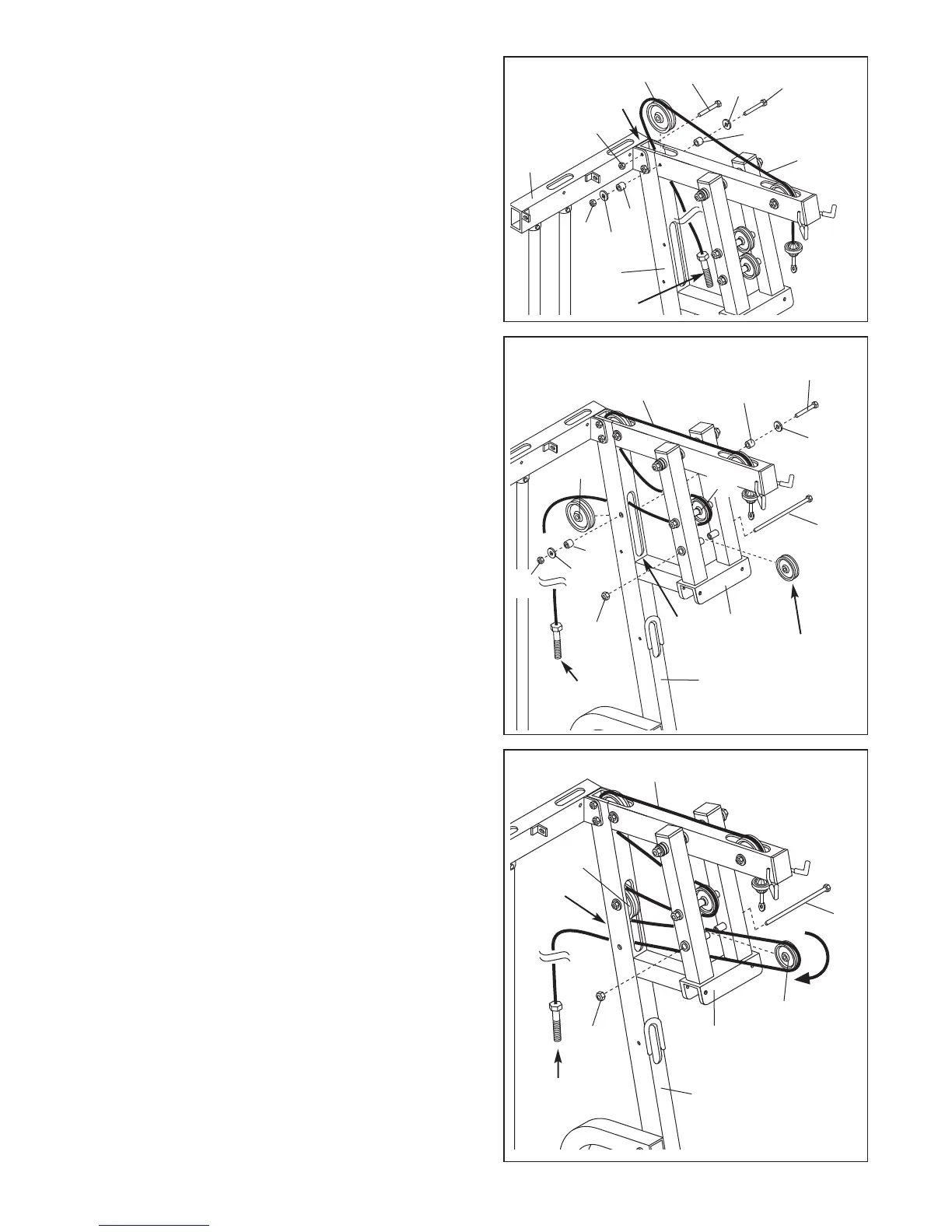

9. Remove the lower pre-assembled Pulley (35) from
the Press Frame (12). Set the Pulley, the 3/8” x 8 1/2”
Bolt (59), and the 3/8” Nylon Locknut (50) aside.
Wrap the High Cable (73) around the upper pre-
assembled Pulley (35) in the direction shown.
Feed the bolt on the High Cable (73) through the indi-
cated slot in the Main Upright (3).
Lay the High Cable (73) over a 4” Pulley (35). Attach
the Pulley inside the Main Upright (3) with a 3/8” x 2
1/2” Bolt (54), two 3/8” Flat Washers (55), two Pulley
Bushings (42), and a 3/8” Nylon Jamnut (63).
10. Feed the bolt on the High Cable (73) back through
the indicated slot in the Main Upright (3) in the direc-
tion shown.
Wrap the High Cable (73) around the 4” Pulley (35)
that was removed from the Press Frame (12) in step
9. The Cable must wrap around the Pulley in the
direction shown. Attach the Pulley to the Press Frame
with the 3/8” x 8 1/2” Bolt (59) and the 3/8” Nylon
Locknut (50).
Feed the bolt on the High Cable (73) back through
the slot in the Main Upright (3) in the direction shown.
9
10
9
Bolt
Slot
35
73
55
54
42
55
3
42
63
Bolt
Slot
35
35
73
55
50
50
54
73
42
55
59
59
3
3
12
35
35
12
Slot
Bolt
Lower Pre-
assembled
Pulley (35)
42
63
45
5
0
1
8. Remove the upper 3/8” x 3” Bolt (45) attaching the
Top Frame (1) to the Main Upright (3).
F
eed the bolt on the High Cable (73) down through
the indicated slot in the Main Upright (3) as shown.
Note: Follow the procedure described in step 7
for attaching all pulleys. Lay the High Cable (73)
over a 4” Pulley (35) in the direction shown. Attach
the Pulley inside the Main Upright (3) with a 3/8” x 2
1/2” Bolt (54), two 3/8” Flat Washers (55), two Pulley
Bushings (42), and a 3/8” Nylon Jamnut (63).
Make sure that the High Cable (73) is in the
groove of the 4” Pulley (35). Re-insert the 3/8” x 3”
Bolt (45) and secure it with a 3/8” Nylon Locknut (50).
To Next Page
