- 16 -
Pro Spot PR-8
GB/US/2000-08
PRO SPOT
D. Operation
D6. Setting the welding current
The operator can increase or decrease the welding current with the + and – pushbuttons.

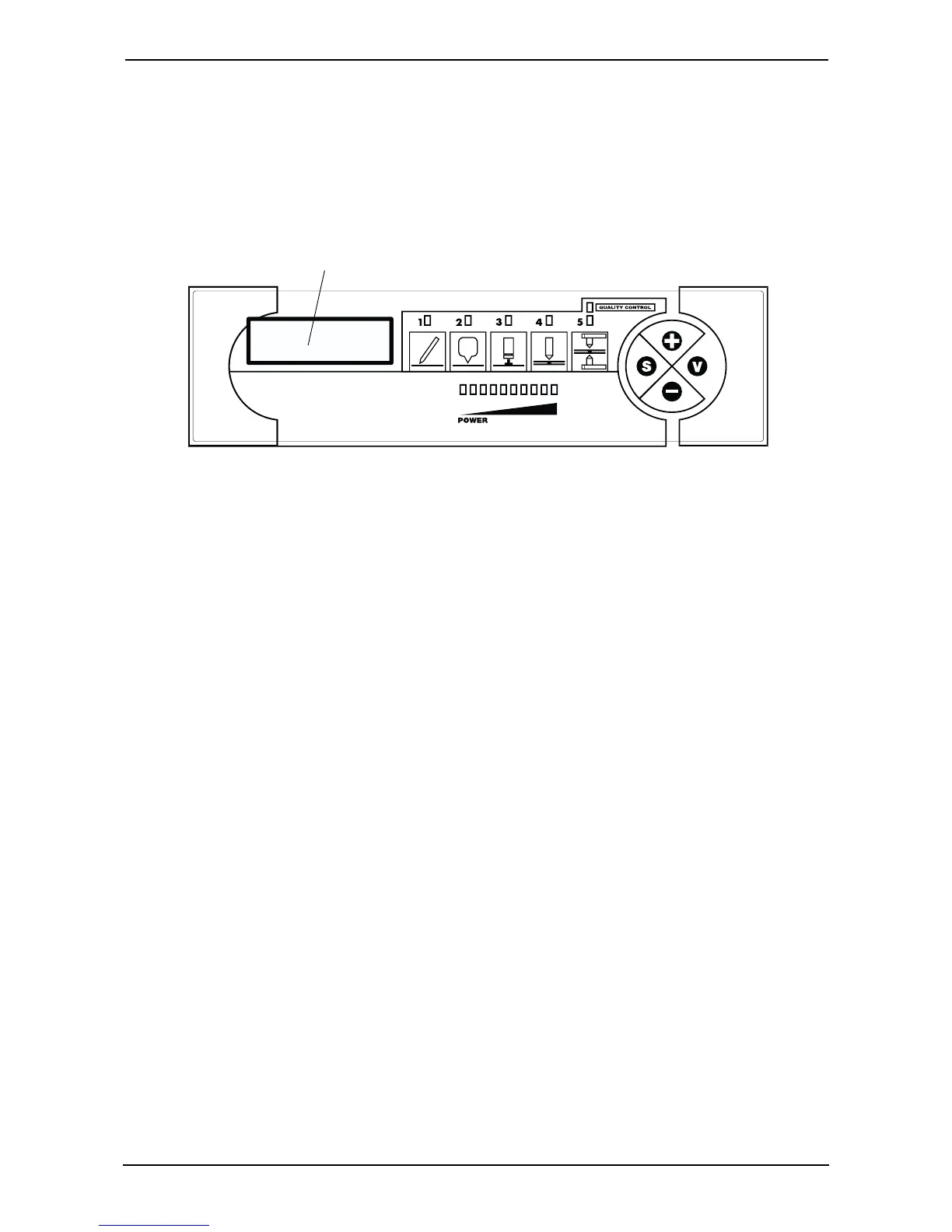

z The display (1) shows the Operating Mode and program that you have selected.
1.
Numbers 1 to 10 represents number of diodes ON.
Mode 4 (Diode 4 ON)
Prog Display (1) Anmärkning
1 31 0.5-0.6 mm Welding of 0.5 - 0.6 mm
2 32 0.6-0.7 mm Welding of 0.6 - 0.7 mm
3 33 0.7Weld into 1.5 Welding of 0.7 mot 1.5 mm
4 34 1.0Weld into 1.5 Welding of 1.0 into 1.5 mm
5 35 0.7Weld into 2.0 Welding of 0.7 into 2.0 mm
6 36 1.0Weld into 2.0 Welding of 1.0 into 2.0 mm
7 37 ACE3 0.5-0.7mm ACEnergy 3 for 0.5 - 0.7 mm welding
8 38 ACE5 0.7-1.0mm ACEnergy 5 for 0.7 - 1.0 mm welding
9 39 1.5Weld into 1.5 ACEnergy welding for 1.5 into 1.5 mm
10 40 1.5Weld into 2.0 ACEnergy welding for 1.5 into 2.0 mm
Mode 5 (Diode 5 ON)
1 41 STD PROG TWIN Sheet Thickness 0.5 - 0.7 mm
2 42 STD PROG TWIN Sheet Thickness 0.6 - 0.8 mm
3 43 STD PROG TWIN Sheet Thickness 0.7 - 0.9 mm
4 44 STD PROG TWIN Sheet Thickness 0.7 - 1.0 mm
5 45 STD PROG TWIN Sheet Thickness 1.0 - 1.4 mm
6 46 STD PROG TWIN Sheet Thickness 1.2 - 1.5 mm
7 47 STD PROG TWIN Sheet Thickness 1.6 - 2.0 mm
8 48 STD PROG TWIN Sheet Thickness 2.0 - 2.4 mm
9 49 STD PROG TWIN Sheet Thickness 2.2 - 2.5 mm
10 50 STD PROG TWIN Sheet Thickness 2.5 - 3.0 mm
Mode 6 (Diode 5 ON and Diod Extra Program ON)
1 51 0.7 - 0.7 GALV Welding of galvanized sheets 0.7 - 0.7 mm
2 52 1.0 - 1.0 GALV Welding of galvanized sheets 1.0 - 1.0 mm
3 53 1.5 - 1.5 GALV Welding of galvanized sheets 1.5 - 1.5 mm
4 54 2.0 - 2.0 GALV Welding of galvanized sheets 2.0 - 2.0 mm
5 55 AC1 0.5 - 1.9 AC1 Automatic program for sheets 0.5 to 1.9 mm (see D2)
6 56 AC2 1.0 - 3.0 AC2 Automatic program for sheets 1.0 to 3.0 mm (see D2)
7 57 ACE3 0.5 - 0.9 ACEnergy for sheets 0.5 - 0.9 mm
8 58 ACE7 0.7 - 1.4 ACEnergy for sheets 0.7 - 1.4 mm
9 59 ACE30 1.5 - 2.4 ACEnergy for sheets 1.5 - 2.4 mm
10 60 ACE50 2.5 - 3.0 ACEnergy for sheets 2.5 - 3.0 mm
