The Pro Spot PR-8 has six operating modes, as follows:
1. Swaging (graphite arc tool) for thermal straightening of damaged bodywork.
2. Washer welding for slide-hammer tool (pulling out dents.)
3. Stud welding for welding various types of studs, rivets, etc.
4. Single-sided spot welding for welding body parts without tongs.
5. Tongs (double-sided spot welding) for welding with C or X tongs.
6. Automatic Control and special programs.
C. Function selection
C2. Control pushbuttons (modes 1-5)
7. Ten LEDs (four green, three orange and three red). For indication of power output.
8. See below.

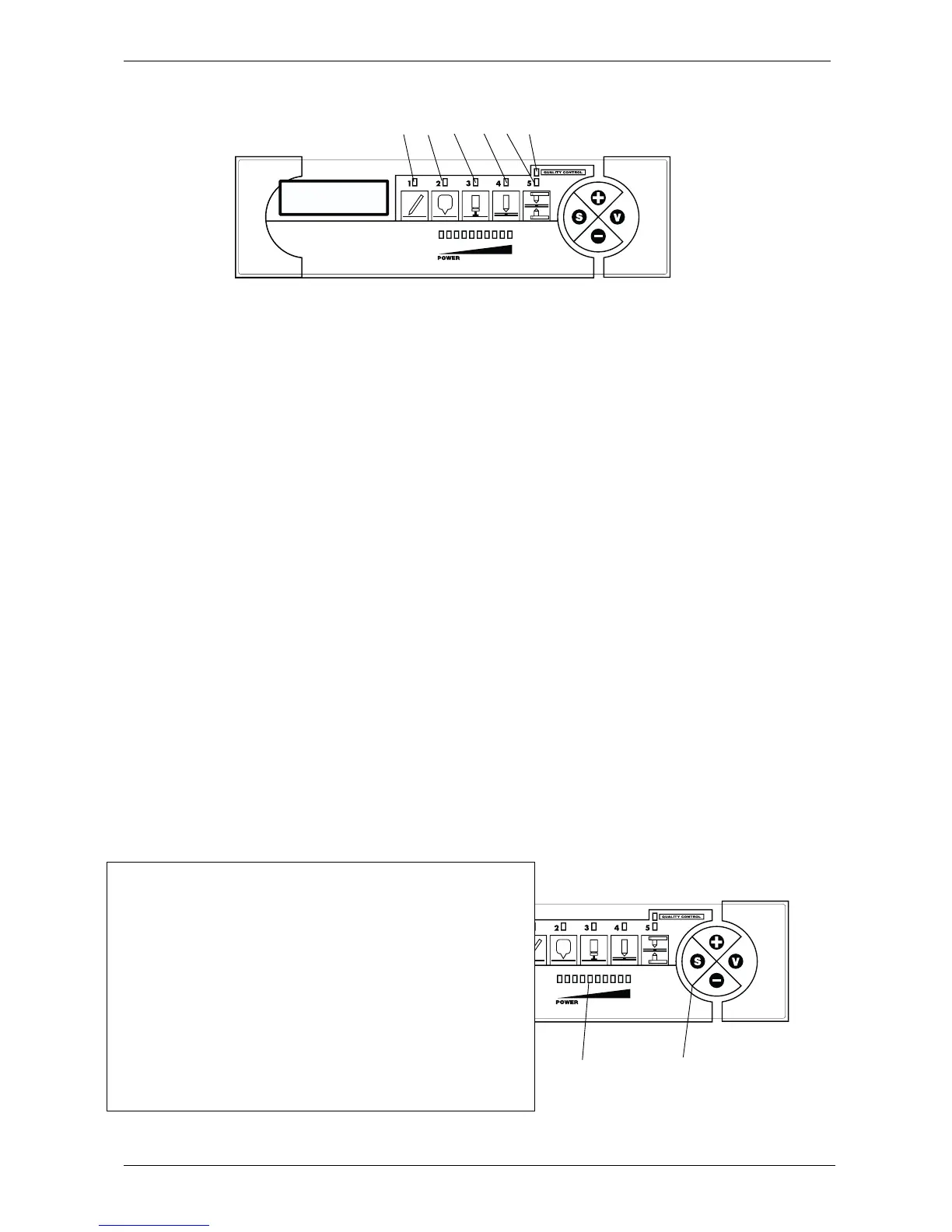

C1. Operating modes Front panel
7.
8.
1. 2.
3.
4. 5.
6.
Press + Plus to increase output power.
NB: When operating in Mode 3, text will
be shown on the display for rivets, studs etc.
Press – Minus to decrease output power.
Acknowledge/cancel messages or faults
with V (reset).
Press S to select operating modes.
”
+ ”
”
- ”
” v ”
”
s ”
