3. Installing the Meter
Plug the meter into the front of the MT-1/WT3 socket. If I/O cables are present, place
them into the notch before inserting the meter. Make sure everything is well-
secured. The socket installation is complete. Operation examples are provided
further on.
Installation Procedure (ringless meter base)

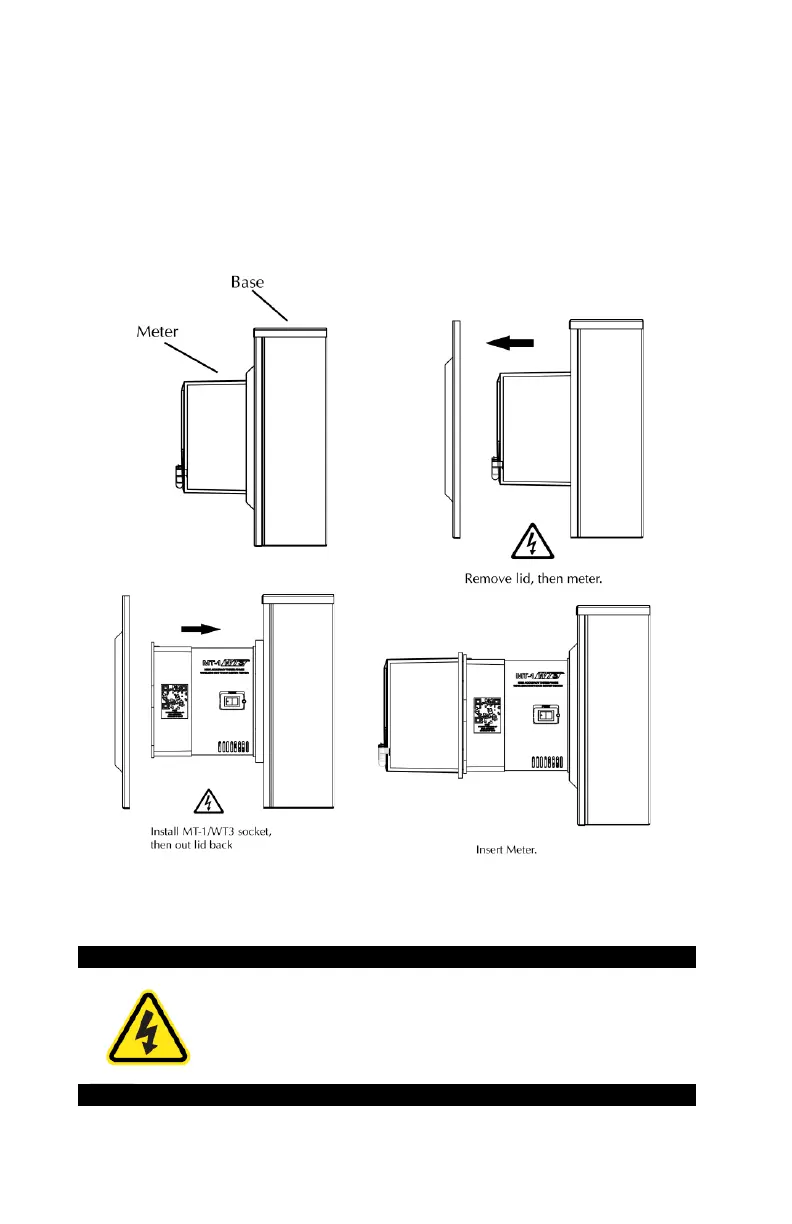

Fig. 3.1 – Installation Ringless Meter Base
THIS SYMBOL INDICATES THAT VOLTAGE IS PRESENT AND
EXTREME CAUTION SHOULD BE USED.
ONLY INSTALL THE MT-1/WT3 SOCKET IN COMPATIBLE
METER BASES. SEE APPENDIX B FOR COMPATIBILITY.
