Appendix B
Compatible Meter Forms
This Appendix lists all the meter forms compatible with the MT-1/WT1. For each
meter form, the electrical service is shown at the top left and an internal schematic
of the meter installed is shown at the top right. The wiring that connects the meter
to the line and load is also shown. Before proceeding with a field test, make sure that
the connections to the socket for a given form are similar to those shown hereafter.

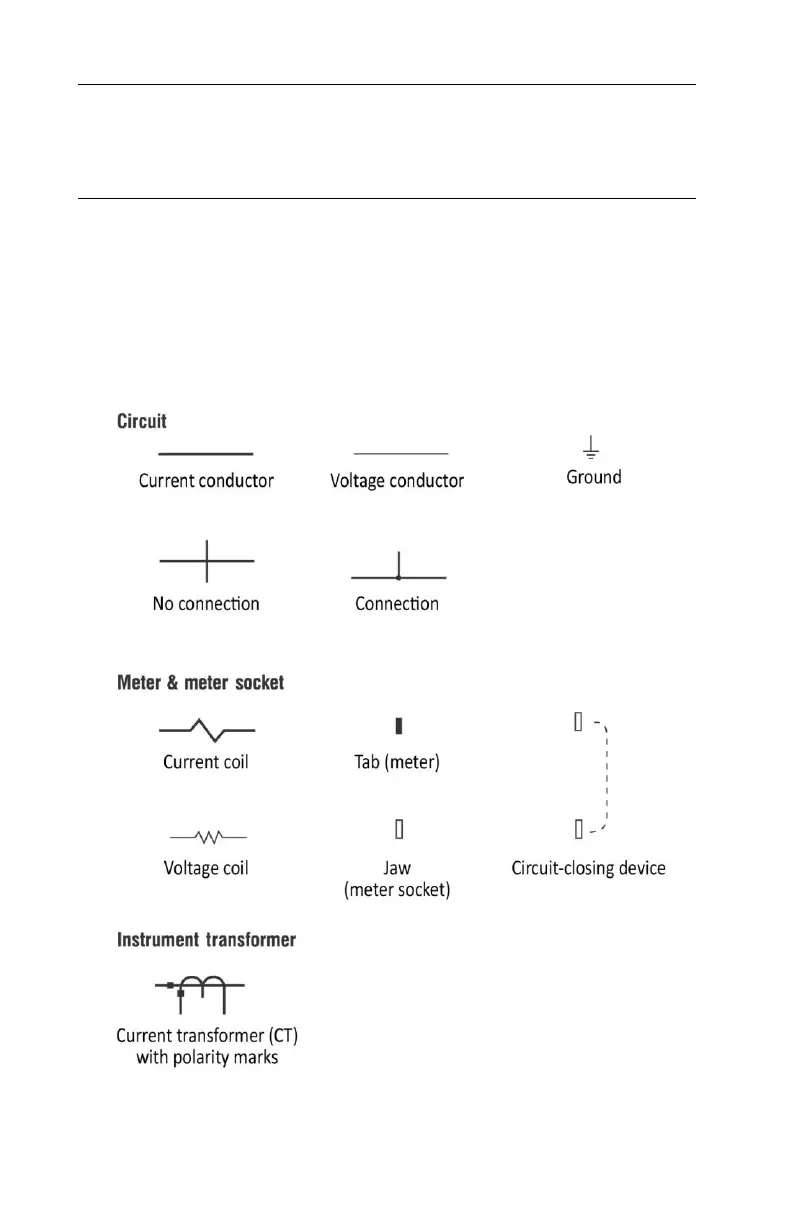

The symbols used are:
