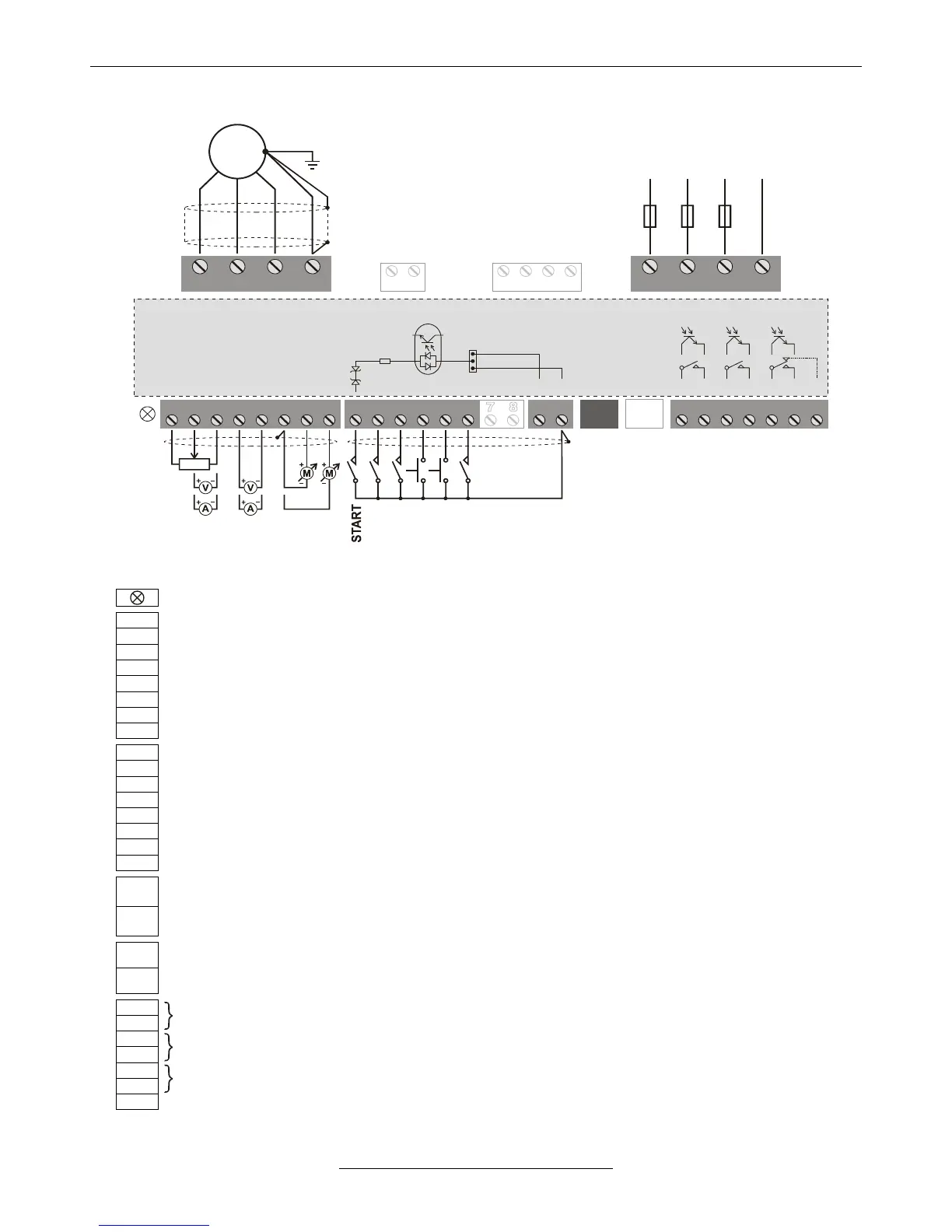

 ASSIGNMENT AND CONNECTION OF THE VLD / VHD TERMINAL BLOCK
1 1 112 2 223 3 34 4 45 5 56 6 6 77 8
SA SD ST CST CSR SR
U V W PE L1 L2 L3 PE
MOTOR LINE
2-10K
0÷10V
(0)4÷ 02 mA
REVERSING
JOGGING
ERROR A.
EXT. ERROR
GND/D
STOP
M
~
3 x 400VAC
F1 F2 F3
R BRAKE
FAN
3 x 400VAC
PNP
NPN
12V
12V
1K2
+24V/D
GND/D
Three-colour LED (green: On, yellow: Operate, red: Error)
SA1
+10V potentiometer driving output (max. 6 mA) (+15 V, +5 V option)
SA2
Analogue input 1 (+): potentiometer (2÷10 kΩ), 0÷10 V (130 kΩ), 4÷20 mA (0÷20 mA) (100 Ω)
SA3
Analogue input 1 (–): reference point (pl. GND/A)
SA4
Analogue input 2 (+): potentiometer (2÷10 kΩ), 0÷10 V (130 kΩ), 4÷20mA (0÷20 mA) (100 Ω)
SA5
Analogue input 2 (–): reference point (pl. GND/A)
SA6
GND/A (reference point of the analogue inputs and outputs)
SA7
Analogue 1 output: 0÷10V, (0)4÷20mA, (or Analogue input 3: 0÷10 V option)
SA8
Analogue 2 output: 0÷10V, (0)4÷20mA, (or Analogue input 4: 0÷10 V option)
SD1
Digital input 1 * (factory setting: start switch)
SD2
Digital input 2 * (factory setting: reversing switch)
SD3
Digital input 3 * (factory setting: jogging switch)
SD4
Digital input 4 * (factory setting: error acknowledgement)
SD5
Digital input 5 * (factory setting: external error), (or reference signal IRE(A) input option)
SD6
Digital input 6 * (factory setting: stop switch), (or reference signal IRE(B) input option)
SD7
Option (Digital input 7 *, or feedback signal IRE(A) input)
SD8
Option (Digital input 8 *, or feedback signal IRE(B) input)
ST1
+24 V/D supply voltage output (max. 100 mA)
In case of PNP logic the common point of the digital inputs (K1, K2, K3 jumpers)
ST2
GND/D (the reference point of the +24 V/D supply voltage output)
In case of NPN logic the common point of the digital inputs (K1, K2, K3 jumpers)
CST
Terminal serial line connector (CAN1 option)
CSR
Option (System serial line and/or CAN2)
SR1
Digital output 1 ** (factory setting: ready - closing / error - opening)
SR2
SR3
Digital output 2 ** (factory setting: operate - closing / stop - opening)
SR4
SR5
Digital output 3 ** (factory setting: brake control) (optional for VLD 5,5 ÷ 11)
SR6
SR7
Digital output 3: In case of a relay contact closed in rest position (option)
* Switching level of the digital inputs: 0.6 to 2 mA
** Digital outputs: relay (max. 250 V AC / 1 A or 30 V DC / 0,5 A) or optocoupler (optional) (max. 30 V DC / 10 mA)
