2. Attach a Wheel (87) with a 3/8" x 2" Bolt (4) and
a 3/8" Nut (8). Do not overtighten the Nut; the
Wheel must turn freely.
Press a Base Cap (82) into the Base (86).
86
4
8
2
82
87
1

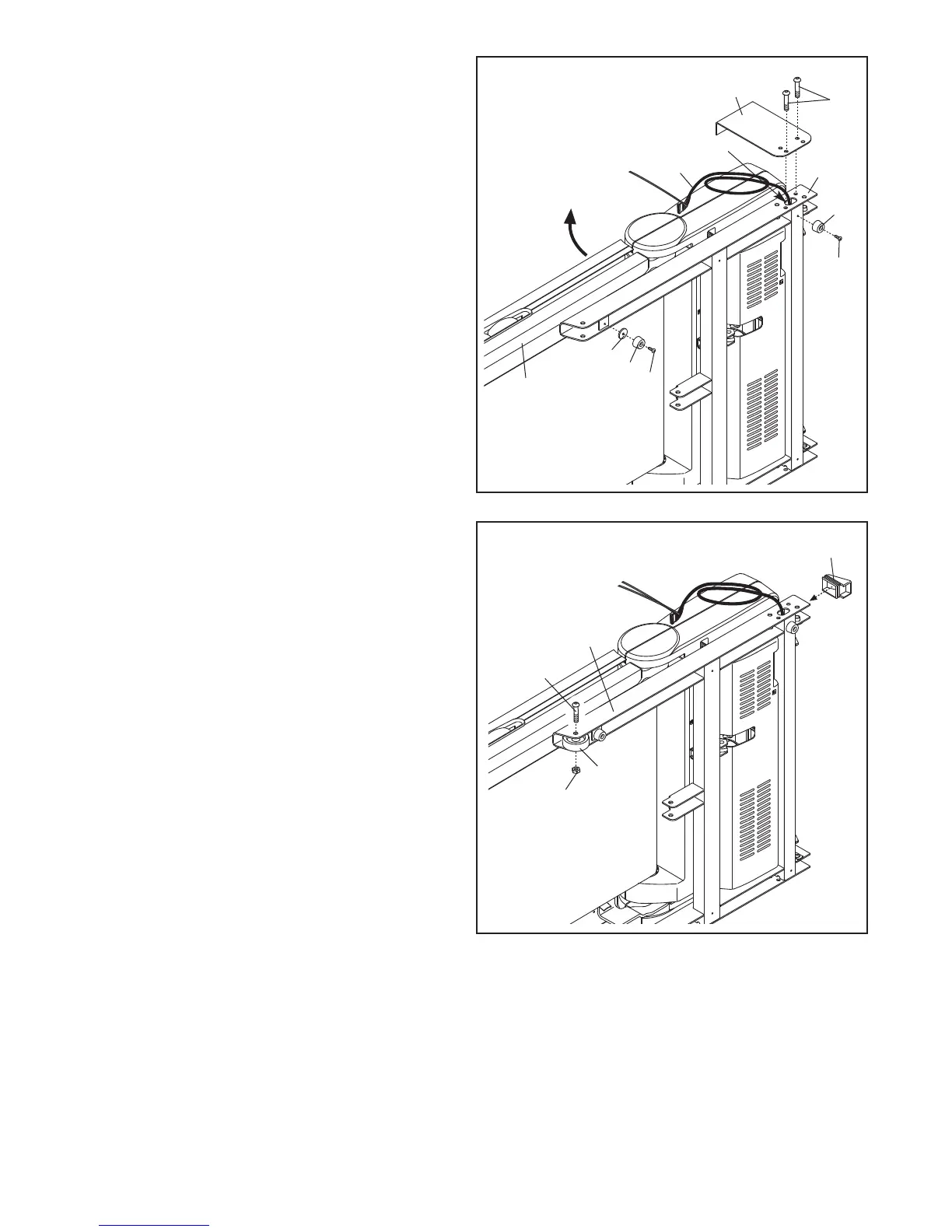

. Make sure that the power cord is unplugged.
W
ith the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (51) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the shipping tie securing the Upright Wire
(79) to the Base (86). Use a tie to pull the
Upright Wire out of the indicated hole.
Attach a Base Pad (88) to the Base (86) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (88) with only a #8 x 1" Tek Screw (2).
86
2
51
B
A
88
1
88
2
7
9
H
ole
13
To Next Page
