8
3

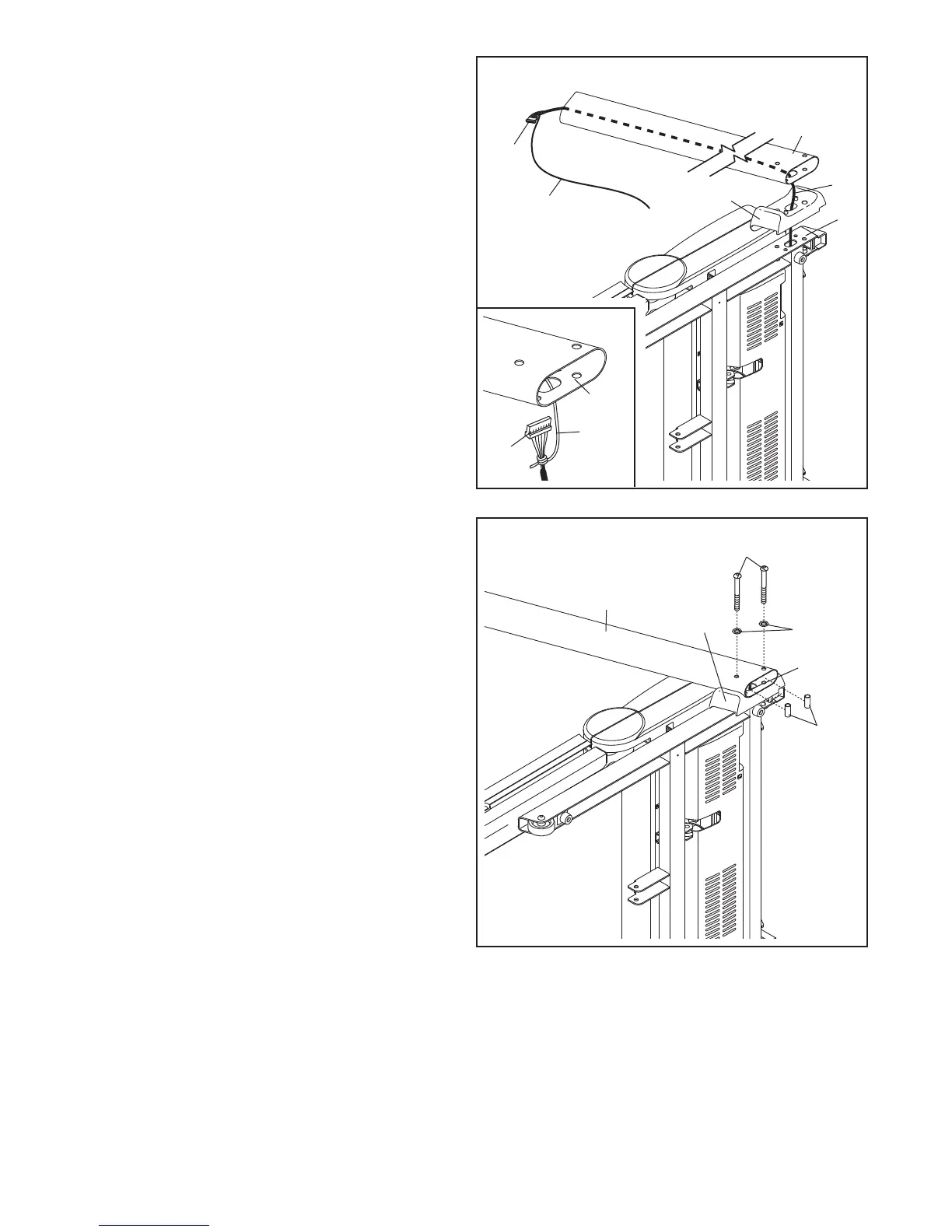

. Identify the Right Upright (81) and the Right
Upright Spacer (89), which are marked with
“Right” stickers. Insert the Upright Wire (79)
through the Right Upright Spacer as shown. Set
t
he Right Upright Spacer on the Base (86).
Make sure the Upright Wire is not pinched.
Have a second person hold the Right Upright
(
81) near the Base (86). See the inset drawing.
Tie the long tie in the Right Upright securely
around the end of the Upright Wire (79). Then,
pull the other end of the long tie until the Upright
Wire is routed completely through the Right
Upright.
86
79
81
89
79
3
Long
Tie
81
79
Long
Tie
4. Hold a Bolt Spacer (80) inside the lower end of
the Right Upright (81). Insert a 3/8" x 4" Bolt (6)
with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (80), 3/8" x 4" Bolt
(6), and 3/8" Star Washer (9).
Set the Right Upright (81) into the Right Upright
Spacer (89). Make sure the Upright Wire (79)
is not pinched.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
89
81
6
4
79
9
80
To Next Page
