To hire an authorized service technician to assembJe the ellipticaJ exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Hace aH parts of the eHipticaUexerciser in a cleared area and remove the
packing matedaUs, Do not dispose of the packing matedaUs until assemMy is compUeted,
AssemMy requires a phHHpsscrewdriver , two adjustaMe wrenches and a rubber
mallet (::::-: - :: :::::::_),

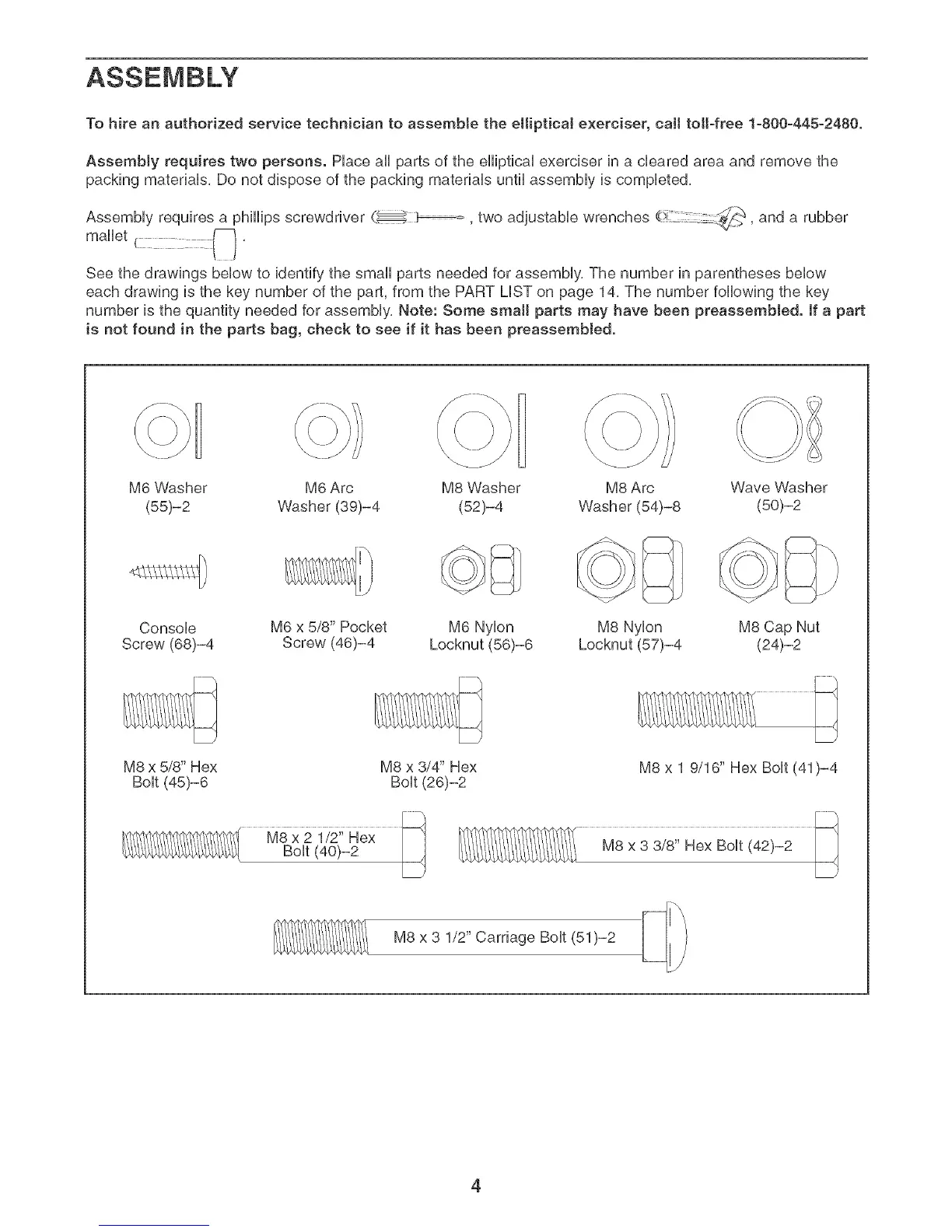

See the drawings beUowto identify the small parts needed for assembly, The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 14, The number following the key
number is the quantity needed for assembly, Note: Some small parts may have been preassemMed. If a part
is not found in the parts bag, check to see if it has been preassembled.
M6 Washer M6 Arc M8 Arc Wave Washer
(55)-2 Washer (39)-4 Washer (54)-8 (50)-2
l
M8 Washer
(52)-4
Console M6 x 5/8" Pocket M6 Nylon M8 Nylon M8 Cap Nut
Screw (68)-4 Screw (46)-4 Locknut (56)-6 Locknut (57)-4 (24)-2
M8 x 5/8" Hex M8 x 3/4" Hex
Bolt (45)-6 Bolt (26)-2
M8 x 1 9/16" Hex Bolt (41)-4
MS x 3 1/2" Carriage Bolt (51)-2 [-_
To Next Page
