2,

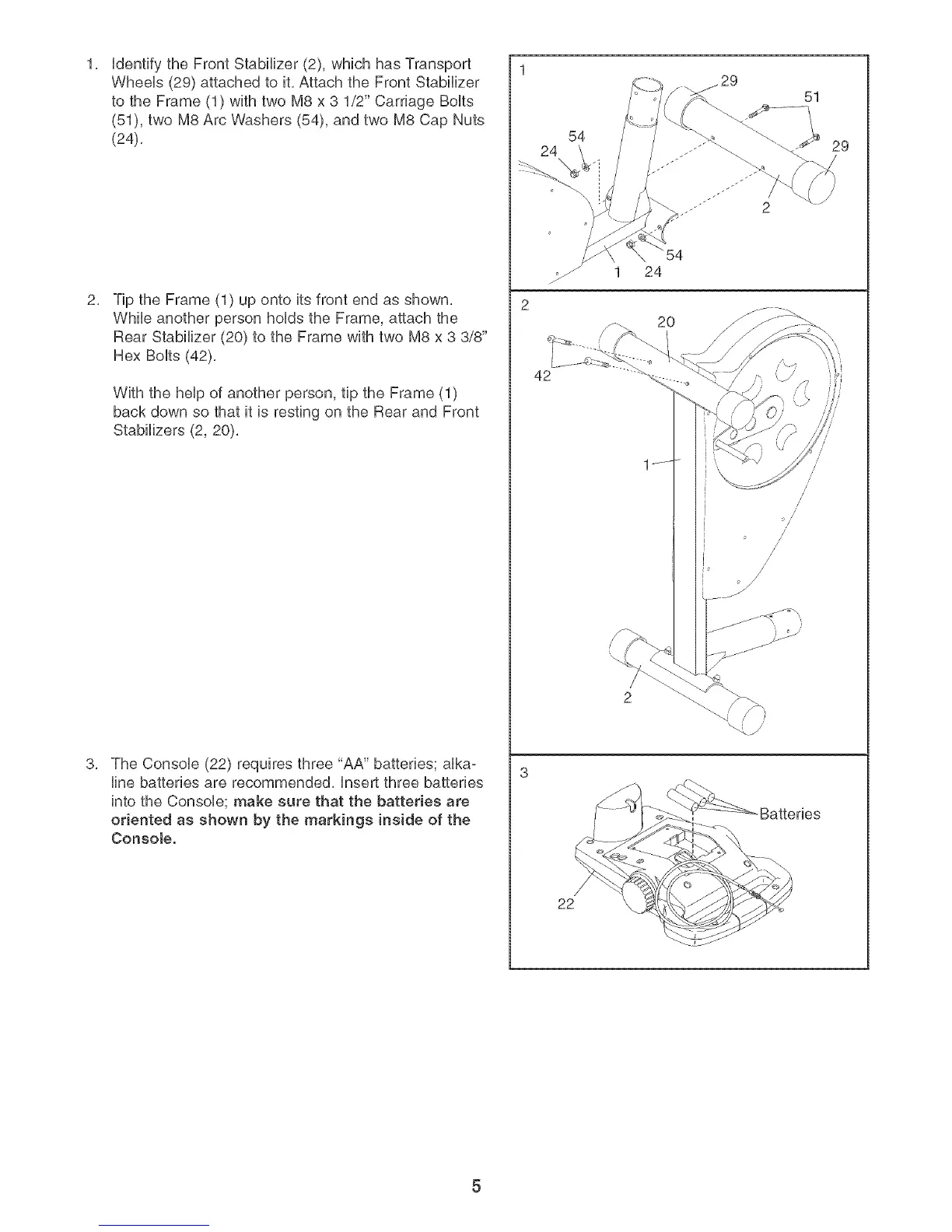

Udentify the Front Stabilizer (2), which has Transport
WheeUs (29) attached to it, Attach the Front Stabilizer
to the Frame (1) with two M8 x 3 1/2" Carriage BoUts
(51), two M8 Arc Washers (54), and two M8 Cap Nuts
(24),
Tip the Frame (1) up onto its front end as shown,
While another person holds the Frame, attach the
Rear Stabilizer (20) to the Frame with two M8 x 3 3/8"
Hex Bolts (42),
With the help of another person, tip the Frame (1)
back down so that it is resting on the Rear and Front
Stabilizers (2, 20),
The Console (22) requires three "AA" batteries; alka-
line batteries are recommended, insert three batteries
into the Console; make sure that the batteries are
oriented as shown by the markings inside of the
Console.
24
42
22
29
51
54
/
/
/
/
/
/
/
//
//
//
2
Batteries
29
