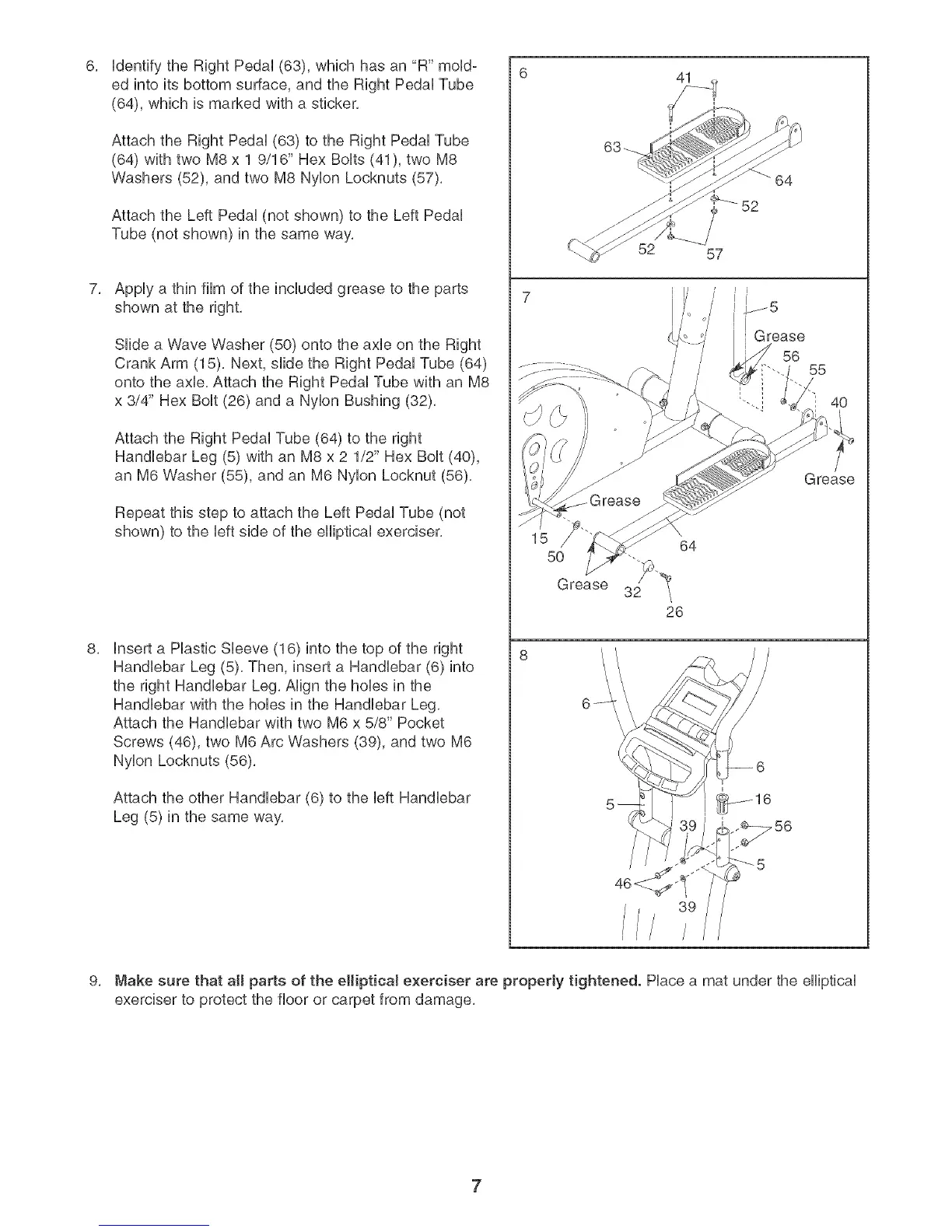

Udentify the Right PedaU(63), which has an "R" moUdo

ed into its bottom surface, and the Right PedaUTube

(64), which is marked with a sticker,

Attach the Right PedaU(63) to the Right PedaUTube

(64) with two M8 x 1 9/16" Hex BoUts(41), two M8

Washers (52), and two M8 NyUonLocknuts (57),

Attach the Left PedaU(not shown) to the Left PedaU

Tube (not shown) in the same way,

AppUya thin film of the included grease to the parts

shown at the right,

SHde a VVaveWasher (50) onto the axUeon the Right

Crank Arm (15), Next, slide the Right PedaUTube (64)

onto the axUe,Attach the Right PedaUTube with an M8

x 3/4" Hex BoUt(26) and a NyUon Bushing (32),

Attach the Right PedaUTube (64) to the right

HandUebar Leg (5) with an M8 x 2 1/2" Hex BoUt(40),

an M6 Washer (55), and an M6 NyUonLocknut (56),

Repeat this step to attach the Left PedaUTube (not

shown) to the Ueftside of the elliptical exerciser,

Insert a Plastic Sleeve (16) into the top of the right

Handlebar Leg (5), Then, insert a Handlebar (6) into

the right Handlebar Leg, Align the holes in the

Handlebar with the holes in the Handlebar Leg,

Attach the Handlebar with two M6 x 5/8" Pocket

Screws (46), two M6 Arc Washers (39), and two M6

Nylon Locknuts (56),

Attach the other Handlebar (6) to the left Handlebar

Leg (5) in the same way,

52 57

J i

Grease

G rease

9, Make sure that aH parts of the elliptical exerciser are properly tightened. Place a mat under the e[Hpflca[

exerciser to protect the floor or carpet from damage,
