9
7a

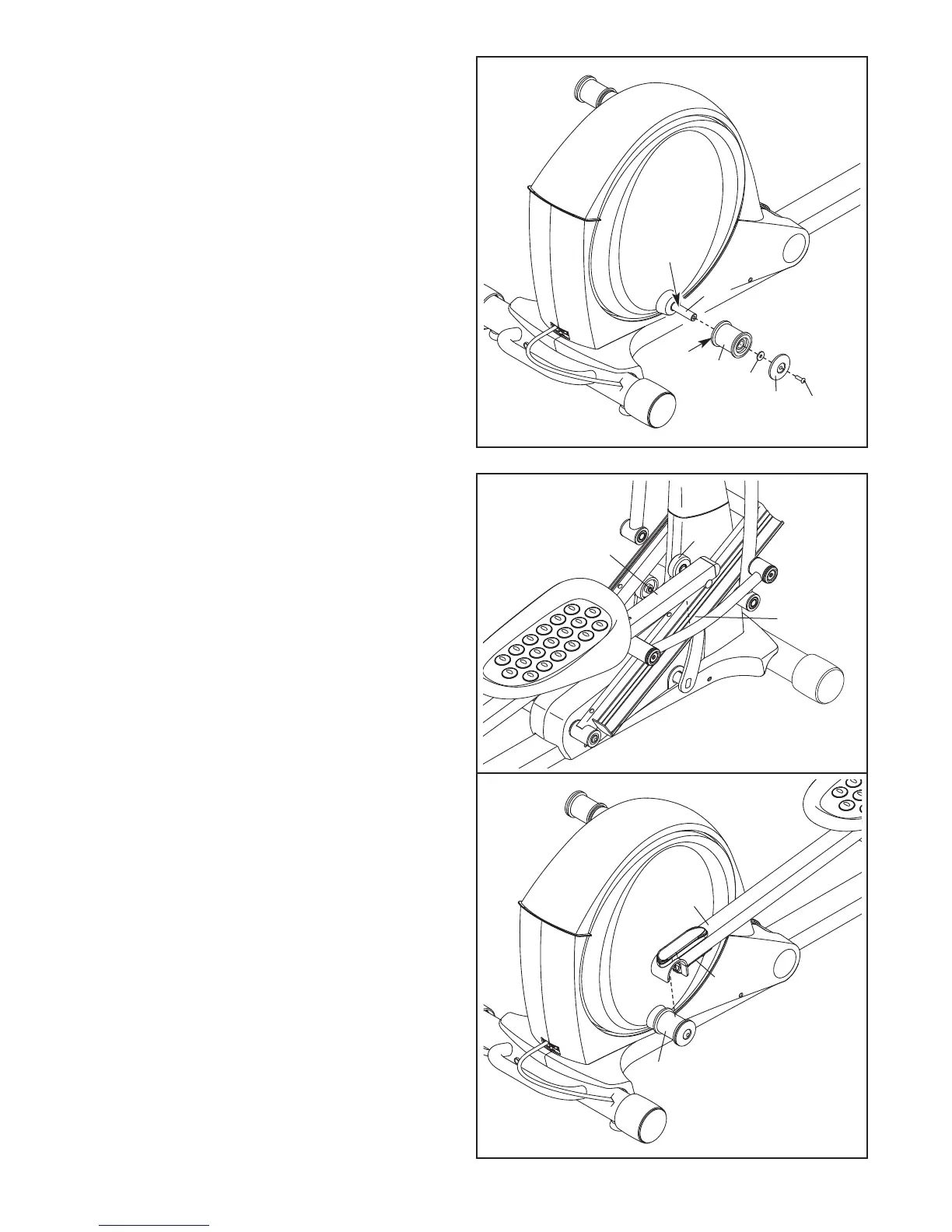

7. See drawing 7a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12).
Set the Pedal Arm Roller (32) on the right side
of the Ramp (130).
See drawing 7b. Pull upward on the Latch (50)
on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
32
12
130
6. Apply grease to the axle on the right Crank Arm
(39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95). Tip: Avoid
damaging the Large Axle Cover when tight-
ening the Patch Screw.
Repeat this step on the other side of the
elliptical.
7b
46
12
50
6
95
113
46
Flat
Side
Grease
121
39
To Next Page
