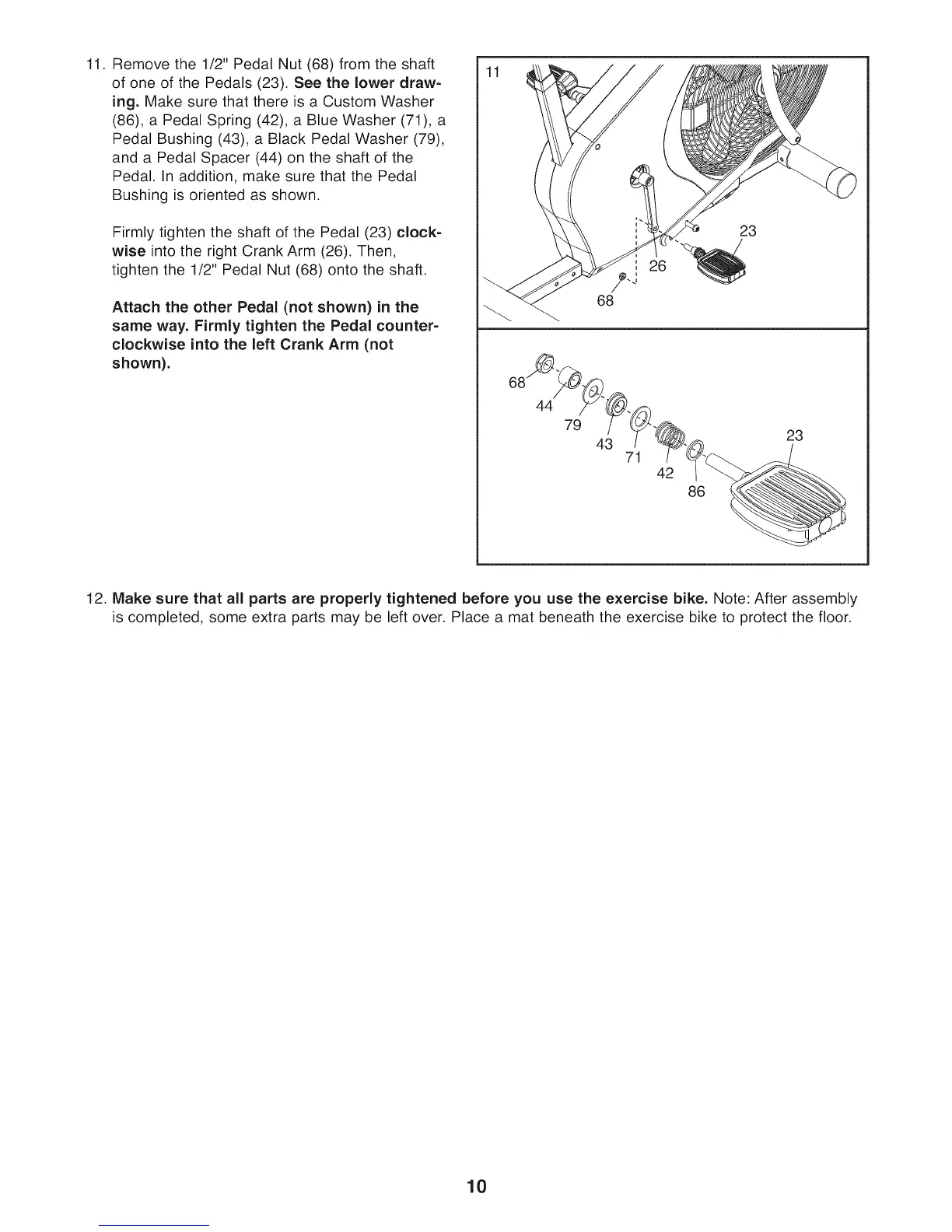

11. Remove the 1/2" Pedal Nut (68) from the shaft
of one of the Pedals (23). See the lower draw-
ing. Make sure that there is a Custom Washer
(86), a Pedal Spring (42), a Blue Washer (71), a
Pedal Bushing (43), a Black Pedal Washer (79),
and a Pedal Spacer (44) on the shaft of the
Pedal. In addition, make sure that the Pedal
Bushing is oriented as shown.
Firmly tighten the shaft of the Pedal (23) clock-
wise into the right Crank Arm (26). Then,
tighten the 1/2" Pedal Nut (68) onto the shaft.
Attach the other Pedal (not shown) in the
same way. Firmly tighten the Pedal counter-
clockwise into the left Crank Arm (not
shown).
11
44
68
79
43
71
42
86
23
12. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.
10
