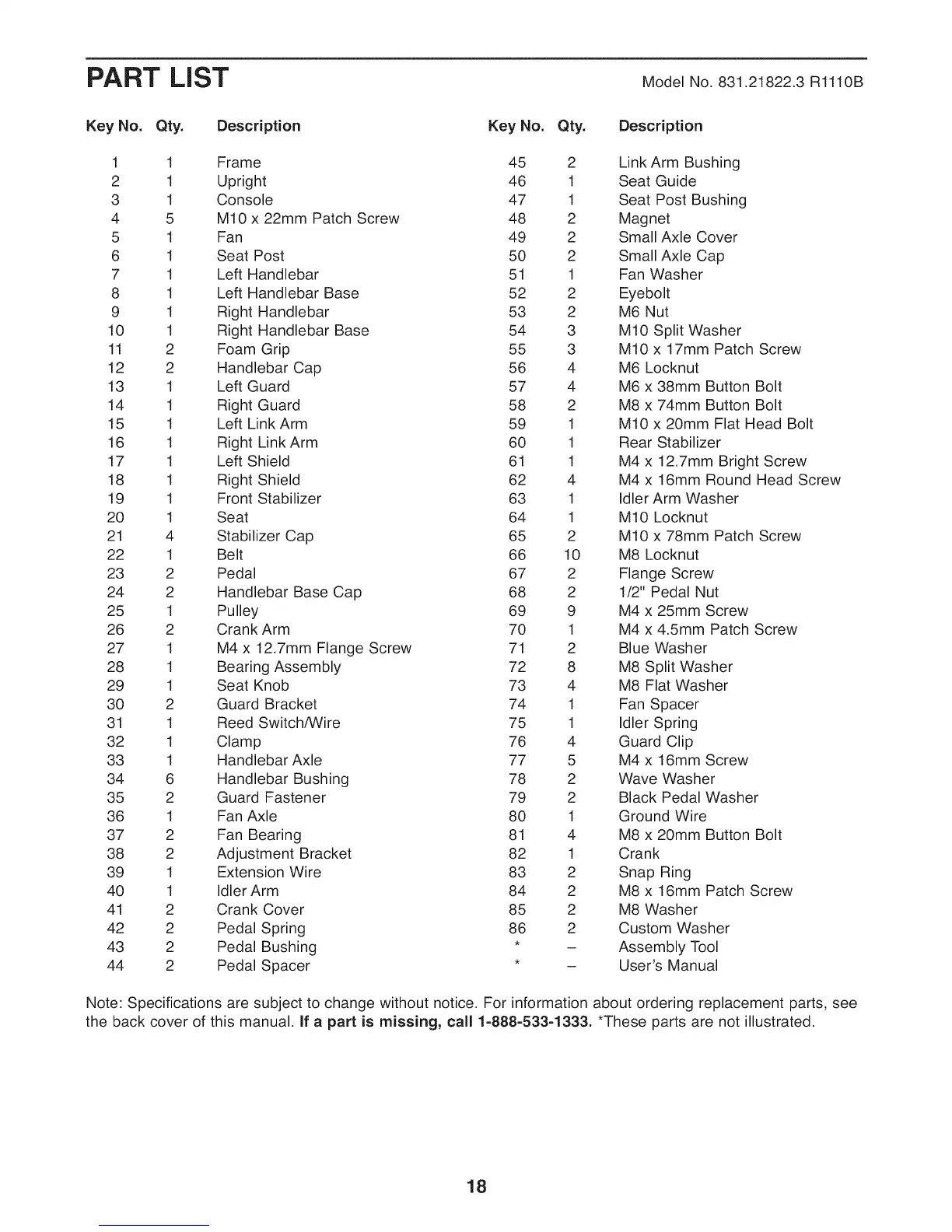

PART LIST Model No. 831.21822.3 Rll10B
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 45 2 Link Arm Bushing
2 1 Upright 46 1 Seat Guide
3 1 Console 47 1 Seat Post Bushing
4 5 M10 x 22mm Patch Screw 48 2 Magnet
5 1 Fan 49 2 Small Axle Cover
6 1 Seat Post 50 2 Small Axle Cap
7 1 Left Handlebar 51 1 Fan Washer
8 1 Left Handlebar Base 52 2 Eyebolt
9 1 Right Handlebar 53 2 M6 Nut
10 1 Right Handlebar Base 54 3 M10 Split Washer
11 2 Foam Grip 55 3 M10 x 17mm Patch Screw
12 2 Handlebar Cap 56 4 M6 Locknut
13 1 Left Guard 57 4 M6 x 38mm Button Bolt
14 1 Right Guard 58 2 M8 x 74mm Button Bolt
15 1 Left Link Arm 59 1 M10 x 20mm Flat Head Bolt
16 1 Right Link Arm 60 1 Rear Stabilizer
17 1 Left Shield 61 1 M4 x 12.7mm Bright Screw
18 1 Right Shield 62 4 M4 x 16mm Round Head Screw
19 1 Front Stabilizer 63 1 Idler Arm Washer
20 1 Seat 64 1 M10 Locknut
21 4 Stabilizer Cap 65 2 M10 x 78mm Patch Screw
22 1 Belt 66 10 M8 Locknut
23 2 Pedal 67 2 Flange Screw
24 2 Handlebar Base Cap 68 2 1/2" Pedal Nut
25 1 Pulley 69 9 M4 x 25mm Screw
26 2 Crank Arm 70 1 M4 x 4.5mm Patch Screw
27 1 M4 x 12.7mm Flange Screw 71 2 Blue Washer
28 1 Bearing Assembly 72 8 M8 Split Washer
29 1 Seat Knob 73 4 M8 Flat Washer
30 2 Guard Bracket 74 1 Fan Spacer
31 1 Reed Switch/Wire 75 1 Idler Spring
32 1 Clamp 76 4 Guard Clip
33 1 Handlebar Axle 77 5 M4 x 16mm Screw
34 6 Handlebar Bushing 78 2 Wave Washer
35 2 Guard Fastener 79 2 Black Pedal Washer
36 1 Fan Axle 80 1 Ground Wire
37 2 Fan Bearing 81 4 M8 x 20mm Button Bolt
38 2 Adjustment Bracket 82 1 Crank
39 1 Extension Wire 83 2 Snap Ring
40 1 Idler Arm 84 2 M8 x 16mm Patch Screw
41 2 Crank Cover 85 2 M8 Washer
42 2 Pedal Spring 86 2 Custom Washer
43 2 Pedal Bushing * - Assembly Tool
44 2 Pedal Spacer * - User's Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing, call 1-888-533-1333. *These parts are not illustrated.
