No. LED COLOUR STATUS DESCRIPTION
1 Mains GREEN
ON AC input OK
OFF AC disconnected
Quick ashing (ash twice every second) AC input abnormal
2 Starter Bat GREEN
ON Starter battery charging the battery
Slow ashing (ash once every second) The input of the Aux is normal but it is charged by the
AC
Quick ashing (ash twice every second) Starter battery input error
OFF Starter battery disconnected.
3 PV GREEN
ON PV charging the battery
Slow ashing (ash once every second) The input voltage of the PV is normal but it is charged
by the AC or Starter battery
Quick ashing (ash twice every second) PV input error
OFF PV disconnected
4 CHG GREEN
ON Battery charged
Flashing (ash once every second) Battery charging
Slow ashing (1 second on 2 seconds off) Battery discharge
OFF Battery disconnect
5 FAULT RED
ON Short circuit
1 ash Service battery voltage low
2 ash Service battery voltage high
3 ash Over temperature (heat sink)
4 ash Bulk charge timeout
5 ash VCR anomaly
6 ash Over temperature (ambient)
8 ash BMS Over-Voltage Protection
Table 9 LED indicator description of PM235

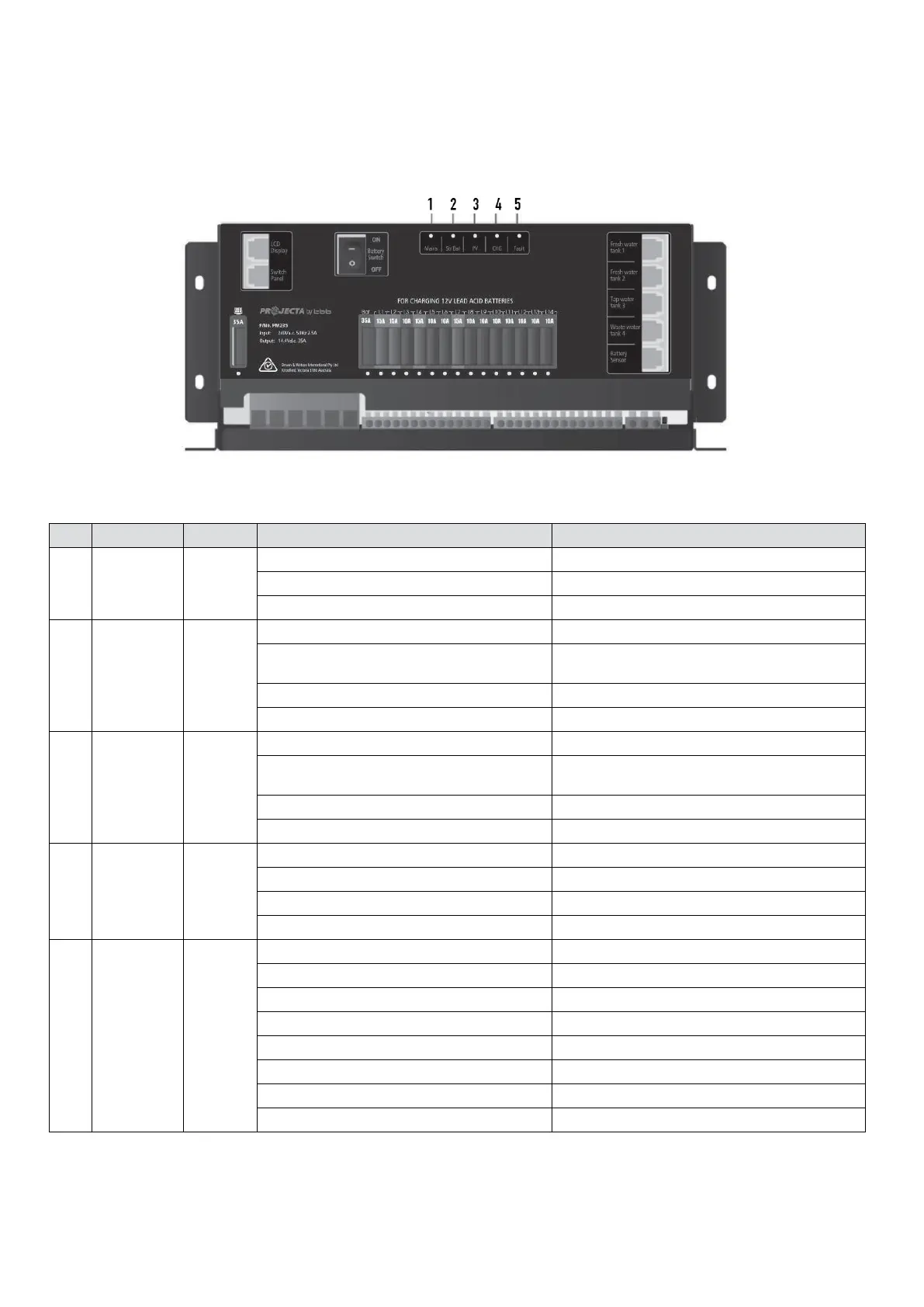

Figure 21 An overview of PM235
5. DISPLAY
5.1 PM235 Master Power Unit
