1. SYSTEM INTRODUCTION – PM200
PM200 is designed for use in caravans or motor homes. The unit has integrated functions such as: battery charger, distribution blocks,
PWM solar charge controller, charging relay, battery low voltage protection, water pump controller, water tank indicator and LED Display.
The PM200 is designed for an easy installation and a user-friendly interface.
SYSTEM COMPONENTS:
1. PM235 Master power unit
2. PMSWLED-2 LED display
3. PMWS200 or PMWS400 Water tank sensor (Not supplied)
4. Cables (Refer to Chapter 4.1 or the cable list)

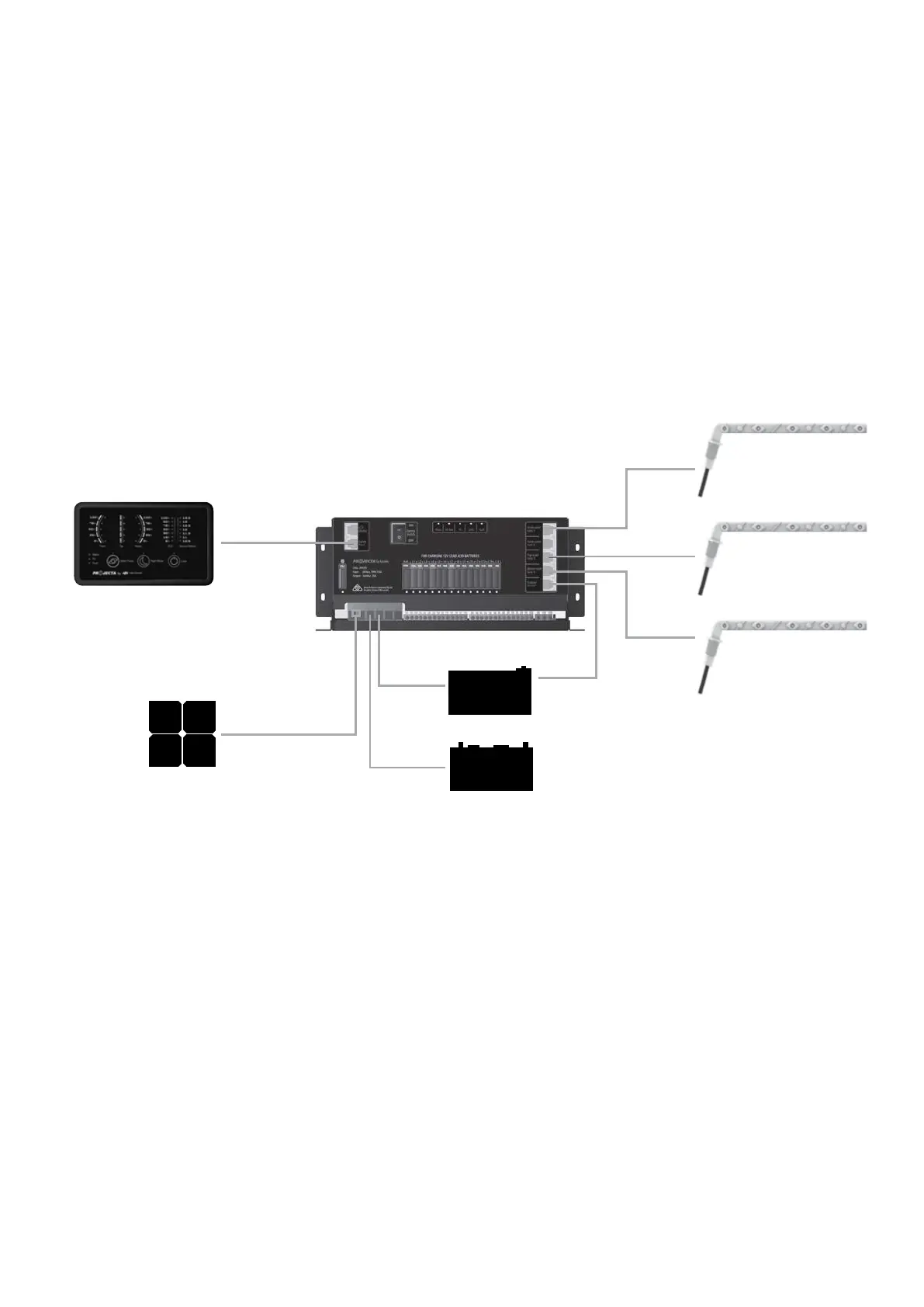

Figure 1 System Components for PM200
P/No. PMSWLED-2
Waste Water Tank Probe
(Optional)
P/No. PMWS200 or PMSW400
Tap Water Tank Probe
(Optional)
P/No. PMWS200 or PMSW400
Fresh Water Tank Probe
(Optional)
P/No. PMWS200 or PMSW400
Battery Temperature
Sensor P/No. PMBS
Solar
Service Battery
Starter Battery
P/No. PM235 Transformer Unit
To Next Page
