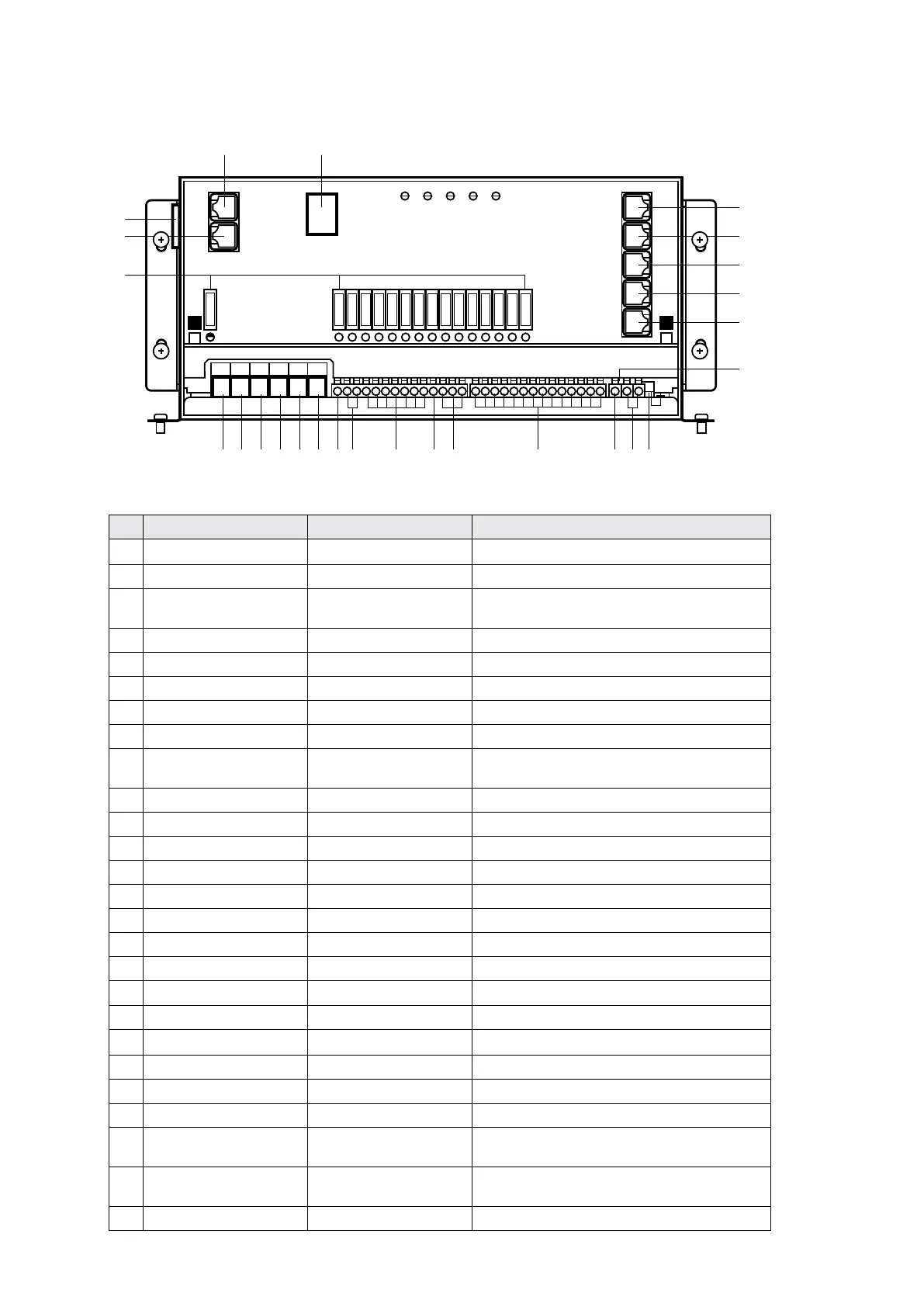

Figure 8 Front panel of PM235
Table 5 Categorised outputs
N
O
LABEL DEFINITION DESCRIPTION
1 AC Mains AC input port
2 Ambient Temp Sensor Comm port Connect to switch panel
3 LCD Display Comm port Connect to Monitor
(Monitor is not available in PM200)
4 Power Switch Service battery switch Manual battery switch
5 Fresh Water Tank 1 Connect to fresh water tank 1
6 Fresh Water Tank 2 Fresh water tank 2 is not available in PM200
7 Tap Water Tank Connect to tap water tank
8 Waste Water Tank Connect to waste water tank
9 Battery Sensor For voltage and
temperature compensation
Connect to service battery+
10 PV+ Solar input Connect to PV+ terminal
11 PV- Solar input Connect to PV- terminal
12 Starter Bat+ Starter battery+ Connect to starter battery+ (<16Vdc)
13 Service Bat+ Service battery+ Connect to service battery+ (<16Vdc)
14 Starter Bat- Starter battery- Connect to starter battery-
15 Service Bat- Service battery- Connect to service battery-
16 L1+ Step Connect to load of class D
17 L2+ ~ L3+ Connect to load of class C
18 L4+ ~L10+ Connect to load of class B
19 L11+ Water pump Connect to water pump+
20 L12+ ~ L14+ Connect to load of class B
21 L1- ~ L14- Connect to DC load -
22 D+ Point D+ input Connect to D+
23 Remote Switch Terminal block Connect to remote switch
24 Select Switch Dip switch Select local switch or remote switch
(NOTE: open the upper cover board to operate)
25 Setting Dip switch Set the battery type and capacity
(NOTE: open the upper cover board to operate)
26 Fuse Fuse and fuse failure indication
3. STRUCTURE AND INSTALLATION
3.1 PM200 Master Power Unit
1
3 4
2
26
5
6
7
8
9
10 11 12 13 14 15 16 17
19 20 2118
25
22 2324
To Next Page
