1.1 Features
• Smart battery charger 12V 35A (20A for charging current)
– Multi stage adaptive charging algorithm
– Active Power Factor Correction (PFC) charging
– Temperature compensation charging
– Voltage compensation charging
• Float charge for starter battery
• Solar charge controller (PWM), 30A
• 14 built-in outputs
– 14 built in fused outputs
• Charging from Alternator at 12V 60A - 60A continuously, 100A 30mins
• Battery Low Voltage Protection
• Built-in battery switch to isolate the battery when in storage
• Support external remote battery switch
• Built-in shunt for precise battery measurement
• 1 water pump control with up to 3 connections for water sensors
• Thermal controlled fan
• Spring terminal & screw terminal
• T-bus compatible

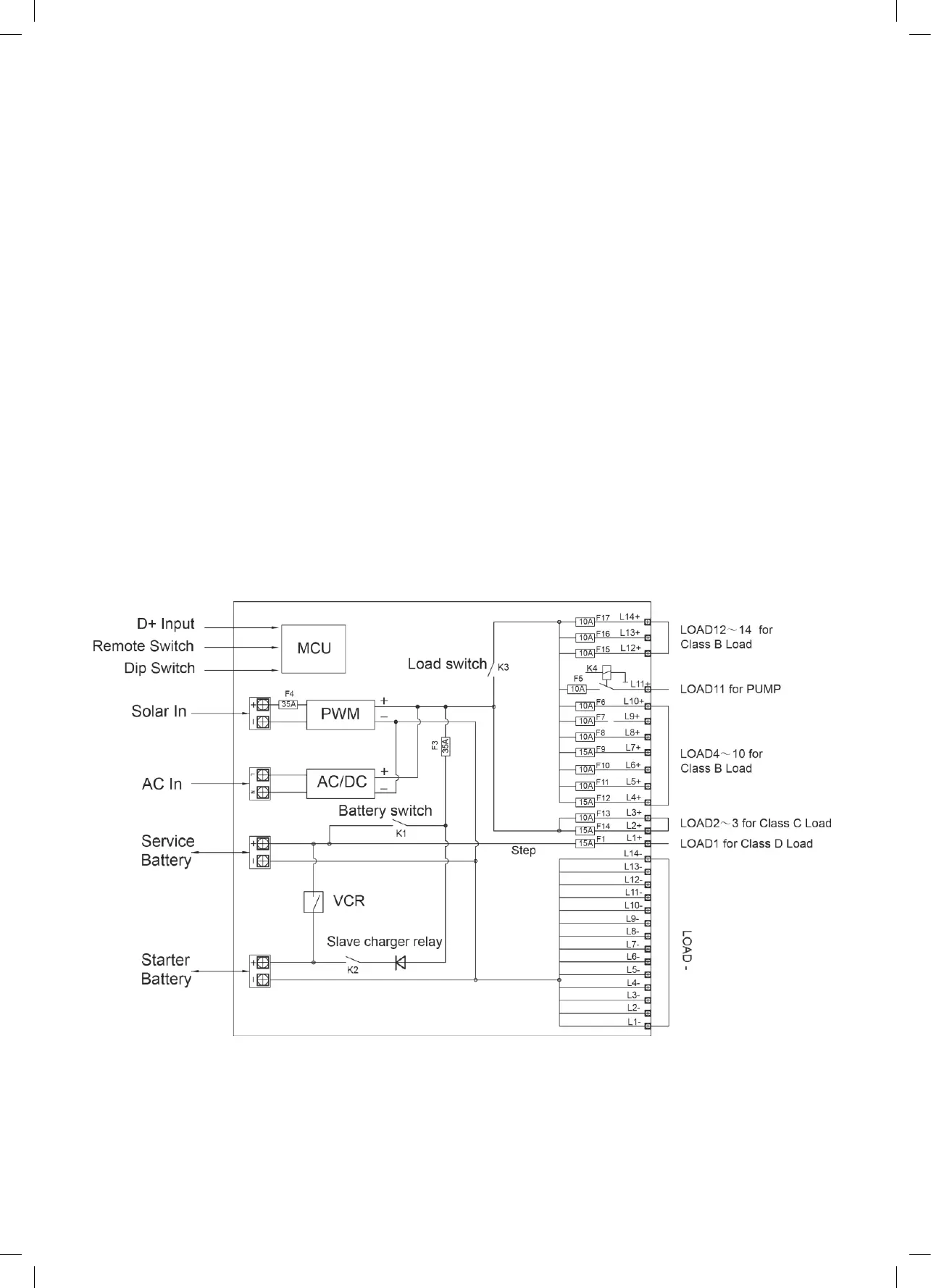

Figure 2 System Schematic
5
