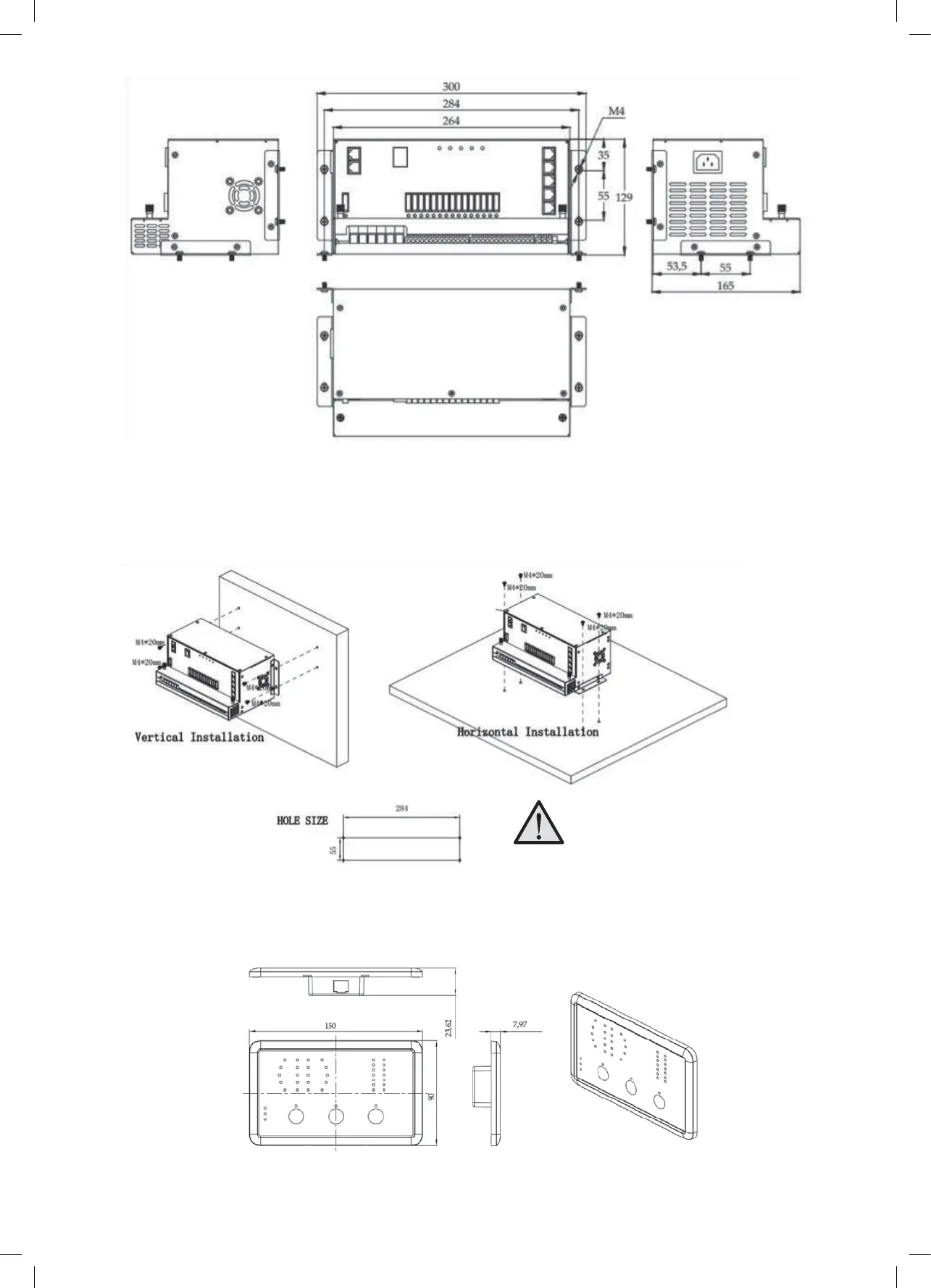

3.2 L.E.D Display
Figure 11 Dimension of PMSWLED (Unit: mm)
10
Installation:
PM235 can be installed on a horizontal surface or vertically on a wall. Please see following instructions:
Figure 10 Installation of PM235 (unit: mm)
Ensure clearance on both sides of PM235 unit
upon installation. A recommended clearance of
5cm on each side.
Figure 9 Dimension of PM235 (unit: mm)
