1.2 L.E.D Display

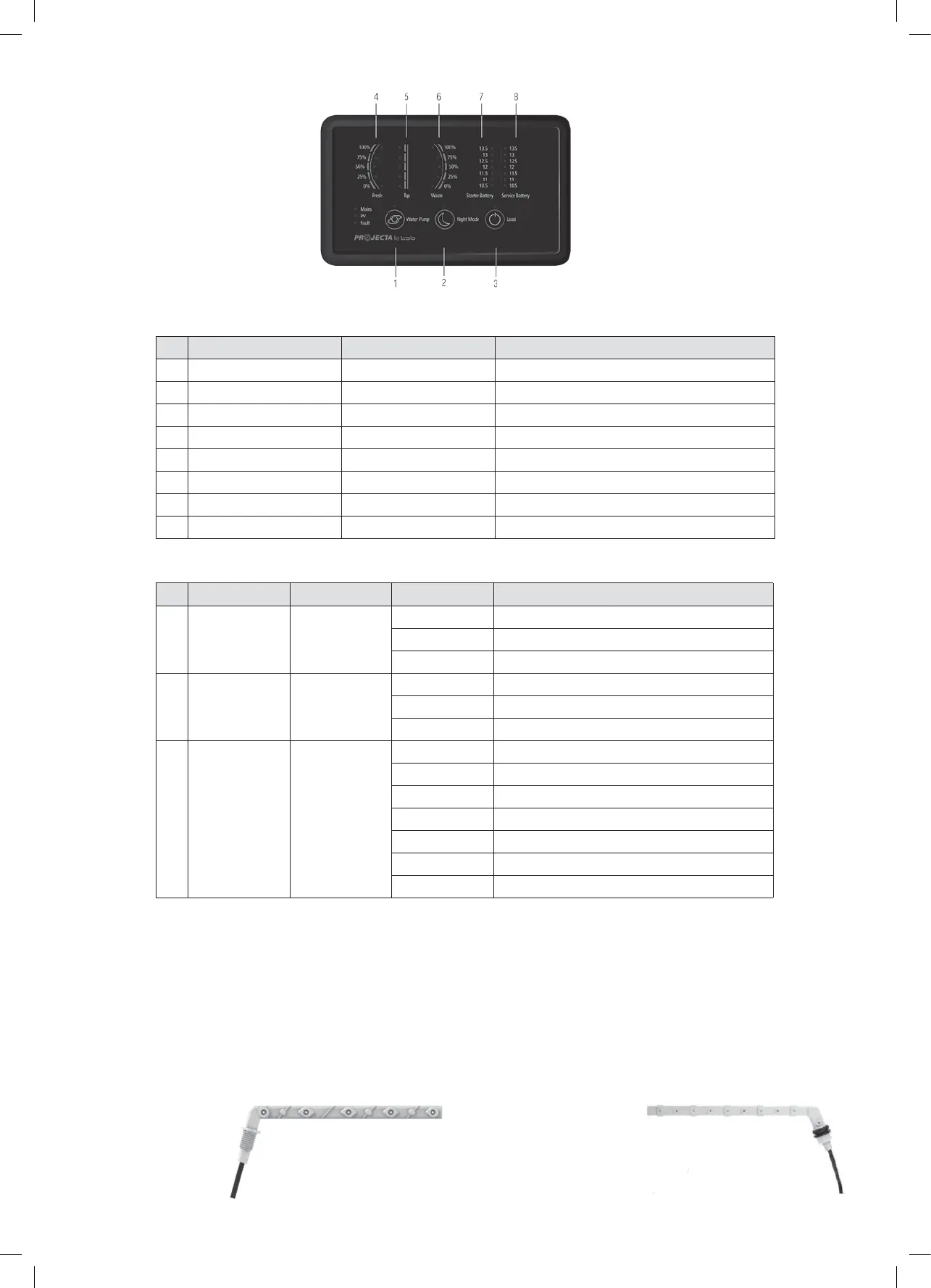

Figure 3 PMSWLED switch panel
Table 1 Front panel of PMSWLED
Table 2 LED indication of PM260
1.3 Water Tank Probe
For PM200, max three probes can be controlled in the system.
NOTE: Always check the probe required for the water tank before purchase. If the probe included does not fit the water tank,
please contact the seller.
There are 2 probe styles:
PMWS200: PMWS400:
• Side installation • Side installation
• Suitable for water tank • Suitable for water tank
• Depth >200mm • Depth 300-400mm
Figure 4 PMWS200
Figure 5 PMWS400
N
O
LABEL TYPE DESCRIPTION
1 Water pump DC load control Load control, on/off control
2 Night mode Scene mode Refer to 2.10
3 Load DC load control Load control, on/off control. Refer to 2.7
4 Fresh water tank Sensor Detect the level of fresh water tank
5 Tap water tank Sensor Detect the level of tap water tank
6 Waste water tank Sensor Detect the level of waste water tank
7 Starter battery Voltage Detect the voltage of starter battery
8 Service battery Voltage Detect the voltage of service battery
N
O
LABEL COLOUR STATUS DESCRIPTION
1 Main
Green
ON Battery charged or power supply mode
Flash Battery charging under grid electricity
OFF NO AC input
2 PV
Green
Solid Battery charged
Flash Battery charging under solar energy
OFF NO solar input / AC charging / Aux charging
3 Fault
Red
ON Short circuit
1 flash Service battery voltage low
2 flash Service battery voltage high
3 flash Over temp (heat sink)
4 flash Bulk charge timeout
5 flash VCR anomaly
6 flash Over temp (environment)
