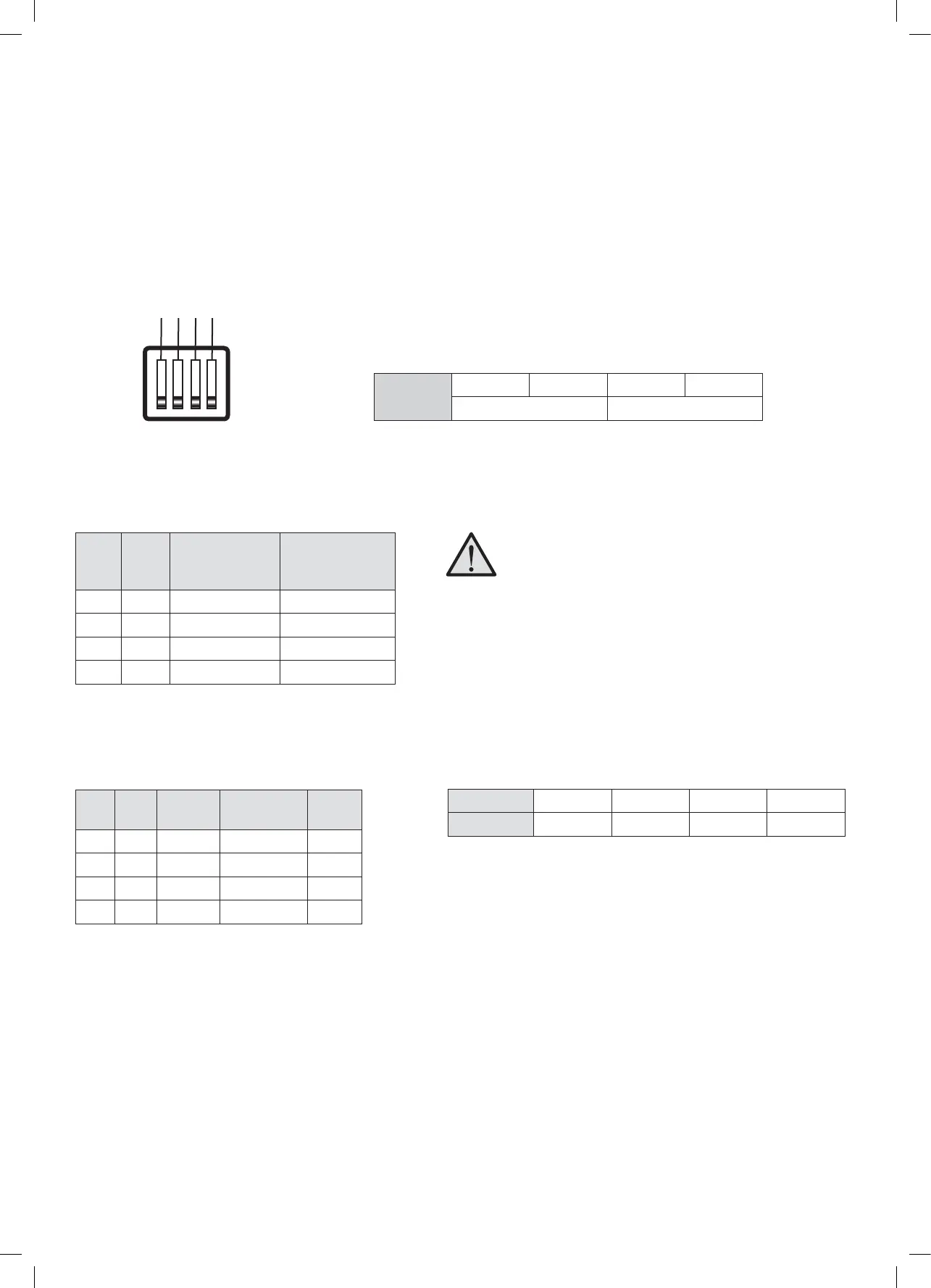

16
Figure 23 Dip Switch of PM200
Table 12 Dip Switch definition
6. OPERATION
6.1 Configuration on PM200
You could configure the battery type and capacity through PM235 master power unit.
6.1.1 Battery Capacity and Battery Type
There is a dip switch for you to set battery capacity and battery type.
DIP
SWITCH
1234
Battery Capacity Battery Type
Dip switch definitions:
Table 13 Battery Capacity setting by dip switch
Table 15 Factory default setting
DIP SWITCH
1234
STATUS
OFF OFF OFF OFF
Factory default setting:
Configure the max charging current of PM235:
Configure the battery type connected:
DS1 DS2 BATTERY
CAPACITY
CHARGING
CURRENT OF
PM235
ON ON 50Ah 5A
ON OFF 100Ah 10A
OFF ON 150Ah 15A
OFF OFF 200Ah 20A
When choosing max charging current, please take
into consideration the consumption of the DC load
connected with the system.
DS3 DS4 BATTERY
TYPE
ABSORPTION FLOAT
OFF OFF AGM 14.4V 13.5V
OFF ON GEL 14.1V 13.5V
ON OFF LiFePO
4
14.4V 13.5V
ON ON WET 14.7V 13.7V
Table 14 Battery Type setting by dip switch
123 4
ON
OFF
