1. System Introduction – PM200
PM200 is designed for use in caravans or motor homes. The unit has integrated functions such as: battery charger, distribution blocks,
PWM solar charger controller, charging relay, battery low voltage protector, water pump controller, water tank indicator and LED Display.
The PM200 is designed for an easy installation and a user-friendly interface.
SYSTEM COMPONENTS:
1. PM235 Master power unit
2. PMSWLED LED Display
3. PMWS200 or PMWS400 Water tank sensor (Not supplied)
4. Cables (Refer to Chapter 4.1 for the cable list)
4
Fresh Water Tank Probe
(Not supplied)
P/no. PMWS200 or
PMWS400
Tap Water Tank Probe
(Not supplied)
P/no. PMWS200 or
PMWS400
Waste Water Tank Probe
(Not supplied)
P/no. PMWS200 or
PMWS400
Service Battery
Battery Temperature
Sensor P/no. PM30
Starter Battery

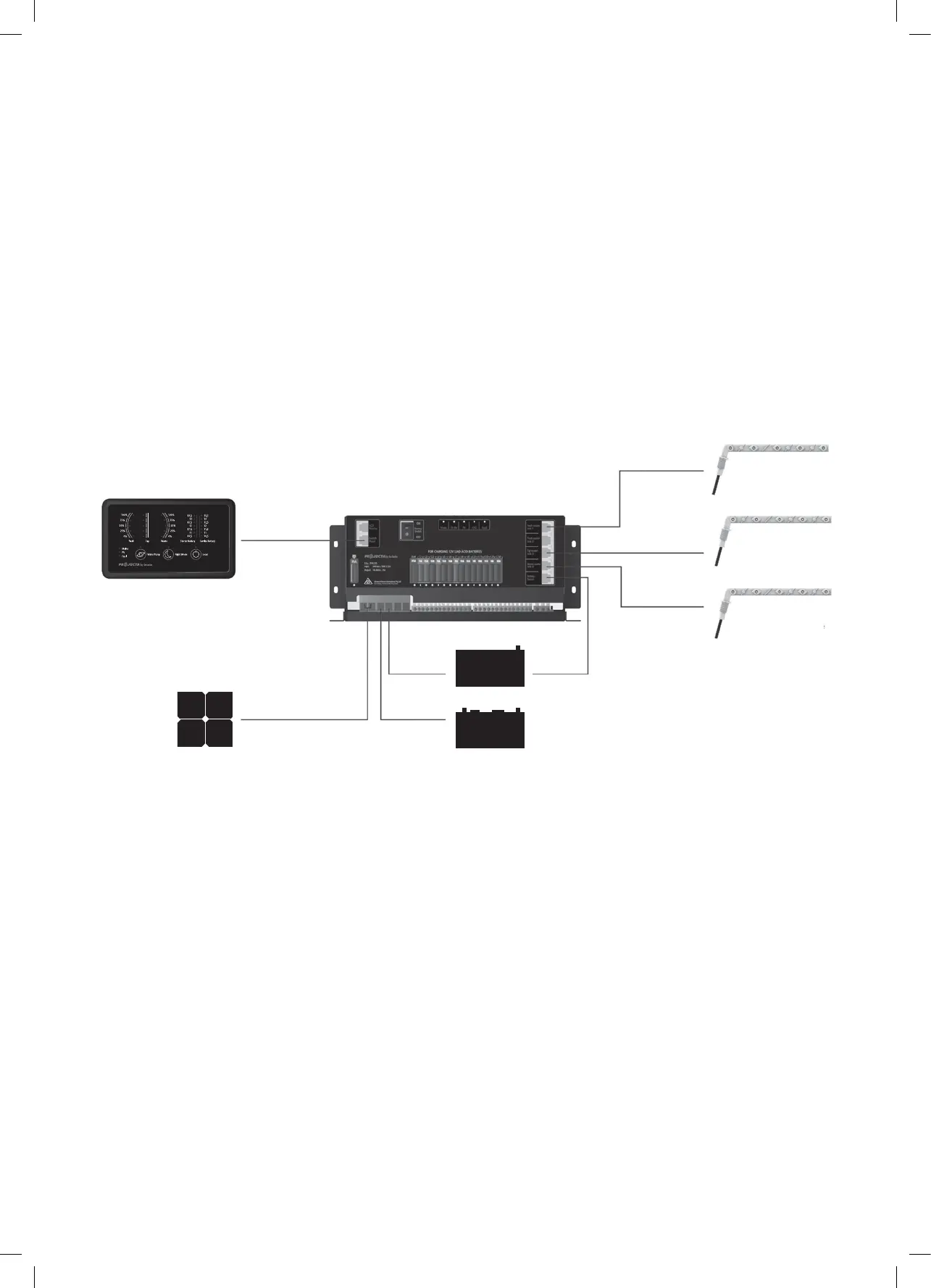

Figure 1 System Components for PM200
P/No. PM235
P/No. PMSWLED
PV
To Next Page
