CROMOBEAM250
20
4.3 REPLACEMENT OF THE GOBOS

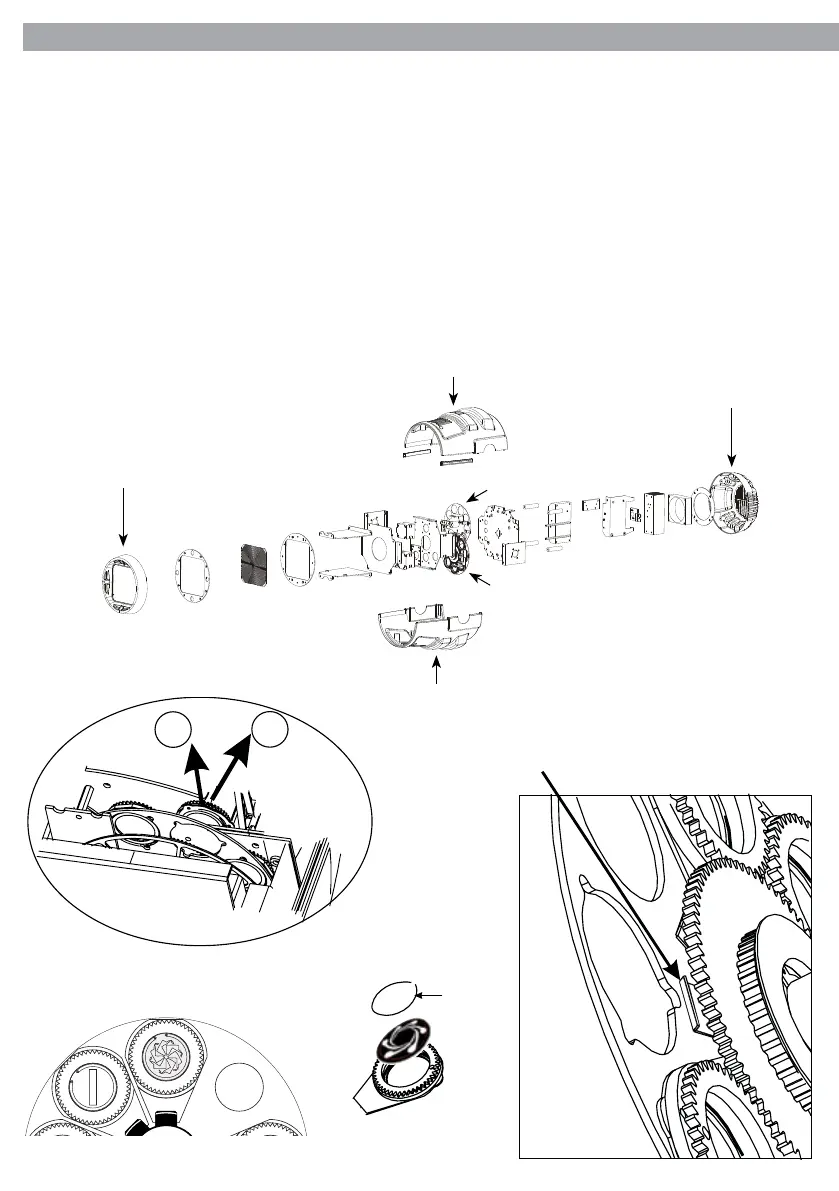

The rotating gobos can be replaced and e. g. be exchanged for individual gobos.
1. Disconnect the main plug from the socket.
2. Release the screws and remove the part (16), (17) and then the part (18), (19) of the pan head.
3. Turn the gobo wheel as indicated in g.10 in such a way that the gobo to be replaced is on top.
4. Push the gobo plate follow the direction A, and pull out the plate follow the direction B (g.11).
5. Move the ring over the gobo away, so you can take out the gobo.
6. Never release the screws on the gobo support; they keep the ball bearing together!
7. Insert the new gobo into the gobo support and fasten it with the retaining ring. If the gobo has a side
which is darker or more matt, this side must be directed towards the lamp.
8. Make sure the gobo plate is installed under the pressure plate (C).
9. Install all parts on the original position and retighten the screws.
B
A
Fig.12
Fig.11
Ring
Fig.10
Pressure plate
(C)
16
17
18
19
Ruota
gobos
Ruota
colori
Fig.9
