PROLiNK® PEN1201 Wireless-N 300Mbps Range Extender II
10

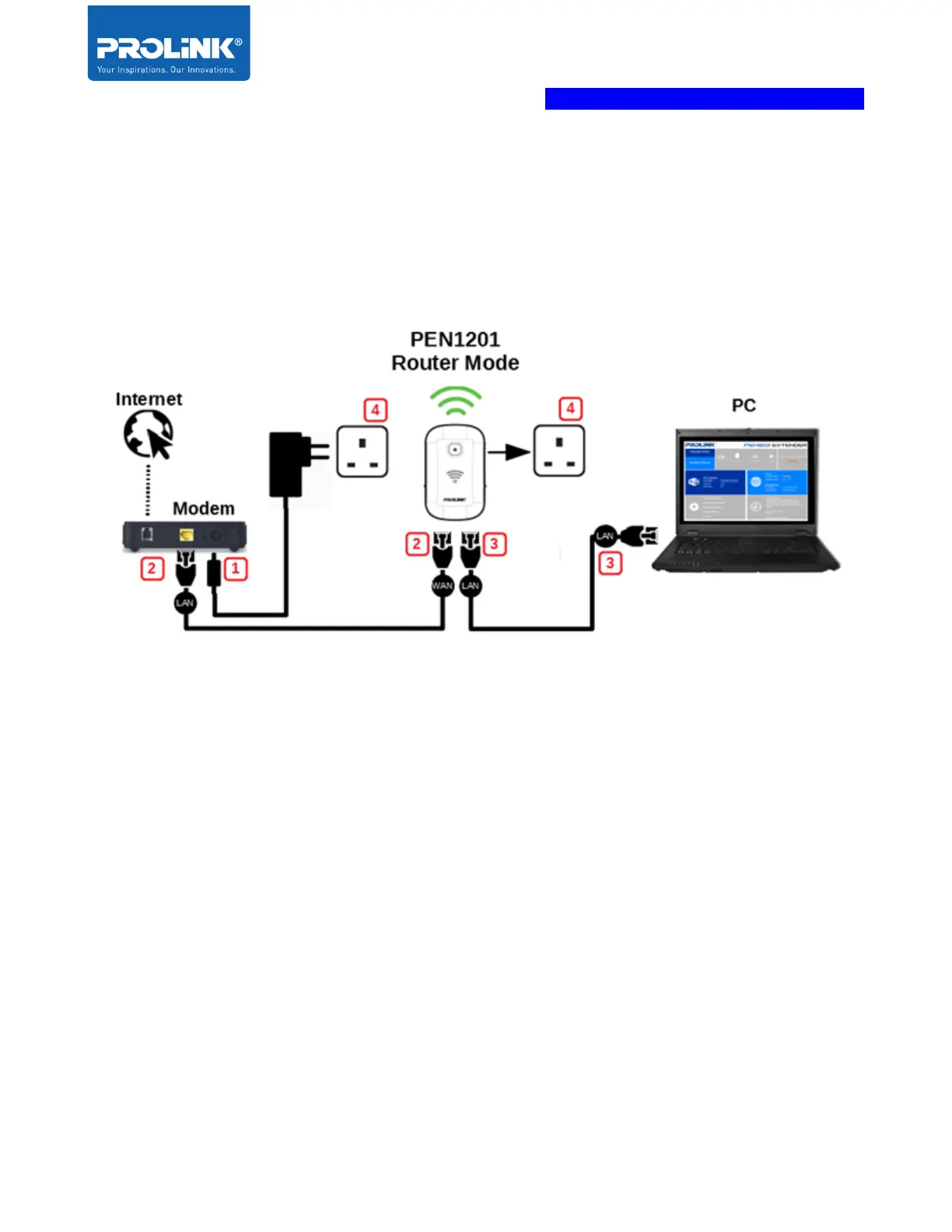

Router Mode Setup
The following is a step to setup Extender PEN1201 as Router Mode. If your internet connection
source is coming from ADSL/Modem, follow the following step below to complete the hardware
connection.
1. Turn OFF modem.
2. Connect Ethernet cable between modem Internet (LAN) port to PEN1201 WAN Port.
3. Connect Ethernet cable between Computer LAN port to PEN1201 LAN port.
4. Ensure the PEN1201 Operation Mode Switch is set to “Router” Turn ON power for
modem and PEN1201.
