8
4.4.3 Wiring External Batteries
Unit supports 48Vdc battery. Connect all battery packs as below chart. It’s suggested to connect at least 100Ah
capacity battery.

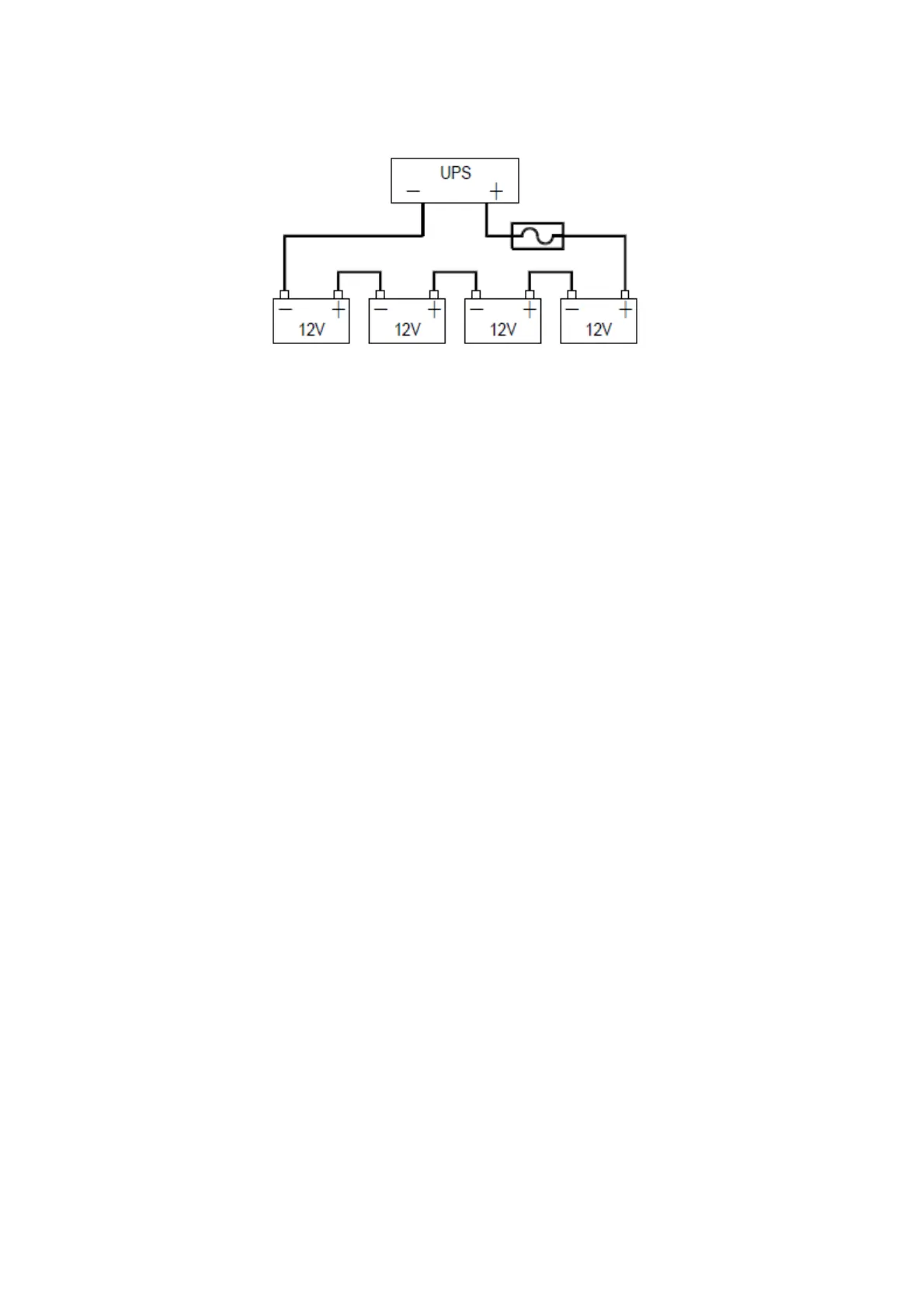

Figure 7: Battery Connection Chart
