PROLiNK PRO2000LD User Manual

19

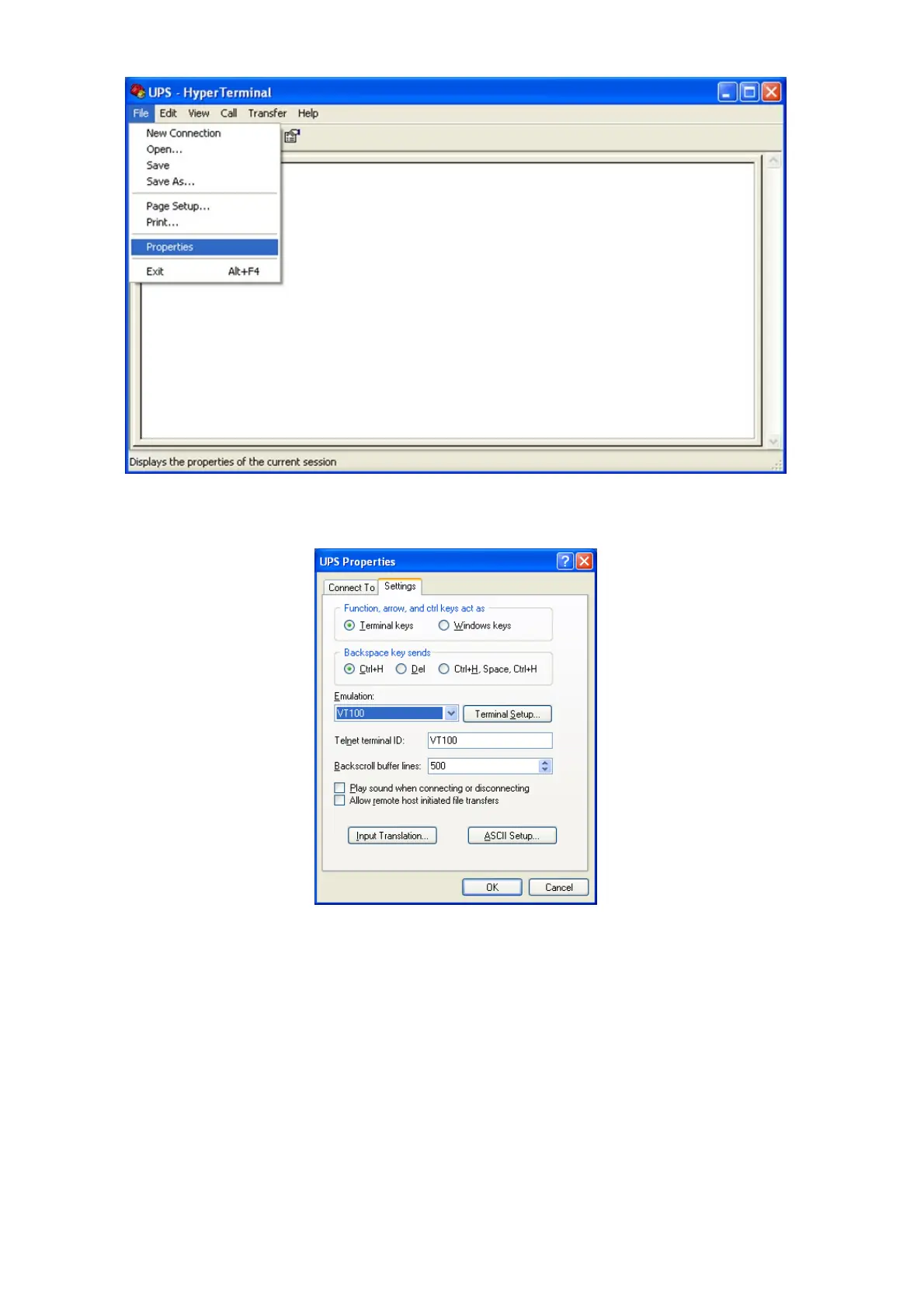

Figure 16: HyperTerminal Screen
Step 6: The [Name of Unit] Properties screen will pop up as shown in Figure 17. Click on the Settings tab. Select
all columns as below figure and click ASCII Setup button.
Figure 17: ASCII Properties Screen
Step 7: Set up all columns in the ASCII Setup screen as shown in Figure 18. Click OK and HyperTerminal setup
is completed.

PROLiNK PRO2000LD Specifications

General

Brand	PROLiNK
Model	PRO2000LD
Category	UPS
Language	English
