Page 19
1 Knob
2 Clamping screw
3 Chamber cover
4 O-ring
5 Outlet
6 Centring pin
7 Vent/discharge
(depending on installation position)
8 Securing element
9 UV sensor
10 O-ring
11 Protective tube
12 UV lamp
13 Flushing connection
14 Inlet
15 Wiper element
16 Retaining plate with wiper rod
Detail X
Assembly and Installation
5 Assembly and Installation
Detail Y
15
11
16

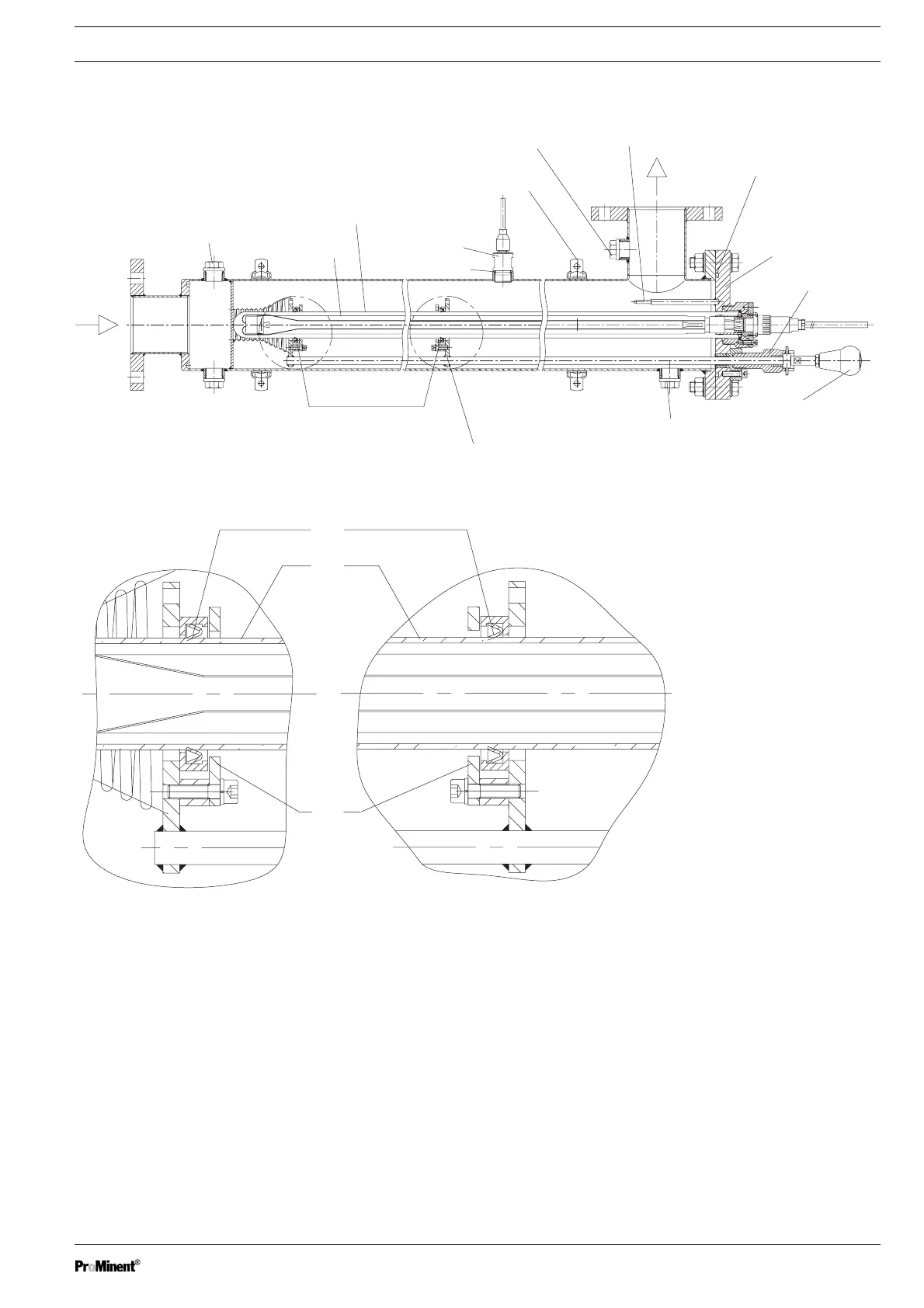

Fig. 2: Design of radiation chamber
with details X and Y
13
12
11
9
10
8
7
6
5
4
3
14
xy
7
15
16
13
1
2
