8.2 Dimensions
R
R
R
RR
R
R
R
Technical Data

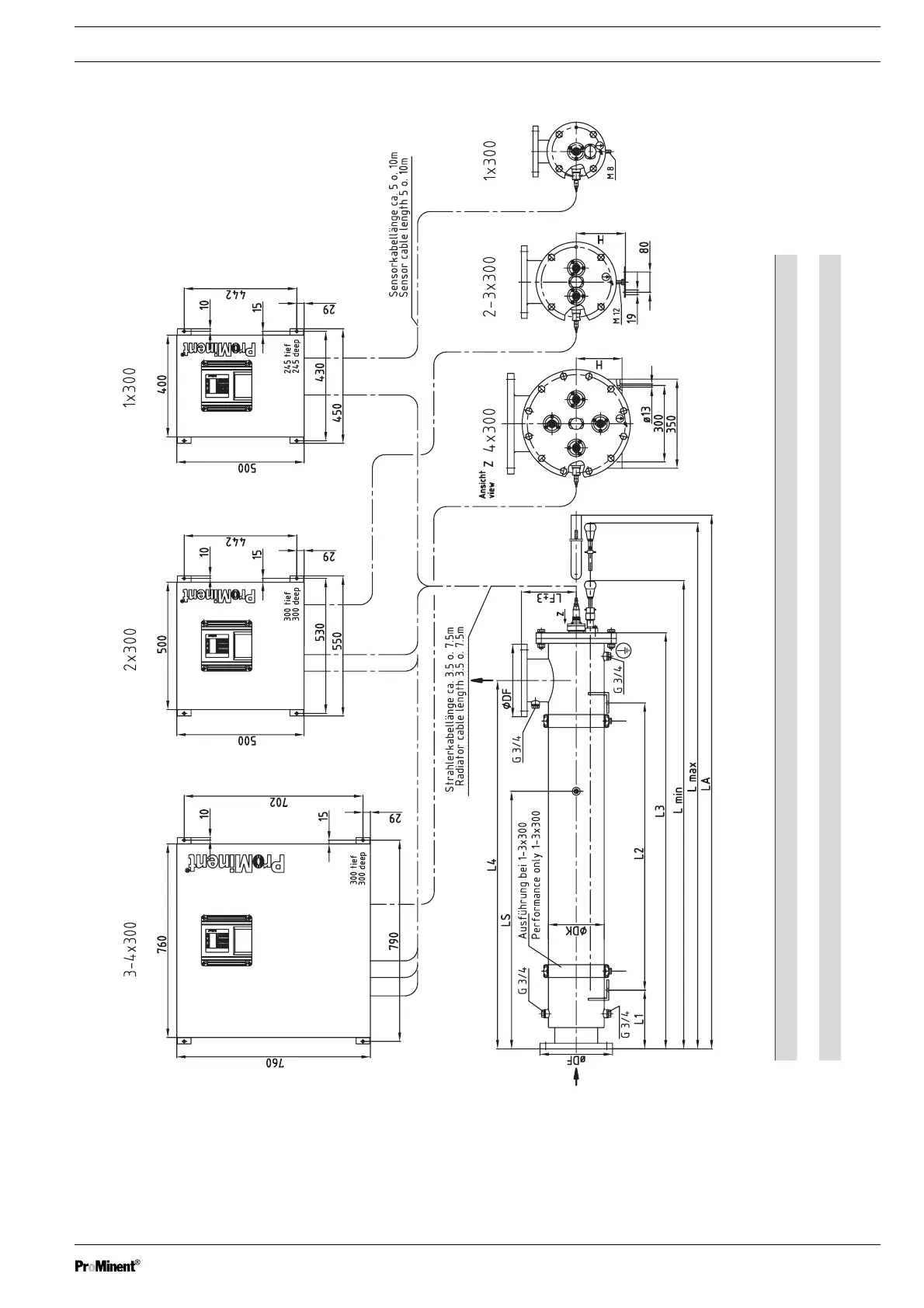

Dimensions – Dulcodes R (in mm)
Type L1 L2 L3 L4 LS Lmin Lmax LA LF H DF DK Flange Volume (l)
1*300R - - 1562 1450 940 1767 2370 3000 180 - 200 139.7 DN 80x88.9 22
2*300R - - 1633 1446 1011 1838 2441 3070 215 193 285 219.1 DN 150x168.3 59
3*300R - - 1638 1431 1016 1843 2446 3075 250 220 340 273 DN 200x219.1 92
4*300R 261 1154 1652 1415 1030 1857 2460 3089 280 180 395 329.9 DN 250x273 133
