23
D1C2-Cl-025-GB
Access to all setting menus can be blocked with an access code !
servomotor
setting ?
dosing:
control range:
0 % to
operating range
chlor
100 %
Only with servomotor
servomotor
current position:
servomotor
open ?
servomotor
please wait !
open
servomotor
Please wait !
close
servomotor
value take over ?
opened !
servomotor
value take over ?
closed !
servomotor
close ?
servomotor
current position:
OK
= automatic timing
setting

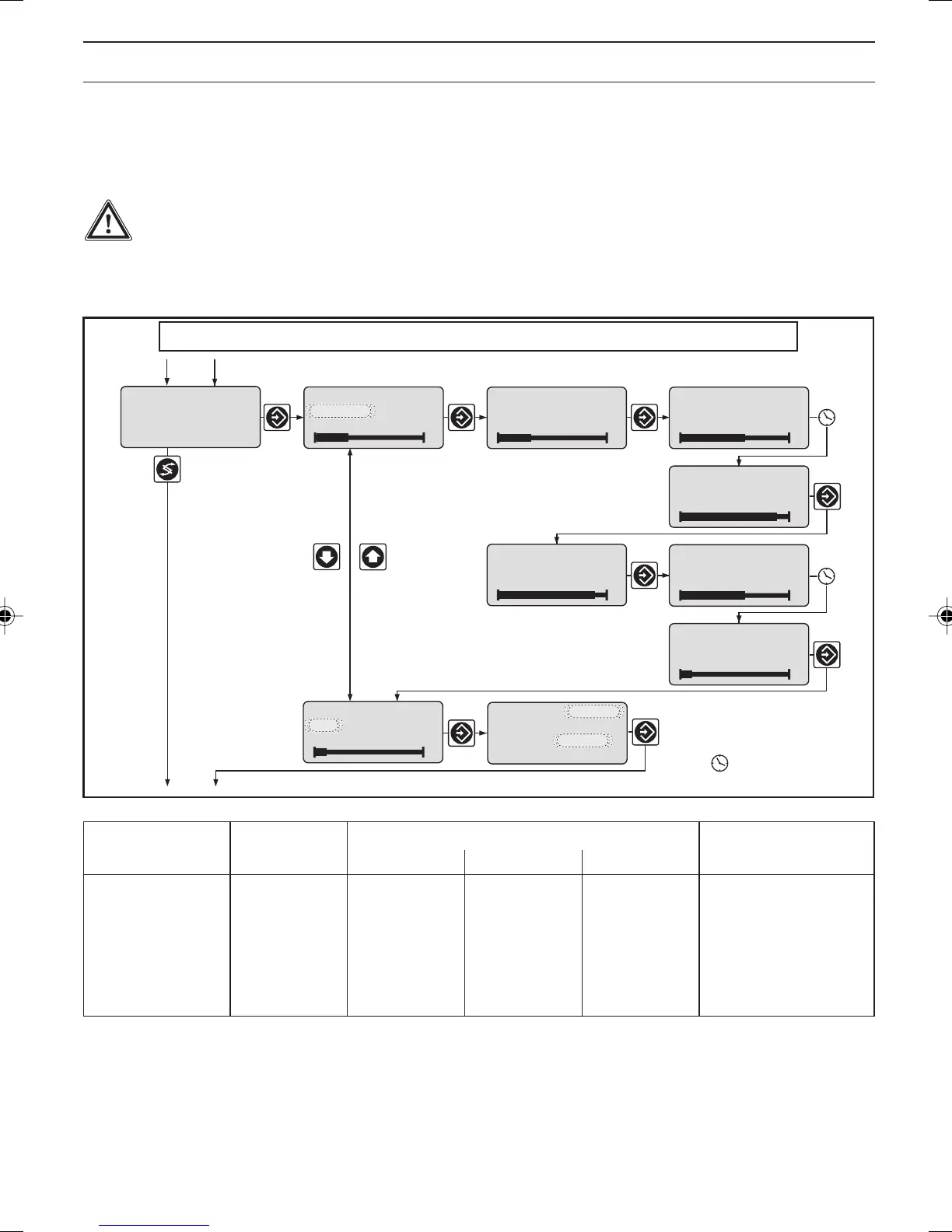

Complete Operating Menu / Description
Servomotor
The operating range is defined by the total resistance range of the feedback potentiometer. The
maximum limit of the range actually used is set by defining the control range.
IMPORTANT
• To ensure correct function, the set duration of the stroke position motor should be more
than 25 sec for 0…100 % of setting range.
• Stroke adjustment motor actuation must be carried out with the same care as the
calibration of a sensor!
Possible values
Initial value Increment Lower value Upper value Remarks
Servomotor Setting Setting
ok
off
Control direction Chlorine Chlorine
Dechlorine
Control range 100 % 1 % 10 % 100 % in % of operating range
NOTE
• When the wide bar is as right as it will go the stroke adjustment motor is fully open.
• The permanent display shows to what degree the motor has opened in % (the greater the
percentage, the farther open the stroke adjustment motor).
BA_DM_173_03_09_GB.p65 30.03.2009, 12:10 Uhr23
