8
33.0°C 33.0°C
calibration pH
probe in buffer
2 !
4.00 pH
calibration pH
calib. 2 active
please wait !
4.00 pH
calibration pH
buffer1:
buffer2:
temp.:
12.30 pH
Only with correction variable pH
correcting value
setting ?
correcting value
pH
limit 2
1.50 ppm
upper
limits
setting ?
Control with dead zone
For normal control
PID control
Proportional control
setpoint
1.00 ppm
setpoint 2 upper
ctrl. parameter
Ti =
Td =
xp =
setpoint 1 lower
10 %
ctrl. parameter
xp =
10 %
control
settings ?
Only with control
control
positive chlor
regulated value:
negative dechlor
manual dosing
control
current regulat.
value: 30 %
normal
15 %
regulated range
general setting
information
ident-code: D1CA
software version
DxCxxxxxxxxxx
D1C-A1 FW-5.00
alarm relay access c.:
=
=
operating menu:
active
5000
english
1.20 ppm
1.00 ppm
calibration pH
zero p.:
slope 25°C
0.0 mV
59.16 mV/pH
control
current regulat.
value: 30 %
with dead zone
control
current regulat.
value: 30 %
manual
Setting in
complete
operating
menu
or
or
For manual control
reduced
4.00 pH
4.50 pH
limit 1
0.10 ppm
lower
Permanent display 1
Permanent display 2
only with control
(w = setpoint)
ppm
0.45
calibration Cl
calibration Cl
DPD-value:
0.45
mea. val.
fd. fwd.:
reg. val.:
0.45 ppm
w: 1.00 ppm
ppm
70 %
59 %
zero p.:
slope:
4.00 mA
6.50 mA/ppm
Positive values of control variable:
Negative values of control variable:
calibration Cl
zero p.:
slope:
4.00 mA
6.75 mA/ppm
Chlorine
Dechlorine
(chlorine destruction)
Only with correction variable pH
33.0°C 33.0°C
calibration pH
zero p.:
slope 25°C
0.0 mV
59.16 mV/pH
calibration pH
probe in buffer
1 !
12.00 pH
calibration pH
calib. 1 active
please wait !
12.00 pH
calibration pH
buffer1:
buffer2:
temp.:
12.30 pH
manual
0 s
0 s
Number and scope of setting menus
is dependent on the device.
Access to setting menus can
be blocked with access code.

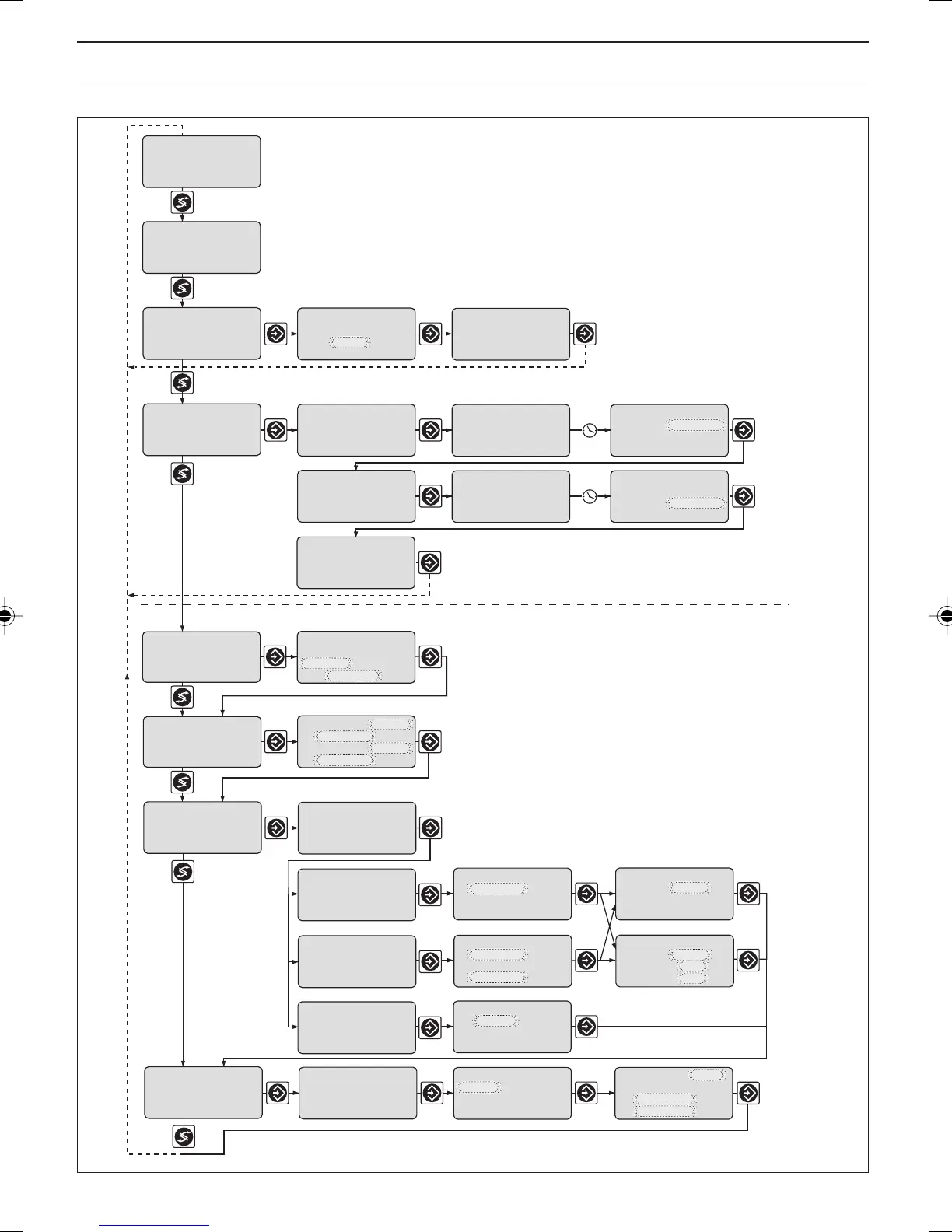

7 Restricted Operating Menu / Layout
D1C2-Cl-009-GB
BA_DM_173_03_09_GB.p65 30.03.2009, 12:10 Uhr8
