ProMinent DULCOMETER D1C User Manual

26
positive chlor
negative dechlor
control
control output
1.00 ppm
0 mA =
20 mA =
0.00 ppm
mA output 2
measured value
0%
0 mA =
20 mA =
100%
mA output 2
control output
D1C2-Cl-036-GB
0…20 mA
Access to all setting menus can be blocked with an access code !

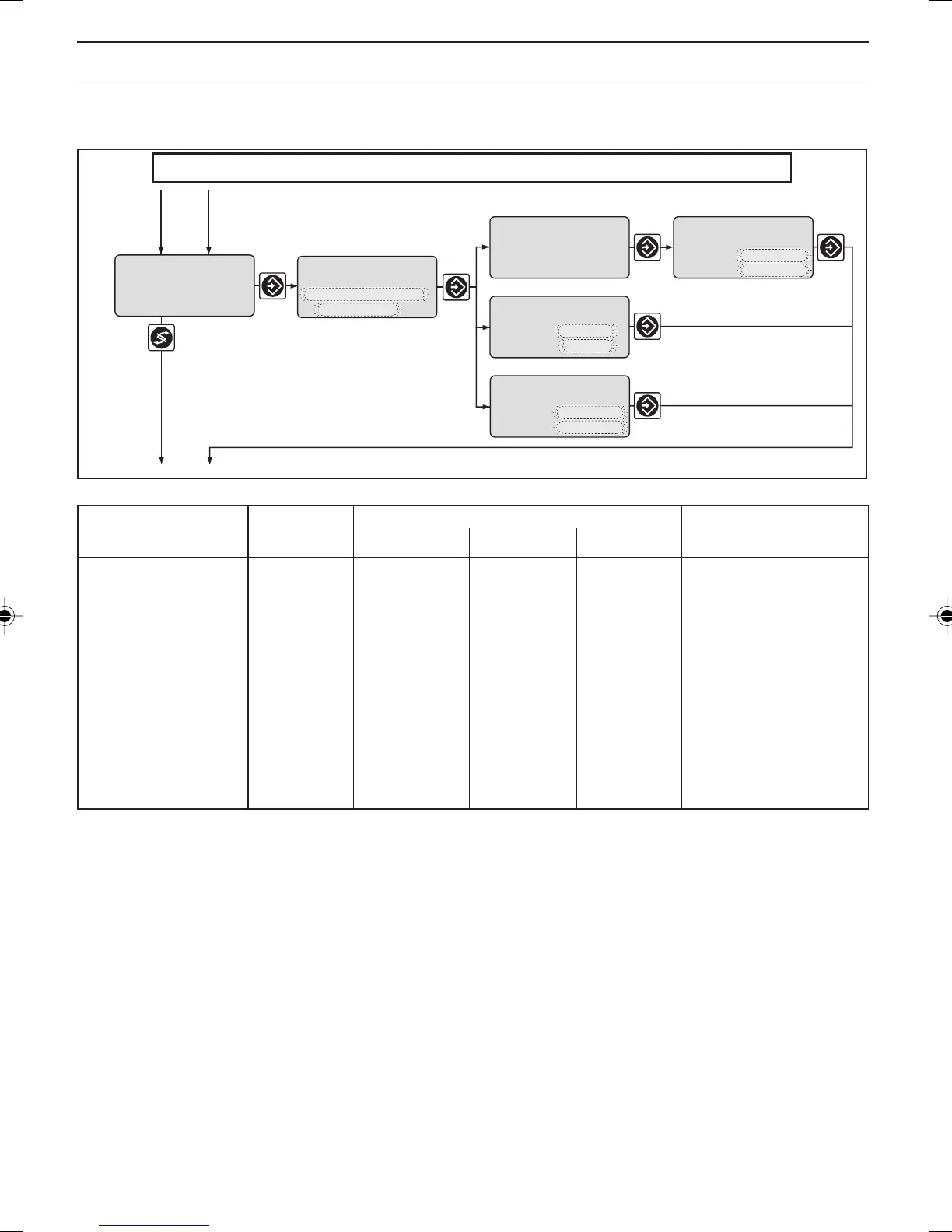

Control with standard signal
mA output 2
setting ?
Only with 2 standard signal outputs
mA output 2
measured value
mA output 2
9.50 pH
0 mA =
20 mA =
correcting value
5.00 pH
Only with correction value
Possible values
Initial value Increment Lower value Upper value Remarks
Variable allocation as per identity Measured value
code Control variable If control applicable
Correction value only with correction variable
Output range 0…20 mA 0…20 mA
4…20 mA
3.6/4 -20 mA Reduction to 3.6 mA when
alarm relay switches
(not limit-value violation)
Range measured value Measuring range 0.01 ppm 0 ppm 100 ppm Minimum range 0.1 ppm
Range control variable 0 %…+100 % 1 % -100 % +100 % Minimum range 1 %
Range correction value pH 5…9.5 pH 0.01 pH -2 pH 16
Standard signal output 2
Complete Operating Menu / Description
BA_DM_173_03_09_GB.p65 30.03.2009, 12:10 Uhr26
