Hydraulic installation situation
Please note the hydraulic fitting position indicated in Fig. 7.
It is essential that the following are avoided:
n Formation of gas bubbles
n The device running dry
n Stalling
n Turbulence

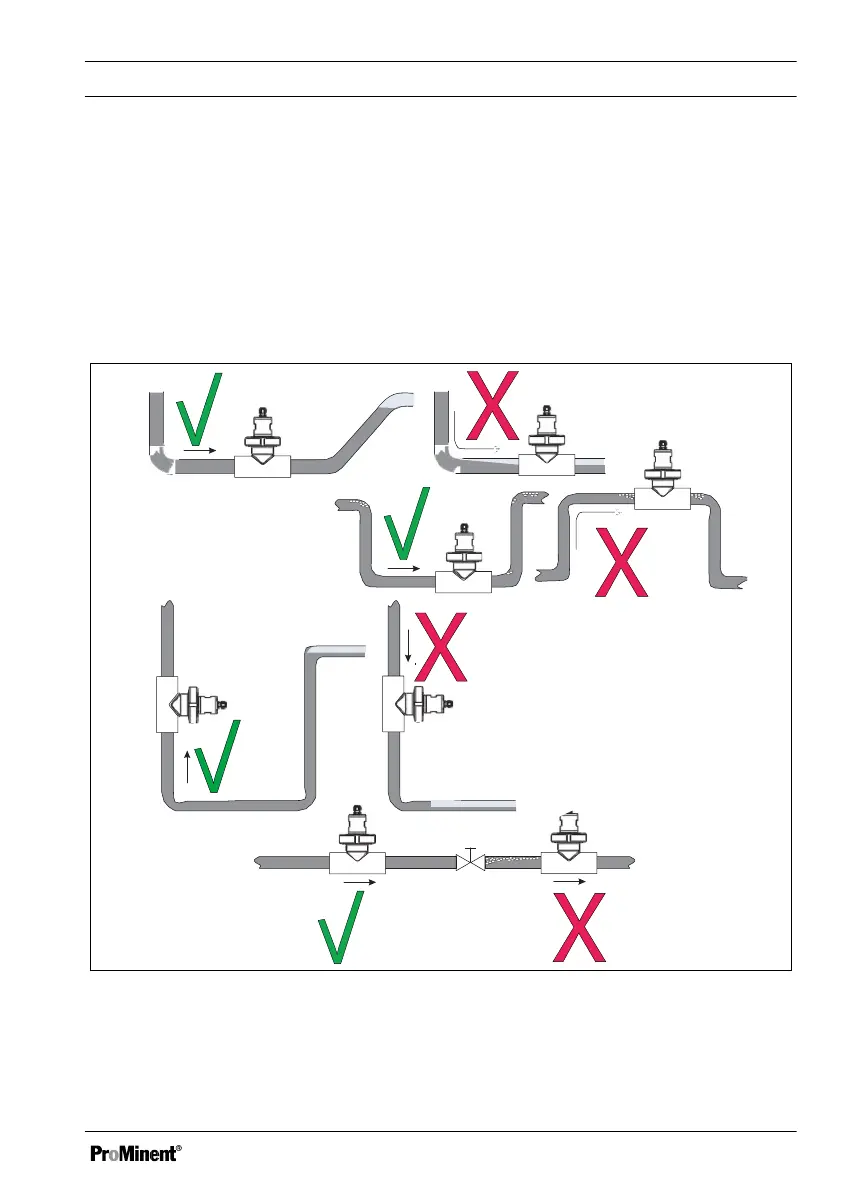

Fig. 7: Hydraulic fitting position / tick = OK, cross = not OK
Assembly and installation
21
