ProMinent Sigma/ 1 Basic S1Ba User Manual

17 Dimensional drawings
–
Compare the dimensions on the dimension sheet
and pump.
– All dimensions are in mm.
120
136
196
160
214
L
E
D
I
C
*
3
30
6.5
28
120 49
197
Ø16
K
F
Ø135
ØG
B
A
max.40
P_SI_0033

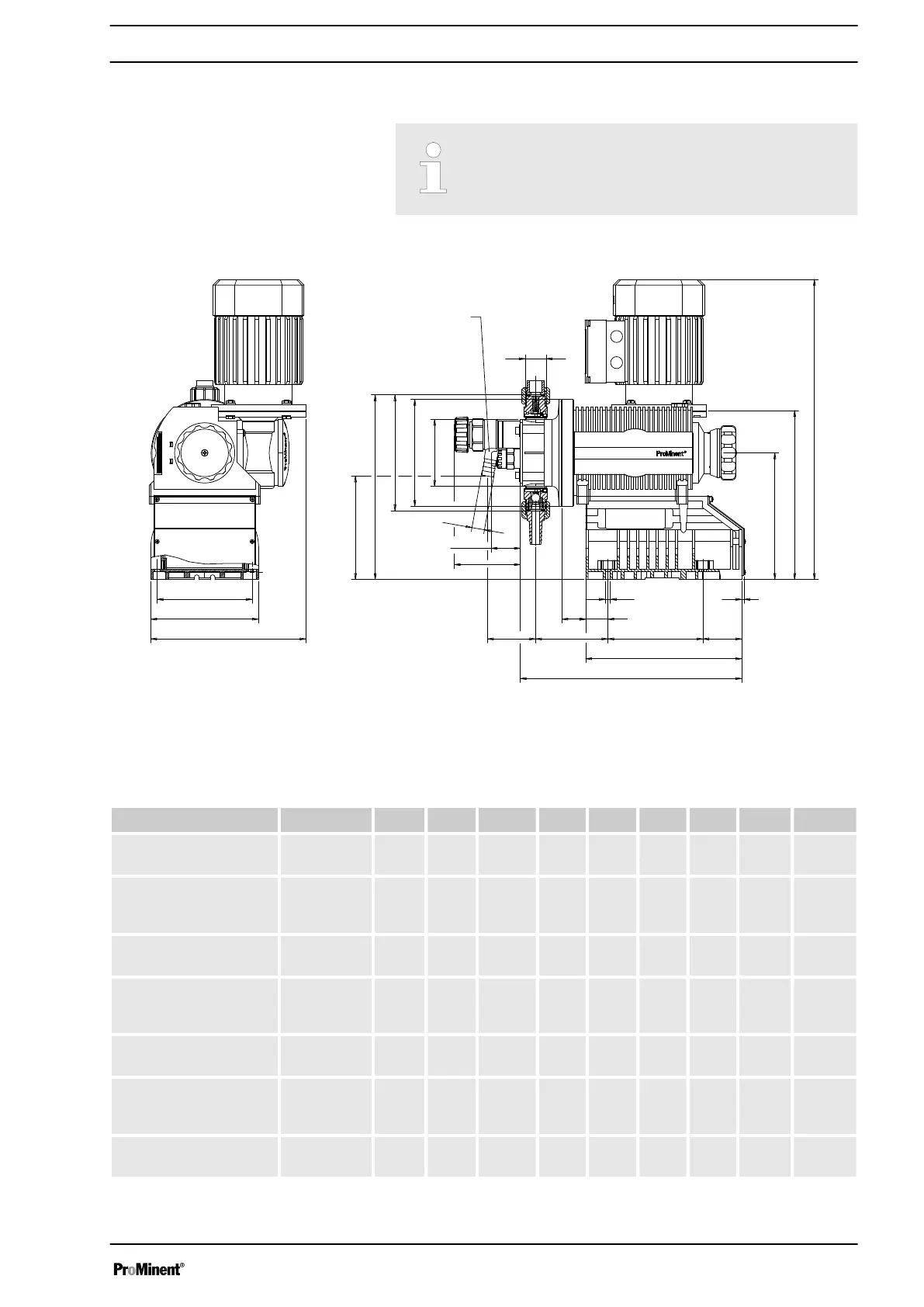

Fig. 27: Dimensional drawing of Sigma/ 1, S1Ba - Drawing is not strictly binding.
* Hose nozzle relief valve d16 S with thread DIN ISO
228-G3/4 A
Tab. 4: Dimensions in mm
Type Connector A B C D E F G I K
Sigma 12017,12035,
10050 PVT
DN10 233 147 G 3/4 A 91 277 - 96 - -
Sigma 12017,12035,
10050 PVT-relief valve-
A/sv-a
DN10 233 147 G 3/4 A 91 280 84 96 131 61
Sigma 12017,12035,
10050 SST
DN10 231 142 G 3/4 A 91 275 - 105 - -
Sigma 12017,12035,
10050 SST-relief valve-
A/sv-a
DN10 231 142 G 3/4 A 91 275 88 105 100 45
Sigma 10022, 10044,
07065 PVT
DN10 233 147 G 3/4 A 91 277 - 96 - -
Sigma 10022, 10044,
07065 PVT-relief valve-
A/sv-a
DN10 233 147 G 3/4 A 91 280 84 96 131 61
Sigma 10022, 10044,
07065 SST
DN10 231 142 G 3/4 A 91 275 - 105 - -
Dimensional drawing for Sigma/ 1, S1Ba
Dimensional drawings
69
