20 Exploded drawings Sigma/ 1
P_SI_0024
1
5
4
5
6
2
3

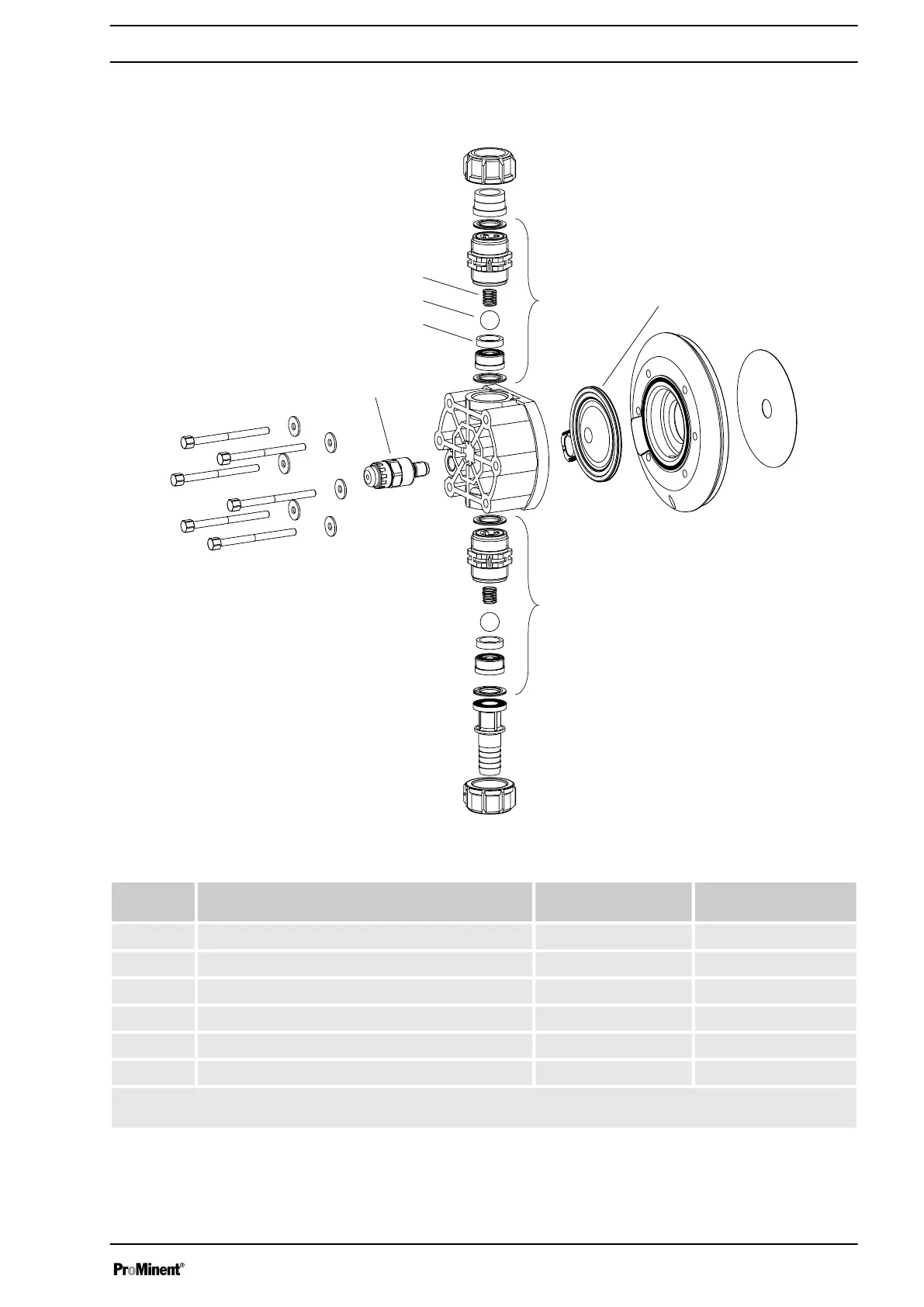

Fig. 32: Liquid end Sigma/ 1 050 and 065 PVT
Pos. Description Type 12035, 12017,
10050
Type 07065, 10044,
10022
1 Spring ** **
2 Ball * *
3 Ball seat - -
4 Diaphragm rupture sensor, visual 1033323 1033323
5 Valve 1002267* 1002267*
6 Multi-layer diaphragm 1030114* 1030115*
* The items listed are included in the spare parts kit. ** Special accessories (not included in the spare parts kit). Tech‐
nical changes reserved.
Liquid end Sigma/ 1 050 and 065 PVT
Exploded drawings Sigma/ 1
77
