Promise Technology Vess A6600 Quick Start Guide

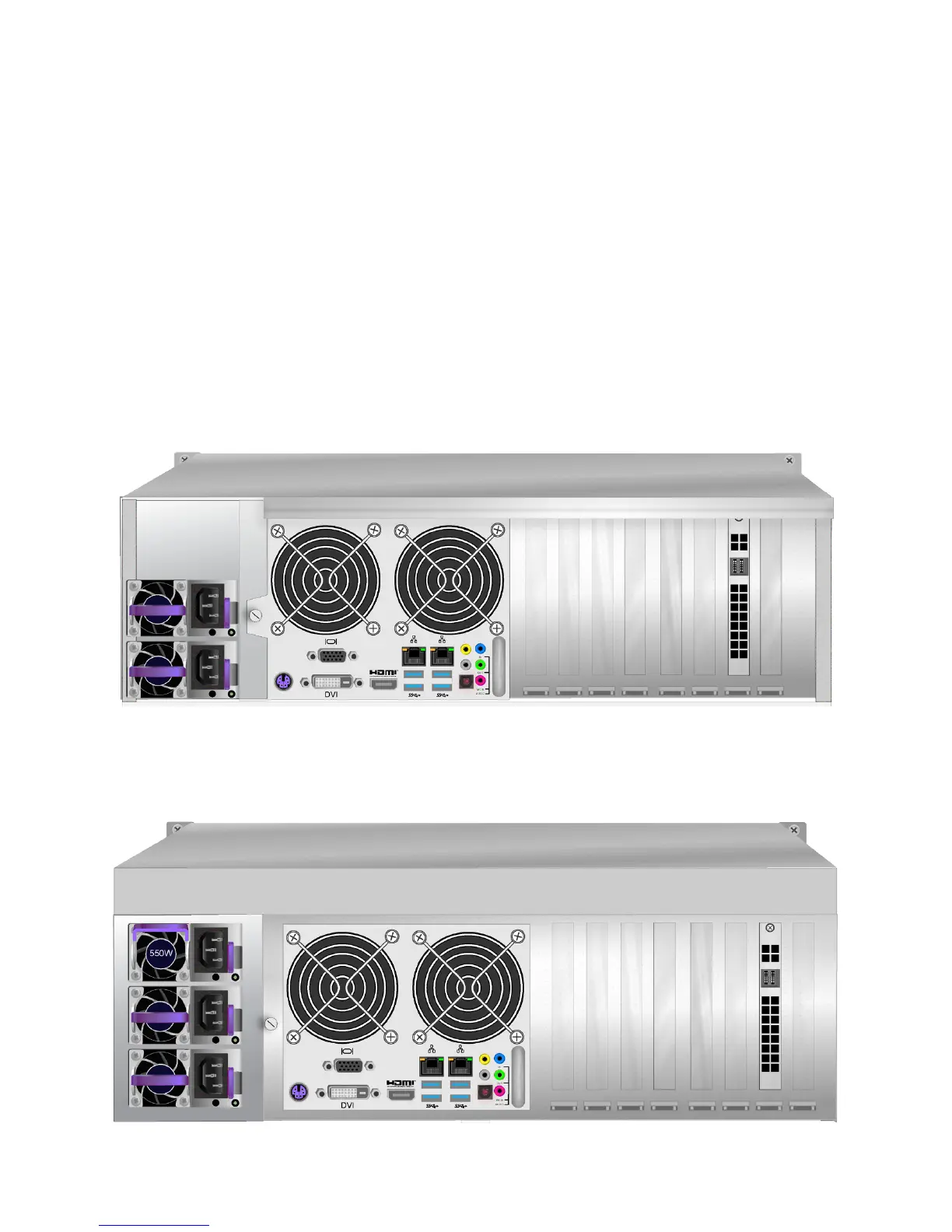

Vess A6600 rear view
Vess A6800 rear view
Vess A6600 / Vess A6800 Rear Panel Overview
The rear panel hardware components on the Vess A6800 are nearly the same as the
Vess A6600. This is where you connect power cables, I/O connections, audio out/
in, video (VGA), USB ports, and SAS port Backend Controller card. Both enclosures
include PCIe slots for adding additional hardware such as an RS-232 console port
(available for purchase from Promise). See the Product Manual for details about what
PCIe components are supported.
Please see more detailed close-up view of power supplies and controller components
in the illustration on the next page.
6
Promise Technology Quick Start Guide

Promise Technology Vess A6600 Specifications

General

Brand	Promise Technology
Model	Vess A6600
Category	Security System
Language	English
