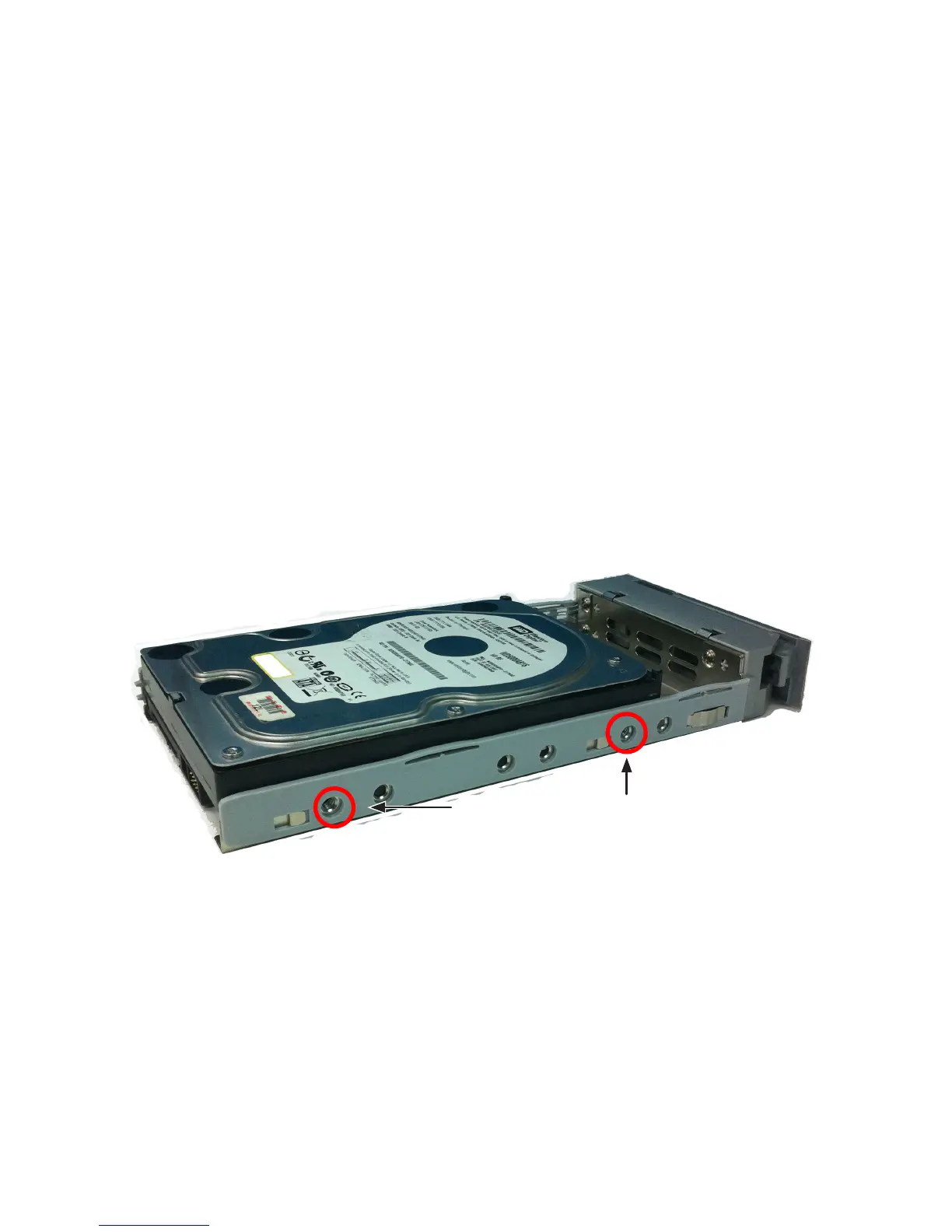

SATA disk drive mounted in a drive carrier
Counter-sink screws
(two screws on each side)
Installing 3.5” Disk Drive in the Carrier
The instructions below apply 3.5” hard disk drives installed in drive carriers intended
for use with models Vess A6600, Vess A7600, Vess A6800 and Vess A7800.
1. Remove a disk drive carrier.
2. Carefully lay the disk drive into the drive carrier at the front, so that the screw
holes on the sides line up correctly with the power and data connectors facing
away from the carrier handle.
3. Insert the screws through the holes in the drive carrier and into the sides of
the disk drive.
Install only the counter-sink screws supplied with the drive.
• Install four screws per drive.
• Snug each screw. Be careful not to over-tighten.
4. Reinstall the drive carrier into the enclosure.
Repeat steps 1 through 3 until all of your disk drives are installed.
19
