Promise Technology Vess A6600 Quick Start Guide

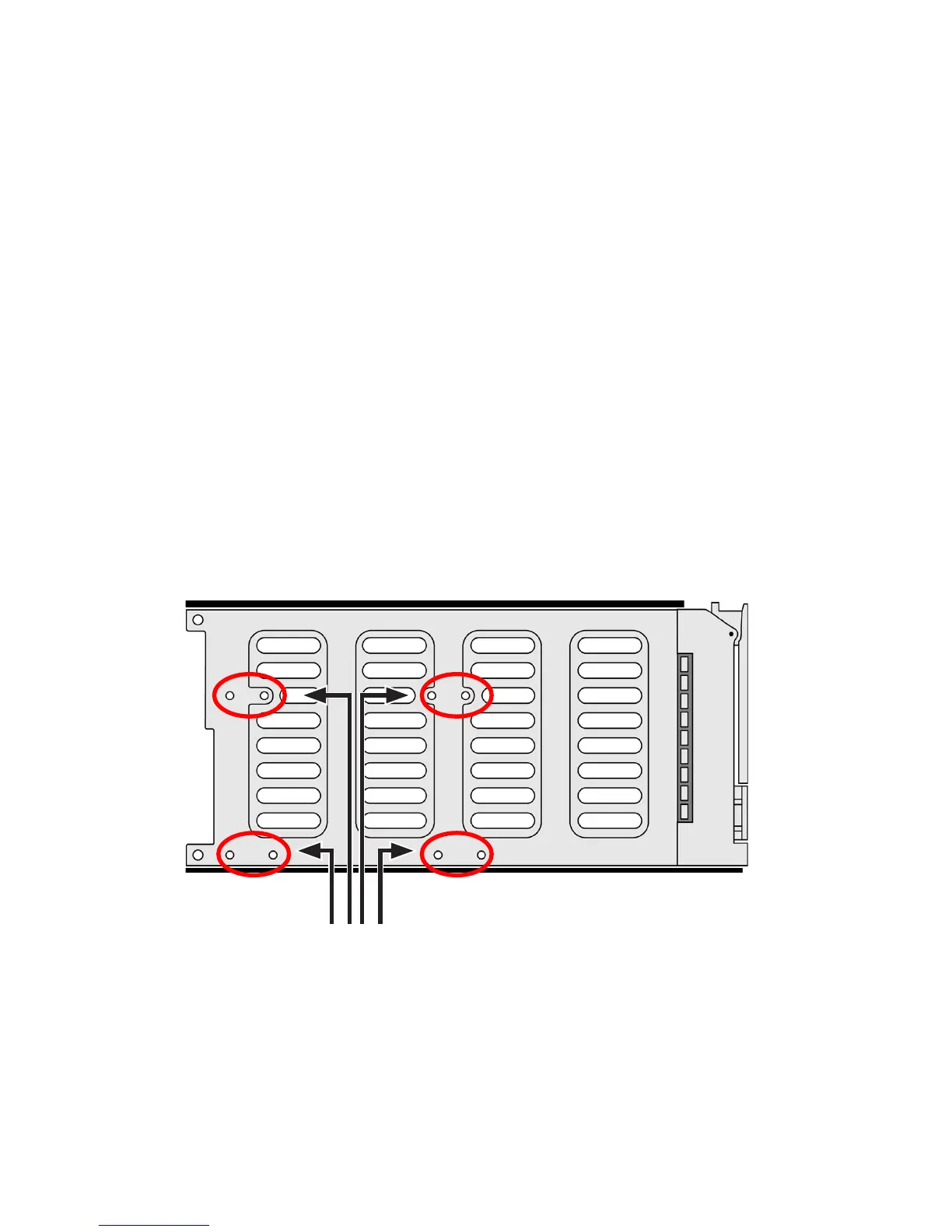

Use these holes on the bottom for mounting
2.5” hard disk drives. Four screw holes on
the bottom of the drive will line up with four of
the holes on the carrier.
Boom view of empty disk carrier
Installing 2.5” Disk Drive in the Carrier
The instructions below apply 2.5” hard disk drives installed in drive carriers intended
for use with models Vess A6600, Vess A7600, Vess A6800 and Vess A7800.
1. Remove a disk drive carrier.
2. Carefully lay the disk drive into the drive carrier at the front, so that the screw
holes on the bottom of the carrier line up correctly with the power and data
connectors facing away from the carrier handle.
3. Insert the screws through the holes on the bottom of the drive carrier and into
the bottom of the disk drive.
Install only the counter-sink screws supplied with the drive.
• Install four screws per drive.
• Snug each screw. Be careful not to over-tighten.
4. Reinstall the drive carrier into the enclosure.
Repeat steps 1 through 3 until all of your disk drives are installed.
20
