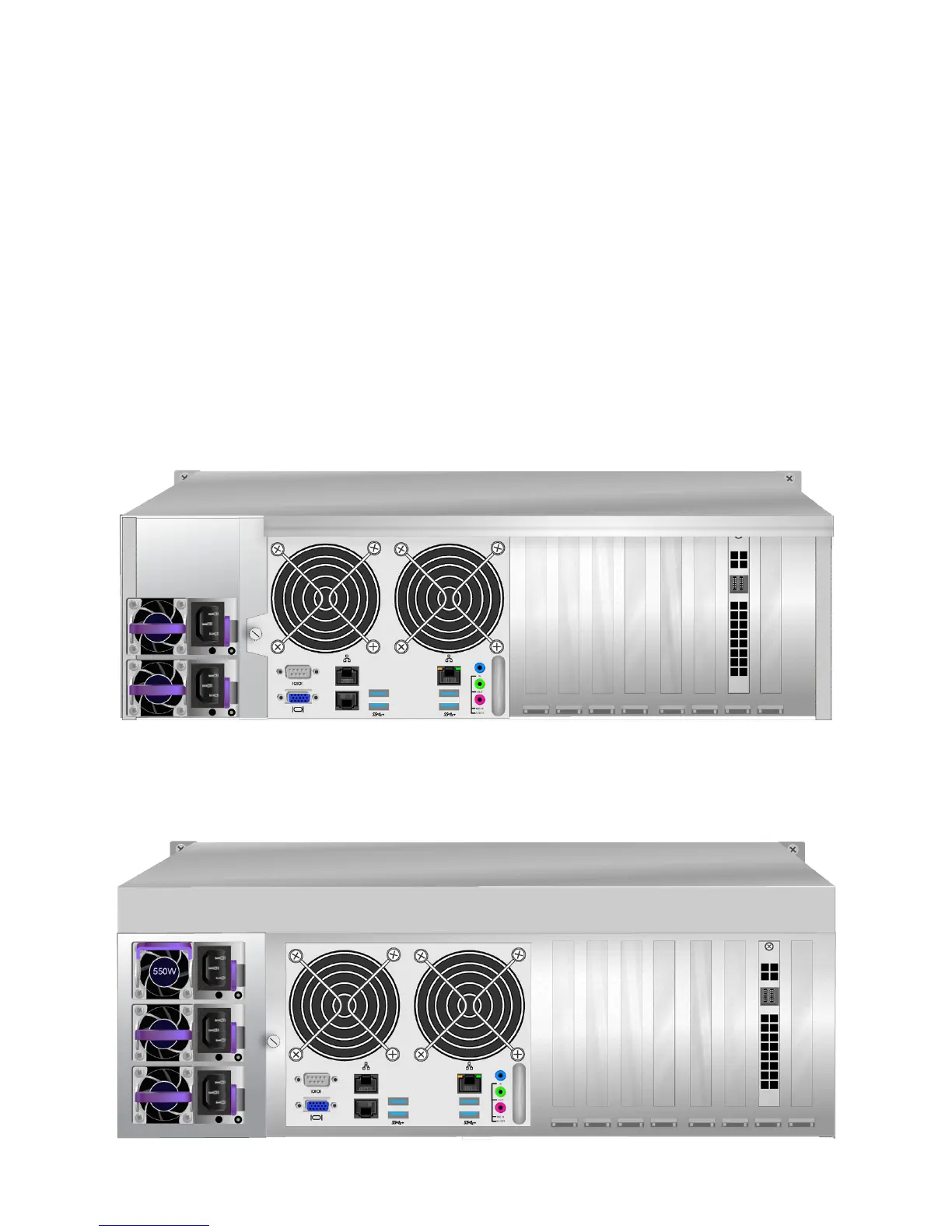

Vess A7800 rear view
Vess A7600 rear view
Rear Panel
Vess A7600 / Vess A7800 Rear Panel Overview
The rear panel hardware components on the Vess A7800 are nearly the same as the
Vess A7600. This is where you connect power cables, I/O connections, IPMI port,
audio out/in, video (VGA), USB serial ports, COM1 (serial port) and SAS port Backend
Controller card. Both enclosures include PCIe slots for added system versatility. See
the Product Manual for details about what PCIe components are supported.
Please see more detailed close-up view of power supplies and controller components
in the illustration on the next page.
