MVI56-MCM ♦ ControlLogix Platform Reference
Modbus Communication Module
Page 144 of 159 ProSoft Technology, Inc.
July 24, 2008

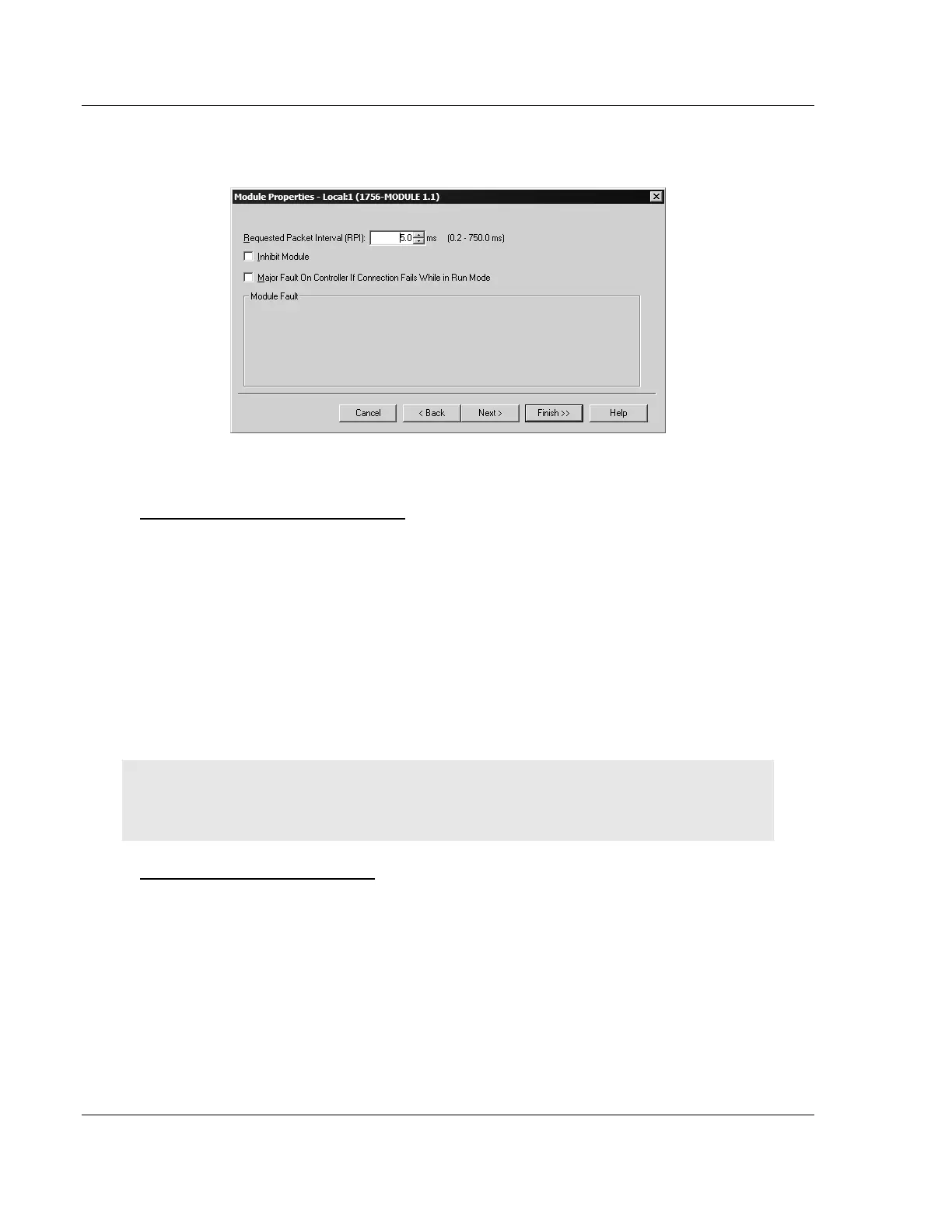

4 Click the Next button and set the Request Packet Interval to 5.0ms as shown
in the following illustration.
5 Click Finish to save the module into your existing application.
Copy the User Defined Data Types
The next step is to copy the User Defined Data Types from the sample program
to your existing program. These data types contain configuration information,
status, commands and other functions used by the program.
1 Arrange the two RSLogix 5000 windows on your desktop so that they are
side-by-side.
2 In the Controller Organization pane in the Sample Program, expand the Data
Types folder until the list of User-Defined data types is visible.
3 In the Sample Program window, select one data type at a time, and then drag
the data type to the User-Defined data types folder in your existing program.
4 Repeat these steps until you have copied all of the data types from the
sample program into your existing application.
Note: Data types prefixed with an underscore [_] are used in optional routines, and need not be
copied unless your application requires them. Refer to MVI56-MCM User Defined Data Types for a
description of the usage for each data type.
Copy the Sample Ladder Logic
1 The next step is to copy the Sample Ladder Logic from the sample program
to your existing program.
