Q80S_2014 10
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
8K2
12Vdc
24Vac
24Vdc
+AC
+AC
+AC -0AC
12Vdc
24Vdc
24Vca
- 0AC
- 0AC
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF36
8K2
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
12Vdc
24Vac
24Vdc
+AC
+AC
+AC -0AC
12Vdc
24Vdc
24Vca
- 0AC
- 0AC
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF36
8K2
8K2
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

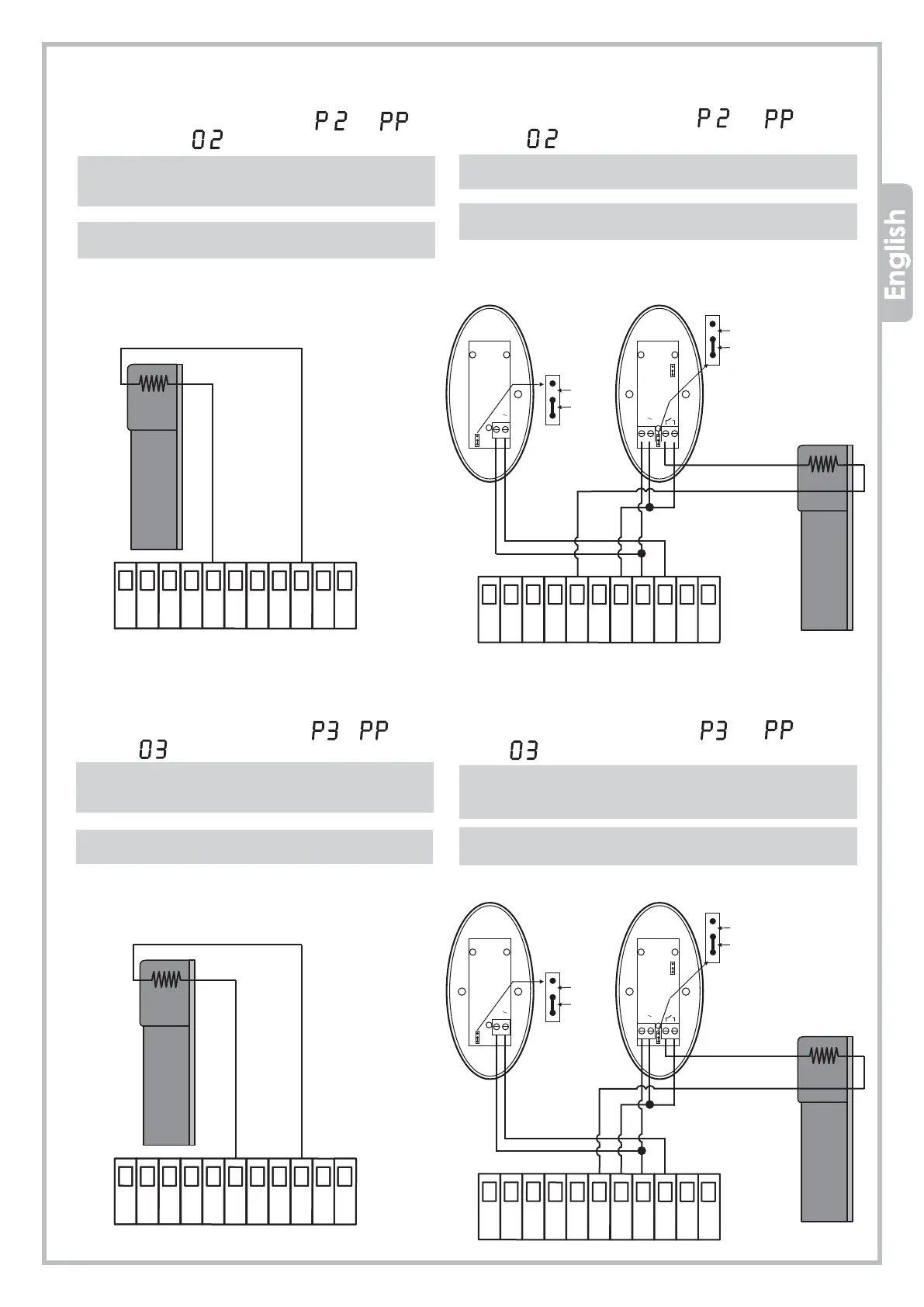

3.7.3 CLOSING SAFETY EDGE 8K2 type
Wire the CLOSING SAFETY EDGE 8K2 to terminals
5 - 9 on JP5 terminal block.
• If the safety edge meet any obstacle while the
gate is CLOSING, the automation STOPS and
REVERSES.
• An obstacle detected by the safety edge while the
gate is OPENING does not cause any effect.
SAFETY EDGE 8K2 + PHOTOCELLS
Wire the 8K2 safety edge in series to the receiver photocell
(N.C. contact)
• If the safety edge meet any obstacle while the gate is
CLOSING, the automation STOPS and REVERSES.
• An obstacle detected by the safety edge while the
gate is OPENING does not cause any effect.
3.7.4 OPENING Safety Edge 8K2 type
Wire the OPENING SAFETY EDGE 8K2 to terminals
6 - 9 on JP5 terminal block.
Please make sure that parameter in menu
is set on .
• If the safety edge meet any obstacle while the
gate is OPENING, the automation STOPS and
REVERSES for about 3 seconds.
• An obstacle detected by the safety edge while the
gate is CLOSING does not cause any effect.
SAFETY EDGE 8K2 + PHOTOCELLS
Wire the 8K2 safety edge in series to the receiver photocell
(N.C. contact)
Please make sure that parameter in menu is
set on .
• If the safety edge meet any obstacle while the gate is
OPENING, the automation STOPS and REVERSES for
about 3 seconds.
• An obstacle detected by the safety edge while the gate
is CLOSING does not cause any effect.
Please make sure that parameter in
menu is set on .
Please make sure that parameter in menu
is set on .
