Proteco Q80S User Manual

9 Q80S_2014
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
N.C.
12Vdc
24Vac
24Vdc
 
+AC
+AC
+AC -0AC
12Vdc
24Vdc
24Vca
- 0AC
- 0AC
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF36
N.C.
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
12Vdc
24Vac
24Vdc
 
+AC
+AC
+AC -0AC
12Vdc
24Vdc
24Vca
- 0AC
- 0AC
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF36
N.C.
N.C.
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

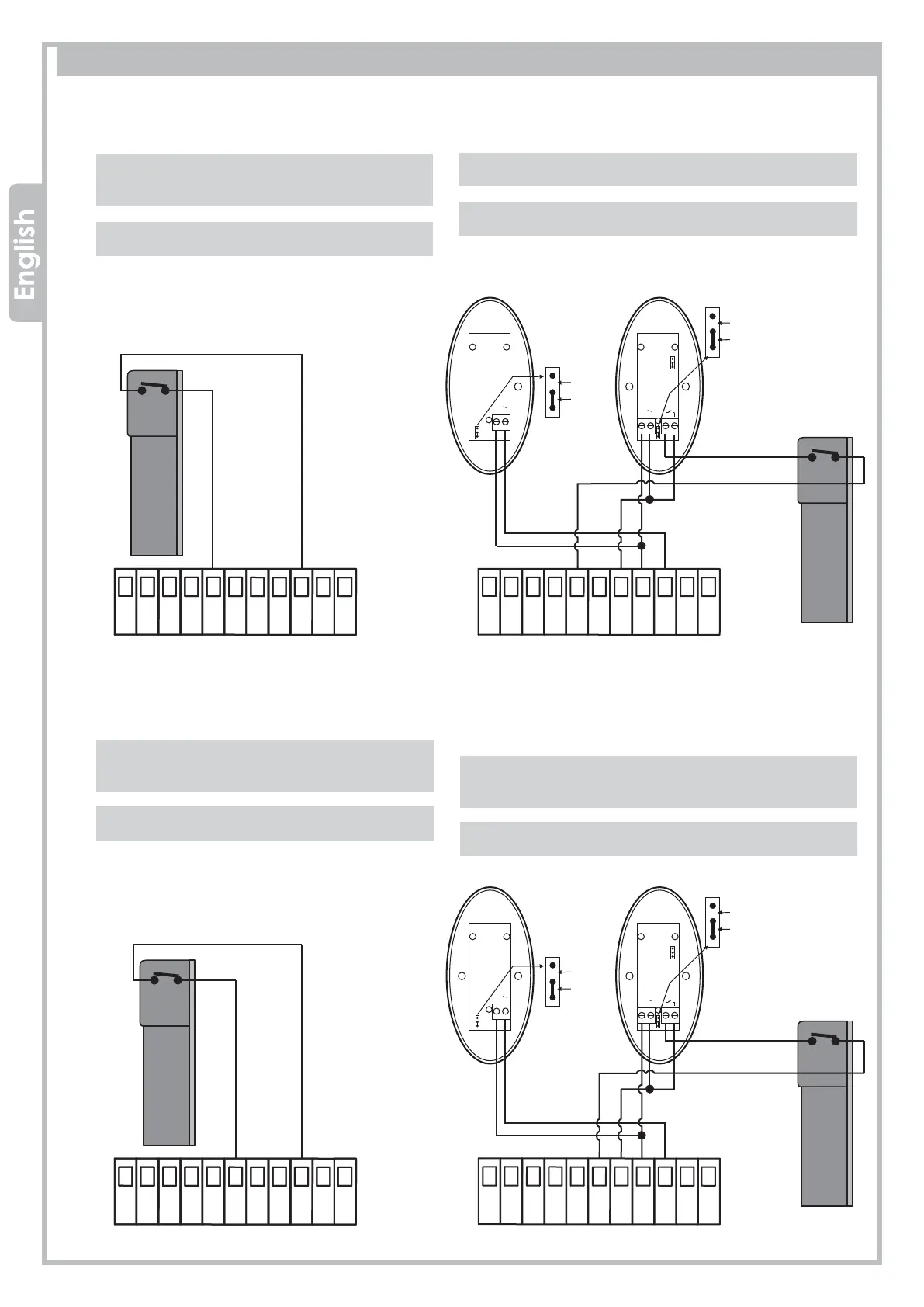

3.7.1 CLOSING (Mechanical) Safety Edge
Wire the CLOSING SAFETY EDGE to terminals 5 - 9
on JP5 terminal block.
• If the safety edge meet any obstacle while
the gate is CLOSING, the automation STOPS
and REVERSES.
• An obstacle detected by the safety edge while
the gate is OPENING does not cause any effect.
3.7 SAFETY EDGE wiring
3.7.2 OPENING (Mechanical) Safety Edge
Wire the OPENING SAFETY EDGE to terminals 6 - 9
on JP5 terminal block.
• If the safety edge meet any obstacle while the
gate is OPENING, the automation STOPS and
REVERSES for about 3 seconds.
• An obstacle detected by the safety edge while
the gate is CLOSING does not cause any effect.
• If the safety edge meet any obstacle while the gate is
CLOSING, the automation STOPS and REVERSES.
• An obstacle detected by the safety edge while the gate is
OPENING does not cause any effect.
• If the safety edge meet any obstacle while the gate is
OPENING, the automation STOPS and REVERSES for
about 3 seconds.
• An obstacle detected by the safety edge while the gate is
CLOSING does not cause any effect.
(Mechanical) SAFETY EDGE + PHOTOCELLS
Wire the (Mechanical) SAFETY EDGE in series to the recei-
ver photocell (N.C. contact)
(Mechanical) SAFETY EDGE + PHOTOCELLS
Wire the (Mechanical) SAFETY EDGE in series to the receiver
photocell (N.C. contact)
