15 16 17
JP7
Q80S_2014 6
12 13 14
JP8
JP7
JP8
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net
Brown
Grey-Blue
Brown
Black
Whit
CAPACITOR

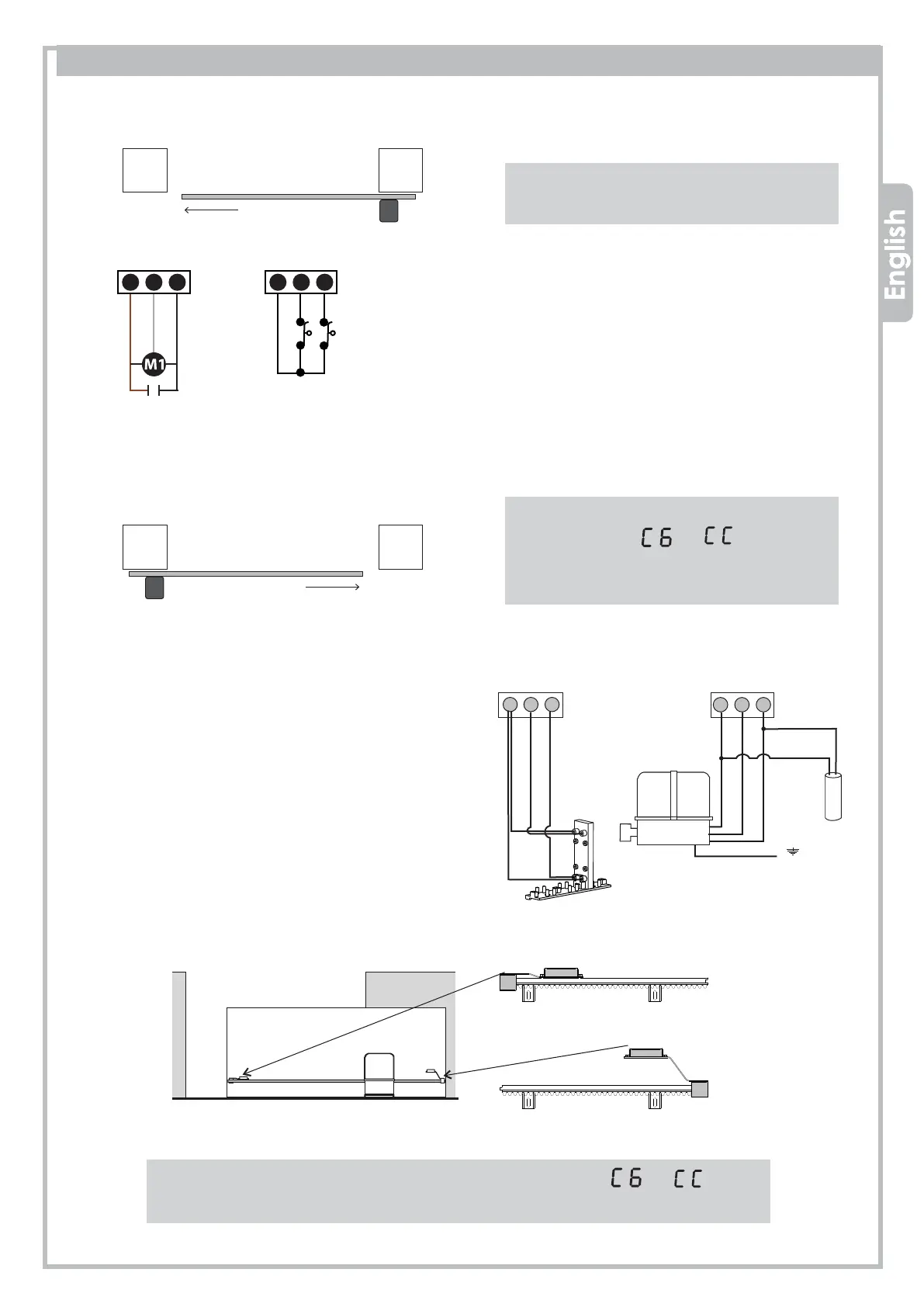

3.1 MOTORS wiring
Please check motor wirings according to the gate opening direction
Gate opening from left to RIGHT (viw from inside courtyard)
Black
FC OPEN
NEUTRAL
FC CLOSING
Gate opening from right to LEFT (view from isnide property)
The control unit is pre-set for gate opening
from left to right (looking from inside the
courtyard as shown in the drawing).
In case of gate opening from right to left please
adjust parameter in accordingly
to 01 (see page 16).
OUTSIDE
INSIDE
OUTSIDE
INSIDE
Right
gear motor
Left
gear motor
3.1.1 WIRING SCHEME FOR MOTOR ON THE RIGHT SIDE
AND GATE CLOSING LEFT (inside view)
ONLY FOR MOTORS WITH MAGNETIC LIMIT
SWITCHES
EFT SIDE of the gate (opening function)
LOW bracket for magnetic limit on the
RIGHT SIDE of the gate (closing function)
HIGH bracket for magnetic limit on the
MAGNETIC LIMIT SWITCHES FIXING
(inside view)
In case of gate opening from right to left please adjust parameter in
accordingly to 01 (see page 16).
