Proteco Q80S User Manual

12Vdc
24Vac
24Vdc
 
+AC
+AC
+AC -0AC
12Vdc
24Vdc
24Vca
- 0AC
- 0AC
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF36
12Vdc
24Vac
24Vdc
 
+AC
+AC
+AC -0AC
12Vdc
24Vdc
24Vca
- 0AC
- 0AC
JP4 JP5 JP6
1 2 3 4 5 6 7 8 9 10 11
RF36
JP4
JP5
JP6
1 2 3 4 5 6 7 8 9 10 11
Q80S_2014 8
PROTECO S.r.l.
Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

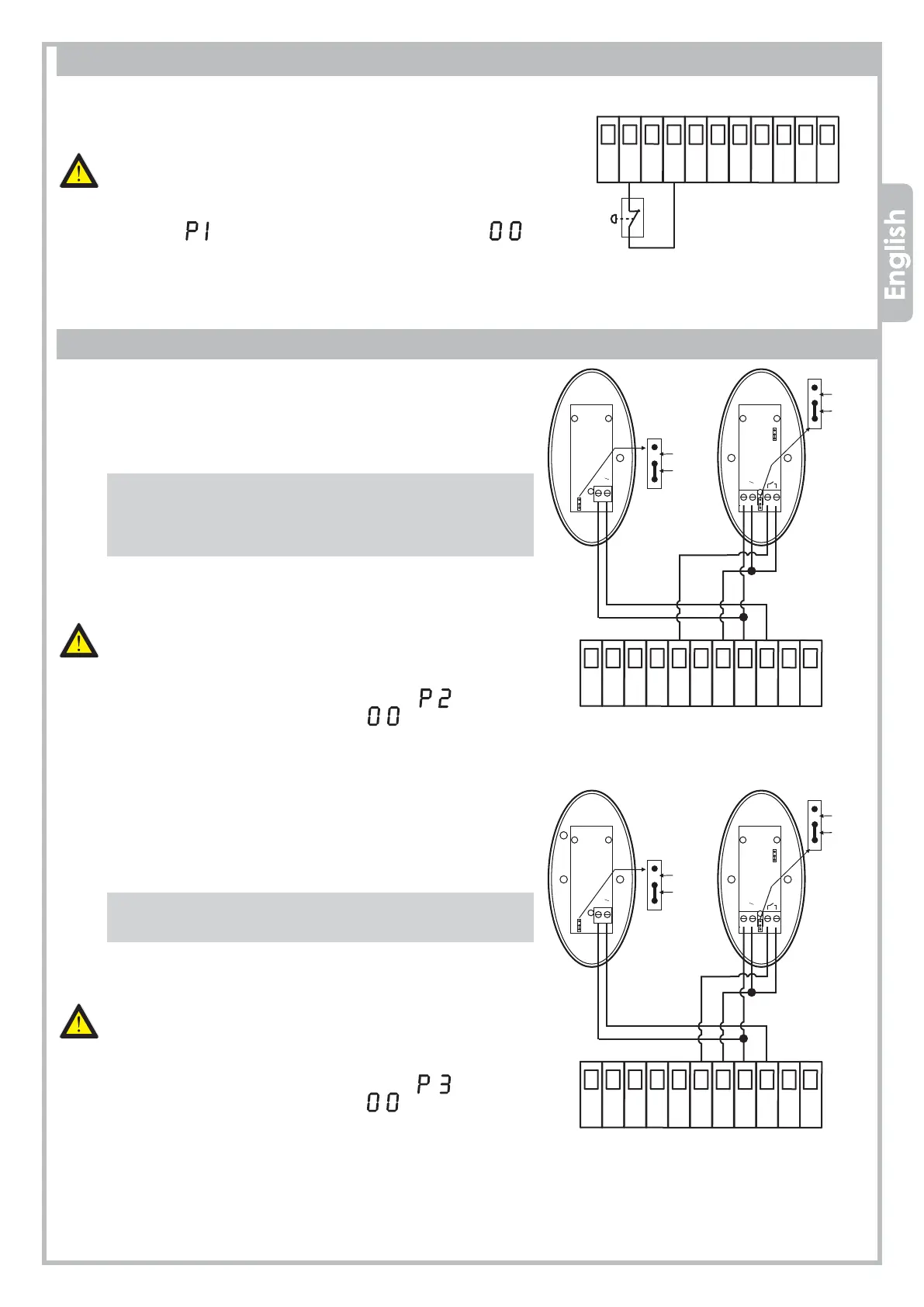

3.6 PHOTOCELLS wiring
3.6.1 CLOSING Photocells
Power the CLOSING PHOTOCELLS wiring them to terminals
7 - 8 - 9 on JP5 terminal block.
Wire the N.C. contact of the photocells to terminals 5 - 7 on JP5
terminal block.
The closing photocells will behave as follows:
• If an obstacle interrupts the photocell beam when the
gate is closing, the automation STOPS and REVERSES in
about 1.5 seconds.
• An obstacle detected by the photocells when the gate is
OPENING does not cause any effect.
Additional sets of CLOSING PHOTOCELLS can be wired in series
(N.C. contact).
For safety reasons al least one set of photocells must be installed
to protect the CLOSING area of the gate.
Note: Should you need to temporary exclude the CLOSING
PHOTOCELLS connections, please set parameter
in the ACCESSORIES menu to =DISABLED.
3.6.2 OPENING Photocells
Power the OPENING PHOTOCELLS wiring them to terminals
7 - 8 - 9 on JP5 terminal block.
Wire the N.C. contact of the photocells to terminals 6 - 7 on
JP5 terminal block.
The opening photocells will behave as follows:
• If an obstacle interrupts the photocell beam when gate is
opening, the automation STOPS and REVERSES in about
3 seconds.
Additional sets of OPENING PHOTOCELLS can be wired in series
(N.C. contact).
For safety reasons al least one set of photocells must be installed
to protect the OPENING area of the gate.
Note: Should you need to temporary exclude the OPENING
PHOTOCELLS connections, please set parameter
in the ACCESSORIES menu to =DISABLED.
3.5 STOP push-button wiring
Wire the STOP push-button to 2 and 4 terminals on JP4 terminal block.
Additional STOP controls/push-buttons can be wired in parallel (N.C. contact)
The wiring of an emergency stop push-button is highly
recommended for the safety of people and objects.
Note: Should you need to temporary exclude the STOP connections, please
set parameter in the ACCESSORIES menu to =DISABLED.
