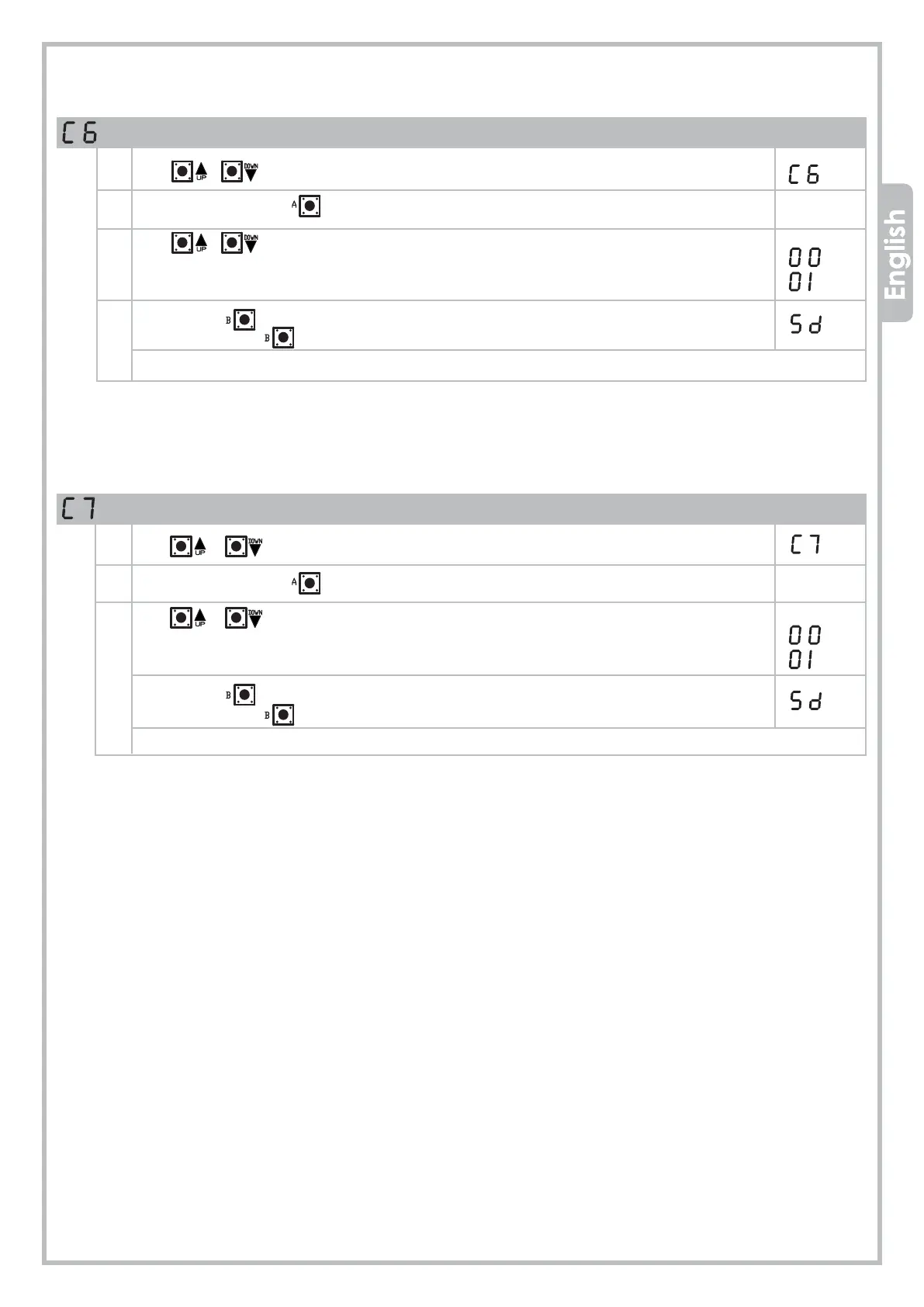

Opening direction of the motor can be changes as follows (paragraph 3.1)
1 Use buttons to move inside the menu, till the display shows:
2 Press and hold button for about 5 seconds.
3 Use buttons to select:
Gate opening from Left to Right (view from inside courtyard)
Gate opening from Right to Left (view from inside courtyard)
4 Press button to go back to the top level menus,
then press button again till the display shows:
or wait the timeout (20 seconds) to exit.
LIMIT SWICTHES mode
1 Use buttons to move inside the menu, till the display shows:
2 Press and hold button for about 5 seconds.
3 Use buttons to select:
Use with ELECTROMECHANICAL Limit Switches (N.C. contact)
Use with MAGNETIC Limit Switches (N.O. contact)
4 Press button to go back to the top level menus,
then press button again till the display shows:
or wait the timeout (20 seconds) to exit.
4.2.3 OPENING DIRECTION of the motor
The control unit is preset for use on gate opening from Left to Right:
4.2.4 LIMIT SWITCHES mode selecting
This control unit can be used with ELECTROMECHANICAL LIMIT SWITCHES (N.C. contact)
or with MAGNETIC LIMIT SWITCHES (N.O. contact)
