Page 11
Gate Preparation
The gate must be plumb, level and swing freely on its hinges. The Kit Simply is designed to move the weight of
the gate only. If hinges are stiff, loosen with lubricating oil. The gate must be able to move throughout its arc
without binding or dragging on the ground. The pillars / posts must be secured into the ground with concrete
so it will minimise twist or flex when the gate opener is activated. We recommend you position the opener
near the centreline of the gate. The addition of a horizontal or vertical cross support (if one is not already in
place) to provide a stable area for mounting the gate bracket is also important.
Installation Overview

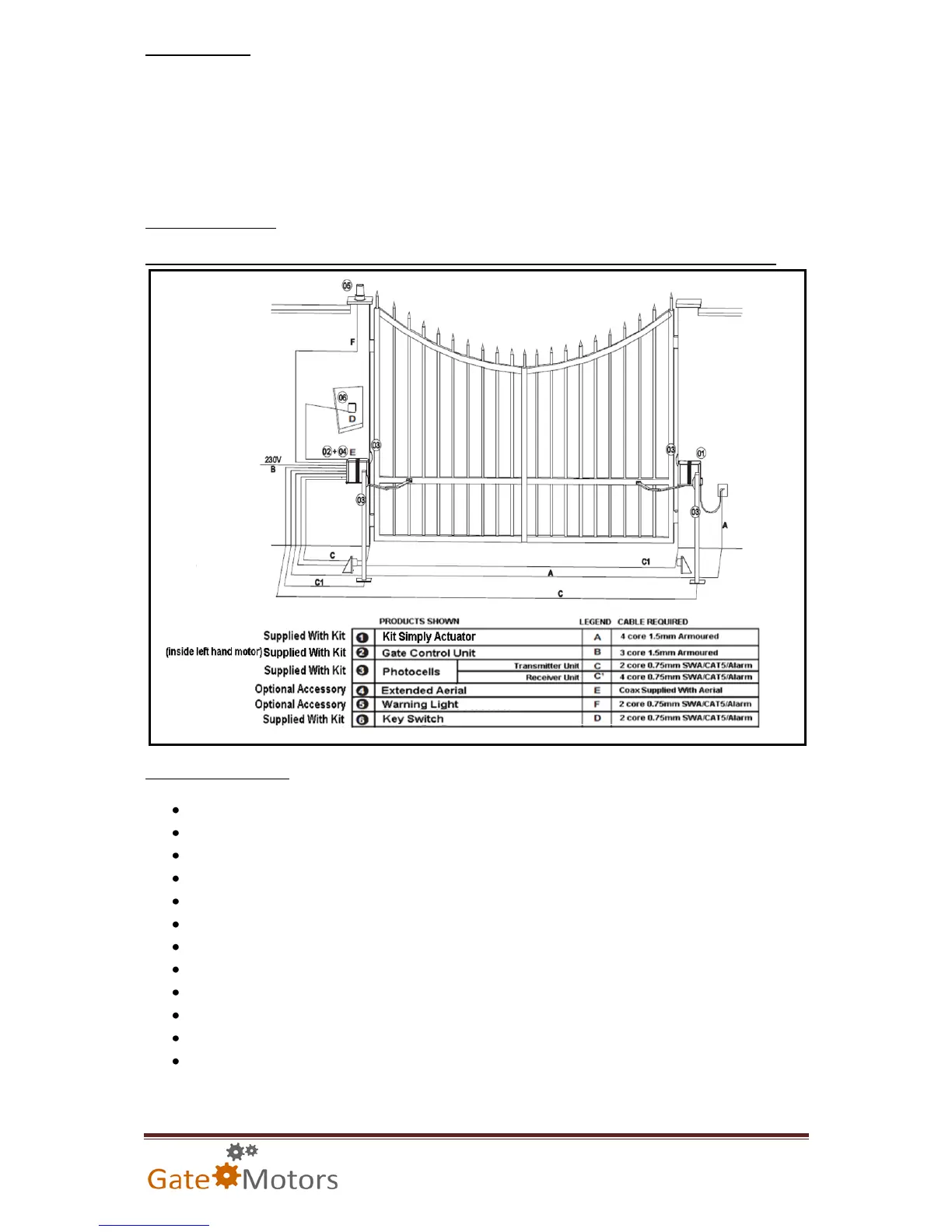

The diagram shown below is an example of a typical installation on a double leaf gate: Kit Simply 230v
Installation Sequence
Identify Which motor is left and right handed
Identify the fixing point on the gate
Identify the fixing point on the pillar
Install / affix the motor’s Anchor Plate on the pillar
Install / affix the motor to the Anchor Plate
Assemble the articulated galvanised arm
Install the articulated arm to the motor
Fixing articulated arm to the gate leaf
Release the motor gearing Including emergency release
Setting the limit switches for open and closed position
Re-lock motor gearing
Connect motor wiring to control board
