Page 15
Outward Opening Mounting

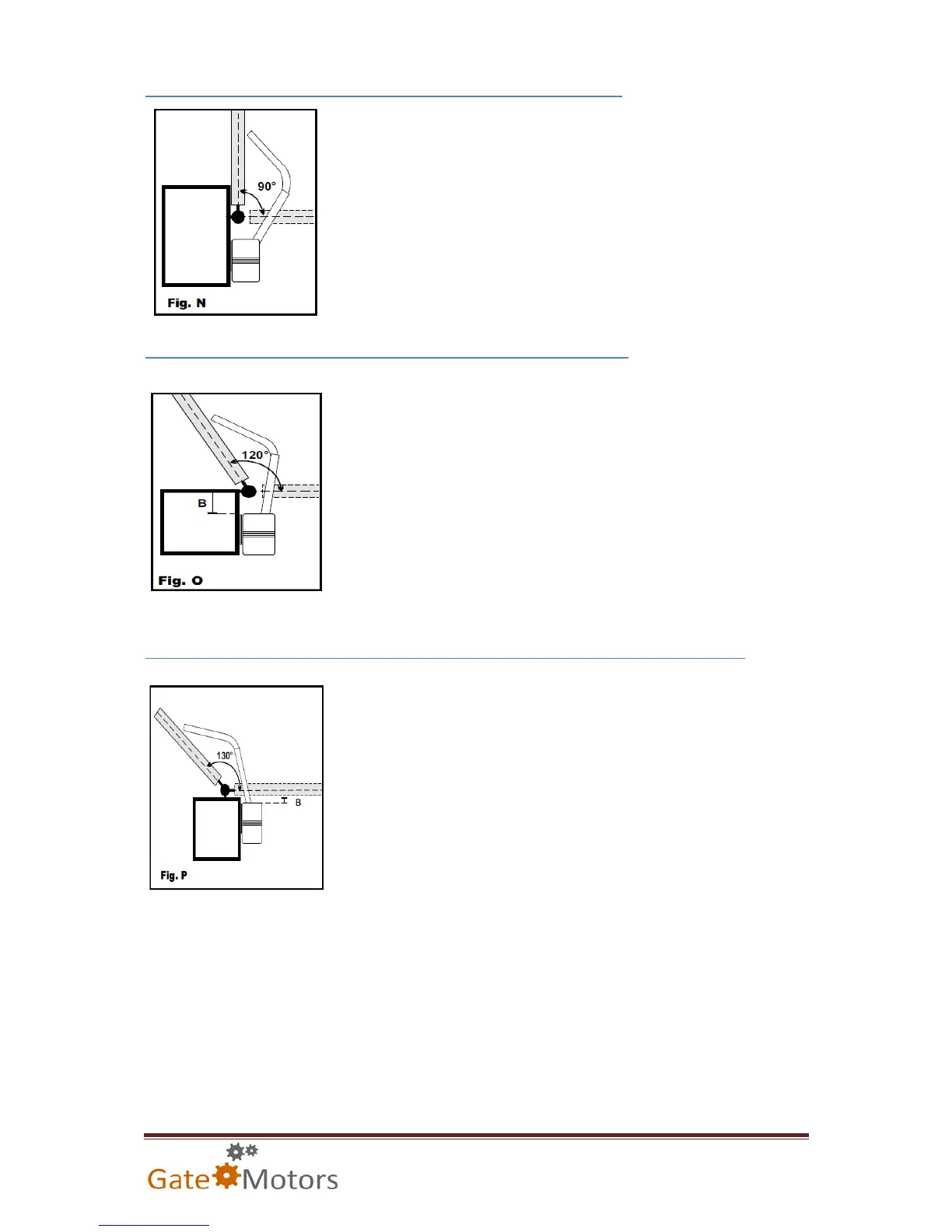

Identify the Fixing Point on the Pillar – Gate Hinged in the Centre
This is an arrangement where the hinge of the gate is on the centre of the pillar.
This gives the option of opening the gate to a maximum 90 degree angle as the
pillar will physically stop the gate from opening further (Fig. N).
NB: Dimension A & B do not apply. However, dimension D must still be
achieved.
Identify the Fixing Point on the Pillar – Gate Hinged on the Corner
This is an arrangement where the hinge of the gate is on the corner of the
pillar.
This gives the option of opening the gate to a maximum 120 degree angle as
the physical articulated arm will come into contact with the hinge and stop
the gate from opening further (Fig. O).
Dimension A = Zero
Dimension B = MAXIMUM 80mm. Further the motor is away from the
hinge, the less degree the gate will open.
Identify the Fixing Point on the Pillar – Gate Hinged on the Front Face of the Pillar
This is an arrangement normally seen on the back face of the pillar rather
than the front face. This type of is the exception to the rule as the opening
angle that can be achieved is 130 degrees (Fig. P).
Dimension A = Zero
Dimension B = MAXIMUM 30mm. Further the motor is away from the
hinge, the less degree the gate will open.
